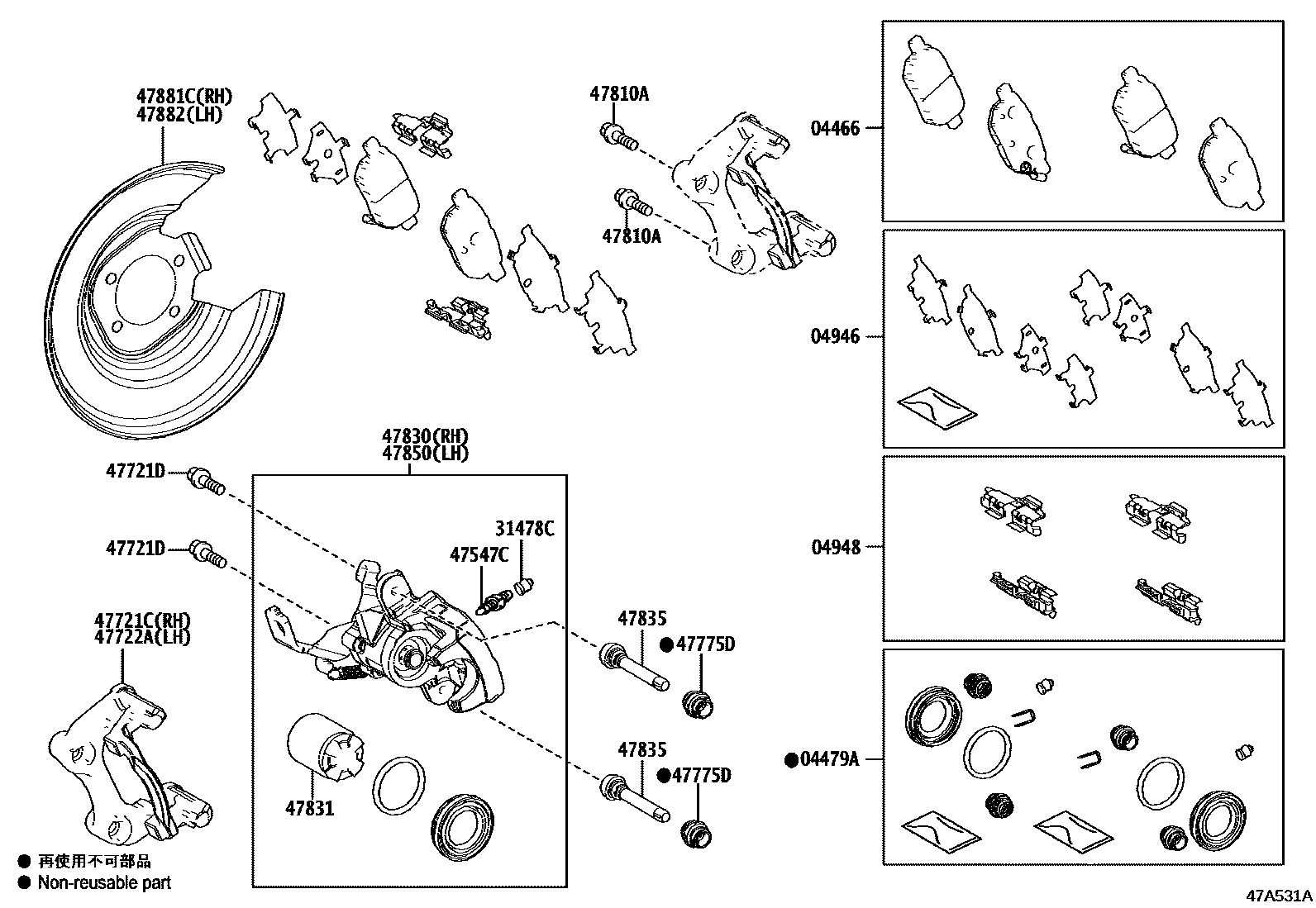

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47110iZVW52201609-201904

MARK NBK 478-XW5P

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12260iZVW52201609-201904

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47070iZVW52201609-201904

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iZVW52201609-201904

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZVW52201609-201904

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZVW52201609-201904

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-47110iZVW52201609-201904

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA102iZVW52201609-201904

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47110iZVW52201609-201904

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iZVW52201609-201904

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iZVW52201609-201904

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-47110iZVW52201609-201705

sub47830-47111

sub46423-47020

main47830-47111iZVW52201705-201904

47831PISTON, REAR DISC BRAKE

main47831-52050iZVW52201609-201904

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iZVW52201609-201904

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-47110iZVW52201609-201705

sub47850-47111

sub46423-47020

main47850-47111iZVW52201705-201904

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-47010iZVW52201609-201904

47882COVER, DISC BRAKE DUST, REAR LH

main47882-47010iZVW52201609-201904

17 parts on this diagram · 1 diagram in section
