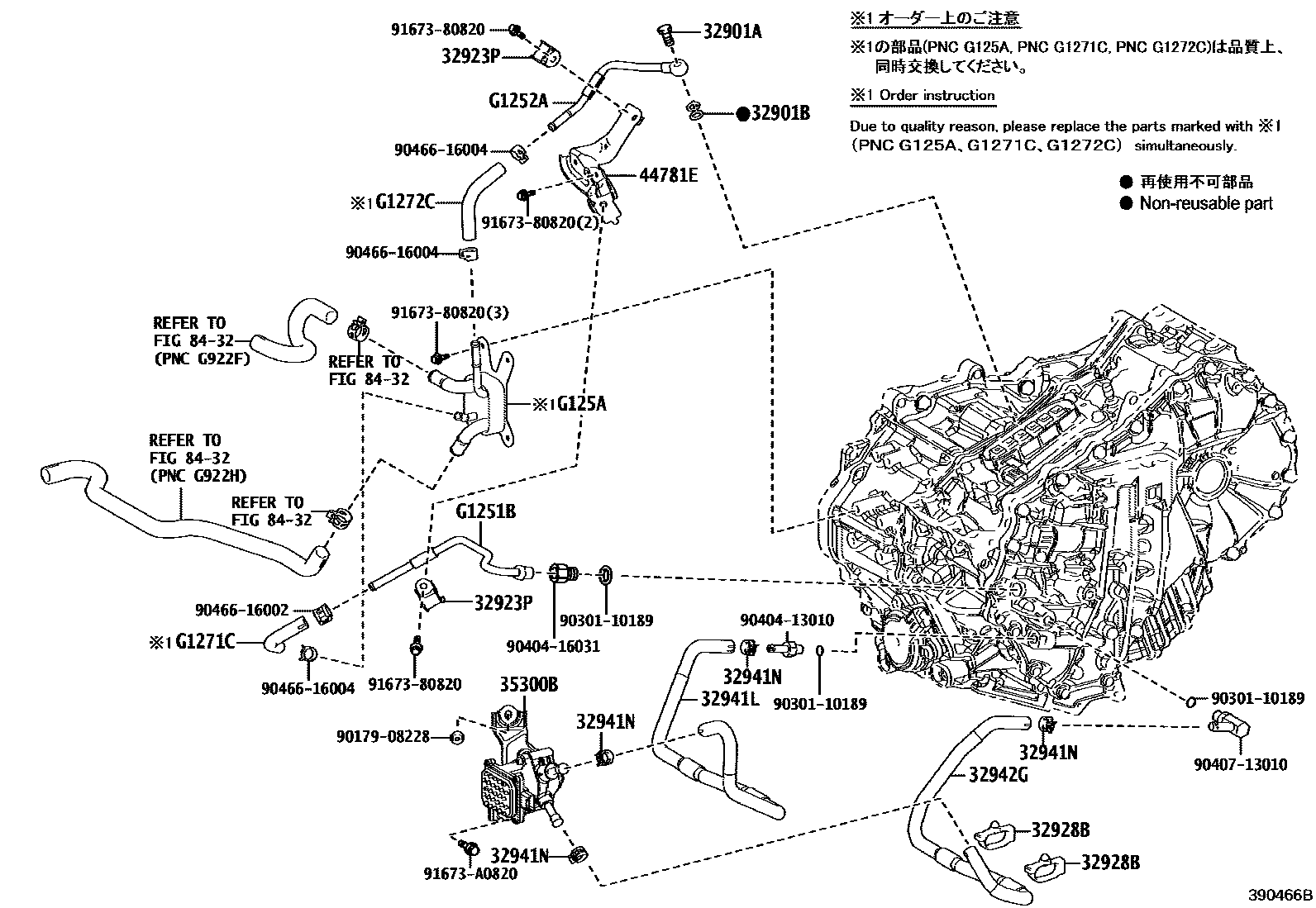

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iZVW52201609-201904

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iZVW52201609-201904

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-52040iZVW52201609-201904

32928BCLAMP, FLEXIBLE HOSE, NO.1

main32928-34030iZVW52201609-201904

32941LHOSE, OIL COOLER INLET, NO.1

main32941-47010iZVW52201609-201904

32941NCLIP, NO.1(FOR OIL COOLER HOSE)

main90466-16004iZVW52201609-201904

32942GHOSE, OIL COOLER OUTLET, NO.1

main32942-47010iZVW52201609-201904

35300BPUMP ASSY, OIL W/MOTOR

main35300-47010iZVW52201609-201904

44781EBRACKET, HOSE

main44781-47010iZVW52201609-201904

8432

G1251BPIPE, MOTOR COOLING, NO.1

mainG125147010iZVW52201609-201904

G1252APIPE, MOTOR COOLING, NO.2

mainG125247010iZVW52201609-201904

G125ACOOLER, MOTOR COOLING

mainG125A47010iZVW52201609-201904

G1271CHOSE, MOTOR COOLING, NO.1

mainG127147010iZVW52201609-201904

G1272CHOSE, MOTOR COOLING, NO.2

mainG127247010iZVW52201609-201904

9017908228

main90179-08228

9030110189

main90301-10189

9040413010

main90404-13010

9040416031

main90404-16031

9040713010

main90407-13010

9046616002

main90466-16002

9046616004

main90466-16004

9167380820

main91673-80820

91673A0820

main91673-A0820

24 parts on this diagram · 1 diagram in section
