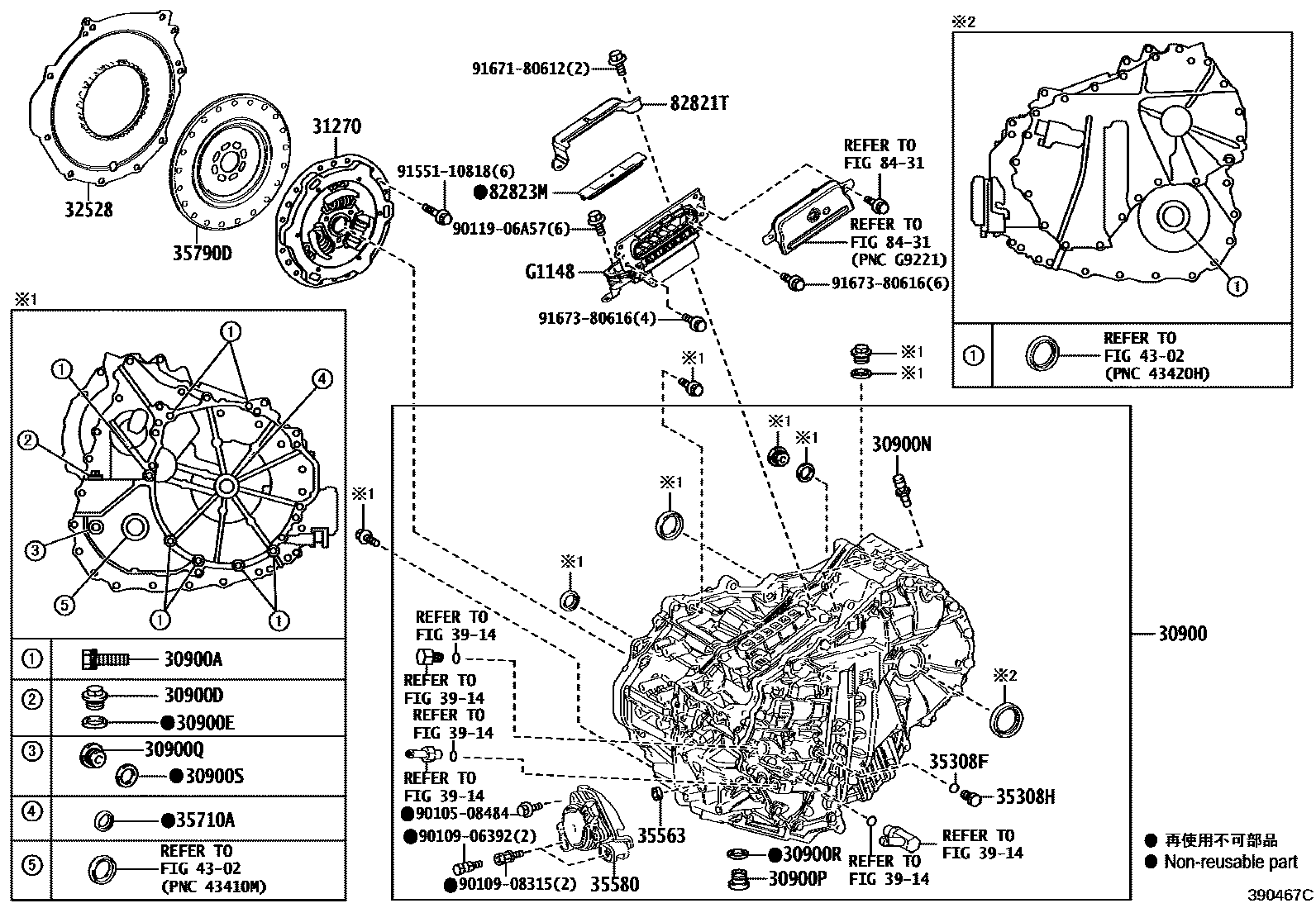

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-47120iZVW52201609-201904

sub30900-47240

30900ABOLT(FOR HYBRID VEHICLE TRANSAXLE & ENGINE SETTING)

main91612-61045iZVW52201609-201904

*10-1.25PX45-30

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iZVW52201609-201904

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZVW52201609-201904

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZVW52201609-201904

30900PPLUG, DRAIN(HEV)

main90341-18016iZVW52201609-201904

30900QPLUG, FILLER(HEV)

main90341-18016iZVW52201609-201904

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iZVW52201609-201904

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iZVW52201609-201904

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-47070iZVW52201609-201904

32528PLATE, 1 WAY CLUTCH HOLDING

main32528-47010iZVW52201609-201701

sub32528-47011

main32528-47011iZVW52201702-201904

35308FRING, O, NO.1 (FOR TRANSMISSION OIL PUMP COVER)

main90301-06196iZVW52201609-201904

35308HPLUG (FOR TRANSMISSION OIL PUMP COVER)

main90341-08001iZVW52201609-201904

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-47010iZVW52201609-201904

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-47040iZVW52201609-201904

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-25025iZVW52201609-201904

35790DCLUTCH ASSY, 1 WAY

main35790-47020iZVW52201609-201904

3914

4302

82821TCOVER, CONNECTOR

main82821-47240iZVW52201609-201904

82823MCAP, TERMINAL

main82823-47040iZVW52201609-201904

8431

G1148CABLE, MOTOR

mainG114847070iZVW52201609-201904

9010508484

main90105-08484

9010906392

main90109-06392

9010908315

main90109-08315

9011906A57

main90119-06A57

9155110818

main91551-10818

9167180612

main91671-80612

9167380616

main91673-80616

30 parts on this diagram · 1 diagram in section
