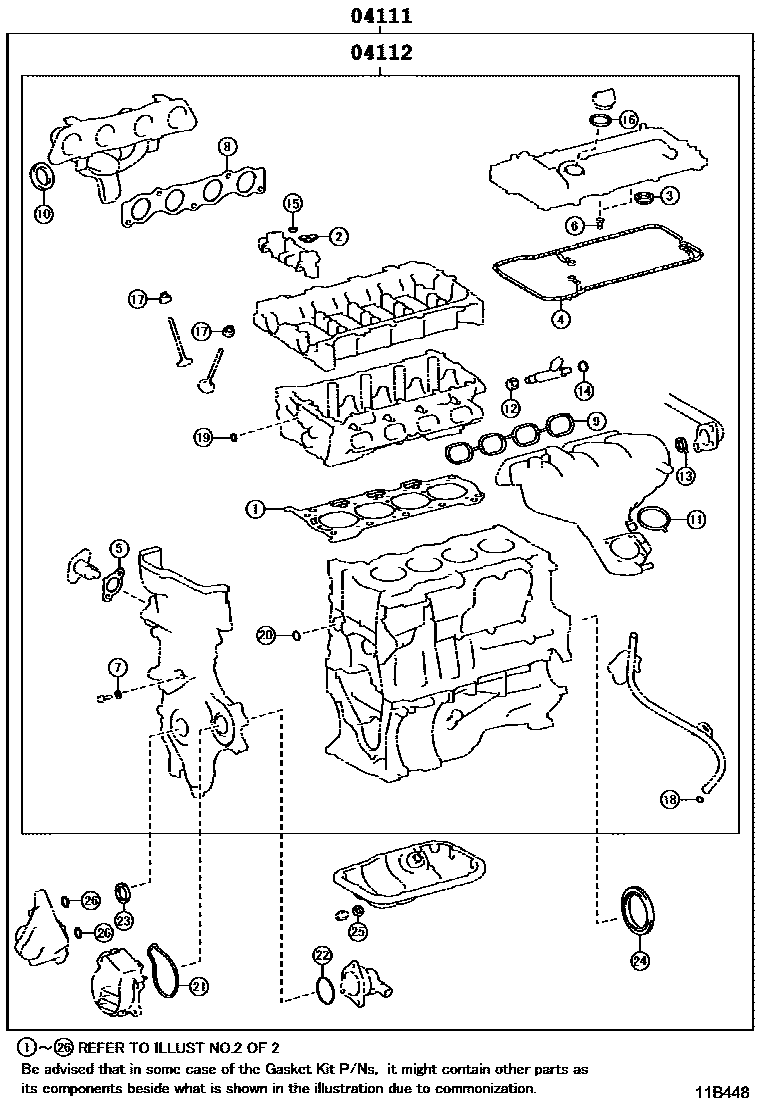

ENGINE OVERHAUL GASKET KIT

0001 1 0002 1

04111GASKET KIT, ENGINE OVERHAUL

main04111-37500i2ZRFXE..ZVW52201609-201803

sub04111-37501

main04111-37501i2ZRFXE..ZVW52201804-202109

sub04111-37502

main04111-37502i2ZRFXE..ZVW52202110

04112GASKET KIT, ENGINE VALVE GRIND

main04112-37380i2ZRFXE..ZVW52201609-201803

sub04112-37381

main04112-37381i2ZRFXE..ZVW52201804-202109

sub04112-37382

main04112-37382i2ZRFXE..ZVW52202110

2 parts on this diagram · 2 diagrams in section
