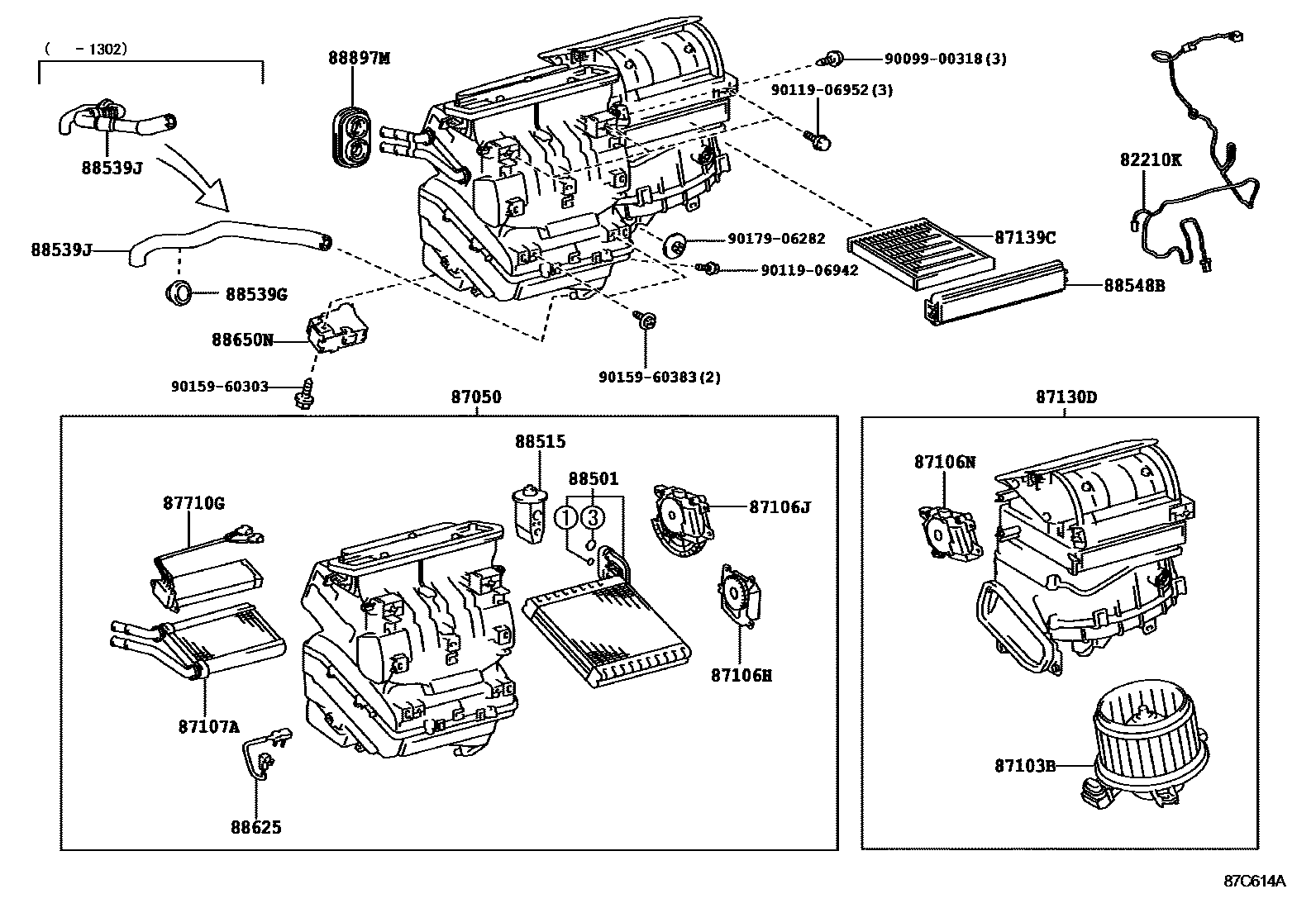

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1O-RING

82210KHARNESS ASSY, AIR CONDITIONER

main82212-12010iZVW35201201-201506

87050RADIATOR ASSY, AIR CONDITIONER

main87050-47150iZVW35201201-201506

87103BMOTOR SUB-ASSY, BLOWER W/FAN

main87103-47041iZVW35201201-201506

87106HSERVO SUB-ASSY, DAMPER(FOR AIRMIX)

main87106-12170iZVW35201201-201411

main87106-47170iZVW35201411-201506

87106JSERVO SUB-ASSY, DAMPER(FOR MODE)

main87106-42100iZVW35201201-201506

87106NSERVO SUB-ASSY, DAMPER(FOR RECIRCULATION)

main87106-47130iZVW35201201-201506

87107AUNIT SUB-ASSY, HEATER RADIATOR

main87107-42170iZVW35201201-201506

87130DBLOWER ASSY

main87130-47130iZVW35201201-201506

87139CFILTER, CLEAN AIR

main87139-30040iZVW35201201-201308

POLLEN FILTER

main87139-50060iZVW35201201-201204

DEODORANT FILTER

sub87139-50100

main87139-50100iZVW35201205-201506

*DPF

main87139-76010iZVW35201309-201506

POLLEN FILTER

87710GQUICK HEATER ASSY

main87710-12020iZVW35201201-201506

88501EVAPORATOR SUB-ASSY, COOLER, NO.1

main88501-47051iZVW35201201-201506

88515VALVE, COOLER EXPANSION

main88515-47040iZVW35201201-201506

88539GGROMMET (FOR COOLER UNIT DRAIN HOSE)

main90480-26030iZVW35201302-201506

88539JHOSE, DRAIN COOLER

main88539-12200iZVW35201201-201302

main88539-12230iZVW35201302-201506

88548BCASE, AIR FILTER

main88548-42020iZVW35201201-201506

88625THERMISTOR, COOLER, NO.1

main88625-71010iZVW35201201-201506

88650NAMPLIFIER ASSY, AIR CONDITIONER

main88650-47230iZVW35201201-201202

sub88650-47231

main88650-47231iZVW35201202-201205

sub88650-47232

main88650-47232iZVW35201206-201210

main88650-47400iZVW35201210-201310

main88650-47480iZVW35201310-201506

88897MGROMMET (FOR HEATER PIPE)

main87128-42010iZVW35201201-201506

9009900318

main90099-00318

9011906942

main90119-06942

9011906952

main90119-06952

9015960303

main90159-60303

9015960383

main90159-60383

9017906282

main90179-06282

24 parts on this diagram · 2 diagrams in section
