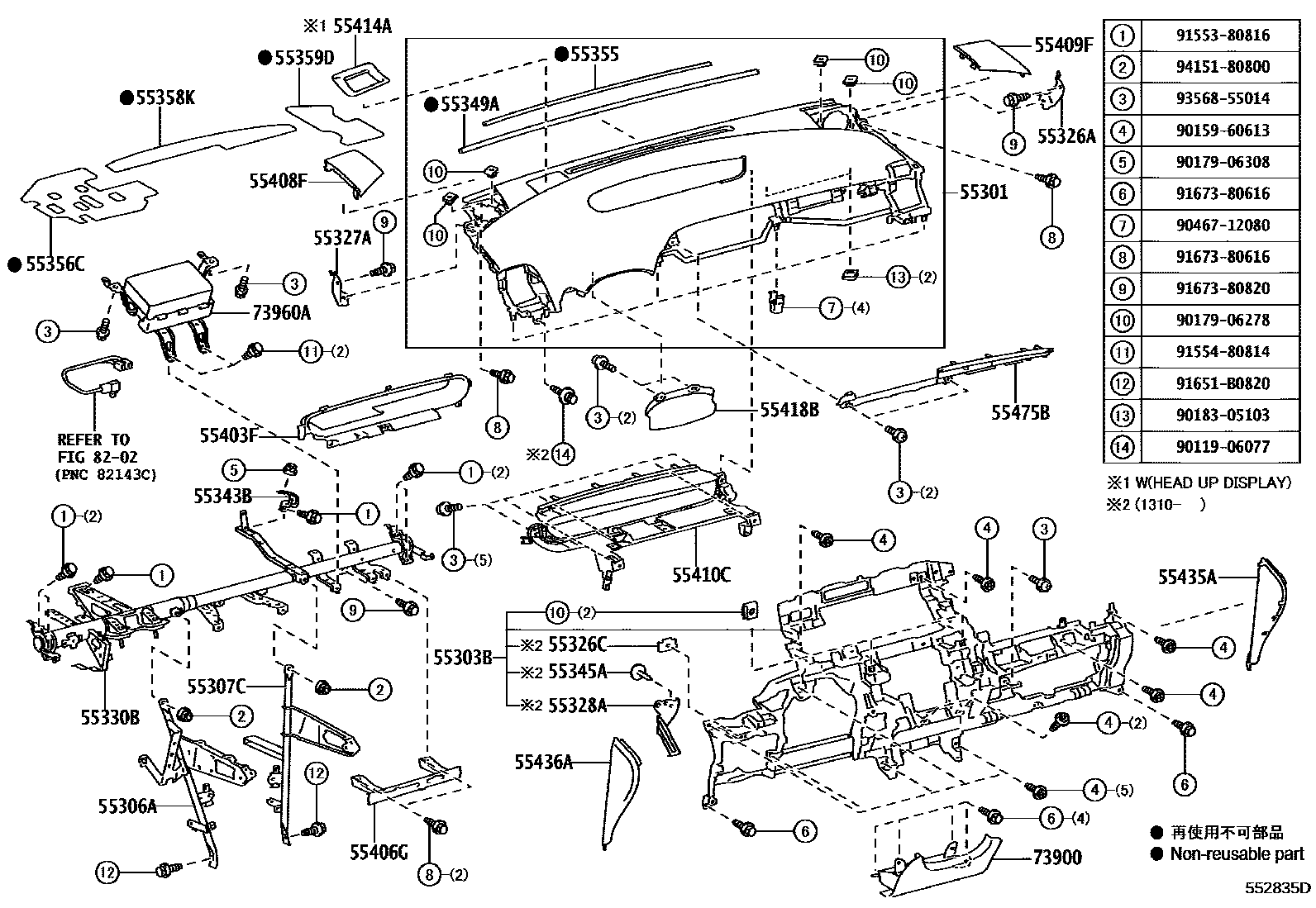

INSTRUMENT PANEL & GLOVE COMPARTMENT
55301PANEL SUB-ASSY, INSTRUMENT
BLACK,TRIM1#,4#,6#
BLACK,TRIM1#
BLACK,TRIM1#,6#
BLACK,TRIM1#,6#
55303BPANEL SUB-ASSY, INSTRUMENT, LOWER
BLACK,TRIM1#,2#
BLACK,TRIM1#
GREGE,TRIM4#
AQUA,TRIM6#
BLACK,TRIM1#
AQUA,TRIM6#
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55326ASTAY, INSTRUMENT PANEL, NO.1
55326CSTAY, INSTRUMENT PANEL, NO.2
55327ASTAY, INSTRUMENT PANEL, NO.2
55328ASTAY, INSTRUMENT PANEL, NO.3
55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER
55345ACLIP, INSTRUMENT PANEL, NO.1
55349ACUSHION, INSTRUMENT PANEL
55355CUSHION, INSTRUMENT PANEL, NO.1
55356CCUSHION, INSTRUMENT PANEL, NO.2
55358KCUSHION, INSTRUMENT PANEL, NO.4
55359DCUSHION, INSTRUMENT PANEL, NO.5
55403FPANEL SUB-ASSY, INSTRUMENT PANEL FINISH
55406GPLATE SUB-ASSY, INSTRUMENT PANEL SAFETY PAD
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2
55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH
55414APANEL, INSTRUMENT CLUSTER FINISH, END
55418BSPACER,METER HOOD
55435APANEL, INSTRUMENT PANEL FINISH, END RH
55436APANEL, INSTRUMENT PANEL FINISH, END LH
55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER
73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
8202
9011906077
main90119-06077
9015960613
main90159-60613
9017906278
main90179-06278
9017906308
main90179-06308
9018305103
main90183-05103
9046712080
main90467-12080
9155380816
main91553-80816
9155480814
main91554-80814
91651B0820
main91651-B0820
9167380616
main91673-80616
9167380820
main91673-80820
9356855014
main93568-55014
9415180800
main94151-80800
42 parts on this diagram · 4 diagrams in section
