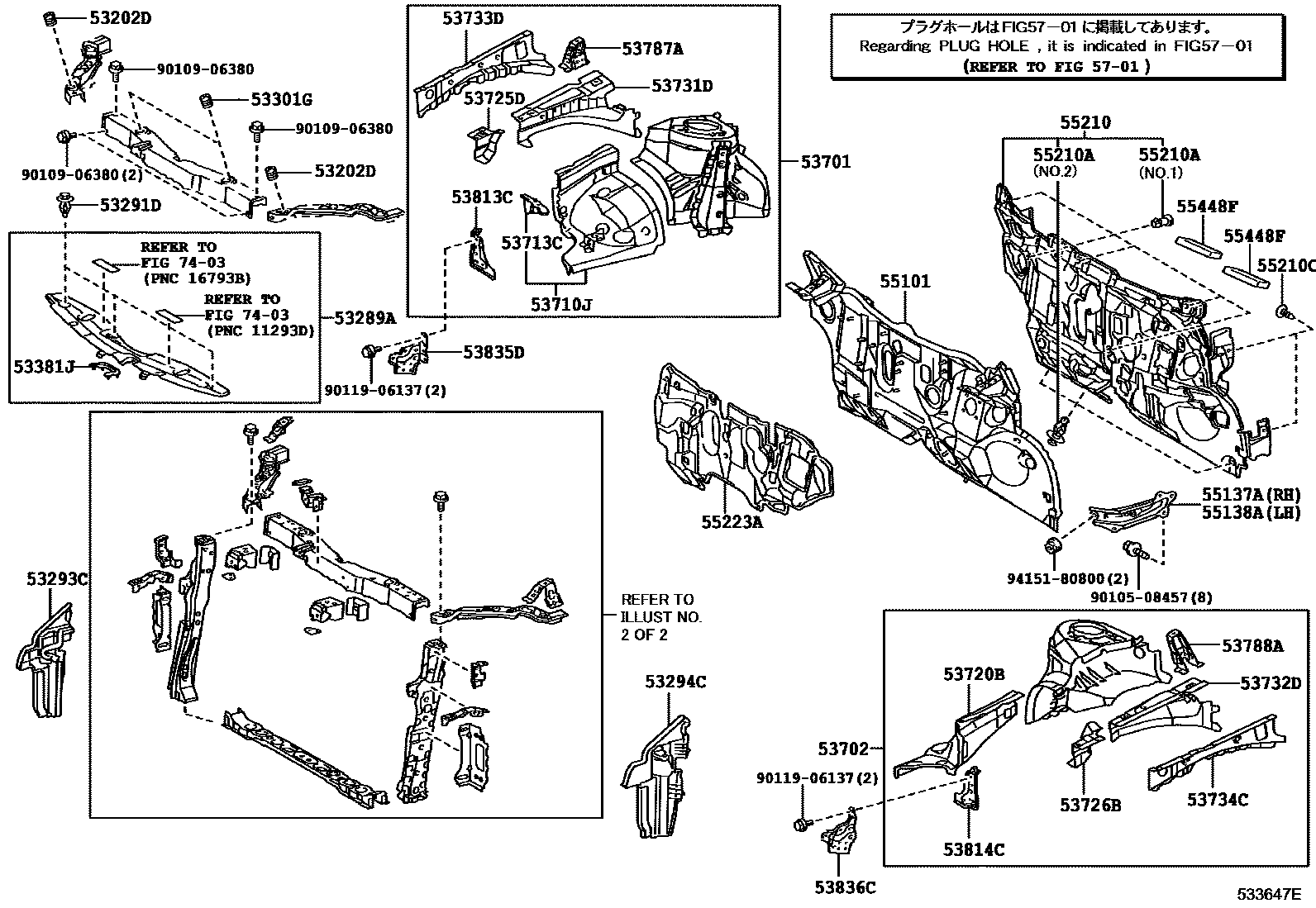

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1RADIATOR SUPPORT

53202SUPPORT SUB-ASSY, RADIATOR, RH

main53202-47020iZVW35201201-201506

53202DCUSHION, RADIATOR SUPPORT

main90541-15037iZVW35201201-201506

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-47032iZVW35201201-201404

sub53289-47033

main53289-47033iZVW35201405-201506

53291DCLIP, RADIATOR SUPPORT TO FRAME

main90467-07211iZVW35201201-201210

main90467-07217iZVW35201211-201506

53293CDEFLECTOR, RADIATOR SIDE, RH

main53293-47040iZVW35201201-201506

53294CDEFLECTOR, RADIATOR SIDE, LH

main53294-47030iZVW35201201-201506

53301GCUSHION, HOOD BUMPER

main90541-15035iZVW35201201-201506

53381JSEAL, HOOD TO RADIATOR SUPPORT

main53381-47030iZVW35201201-201506

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-47050iZVW35201201-201506

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-47050iZVW35201201-201506

53710JAPRON ASSY, FRONT FENDER, RH

main53710-12030iZVW35201201-201506

53713CEXTENSION, FRONT FENDER APRON, FRONT RH

main53713-12160iZVW35201201-201506

53720BAPRON ASSY, FRONT FENDER, LH

main53720-12030iZVW35201201-201506

53725DREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 RH

main53725-12040iZVW35201201-201506

53726BREINFORCEMENT, FRONT SPRING SUPPORT, NO.2 LH

main53726-12040iZVW35201201-201506

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-12170iZVW35201201-201506

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-12150iZVW35201201-201506

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-12070iZVW35201201-201506

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-12070iZVW35201201-201506

53787AGUSSET, FRONT FENDER APRON, LOWER RH

main53707-47010iZVW35201201-201506

53788AGUSSET, FRONT FENDER APRON, LOWER LH

main53708-47050iZVW35201201-201506

53813CEXTENSION, FRONT FENDER, RH

main53813-47020iZVW35201201-201506

53814CEXTENSION, FRONT FENDER, LH

main53814-47020iZVW35201201-201506

53835DBRACKET, FRONT SIDE PANEL, RH

main53803-47020iZVW35201409-201506

main53835-47010iZVW35201201-201409

sub53803-47020

53836CBRACKET, FRONT SIDE PANEL, LH

main53804-47020iZVW35201409-201506

main53836-47010iZVW35201201-201409

sub53804-47020

55101PANEL SUB-ASSY, DASH

main55101-12B60iZVW35201201-201506

55137ABRACE, DASH TO FRAME, RH

main55137-47030iZVW35201201-201506

55138ABRACE, DASH TO FRAME, LH

main55138-47050iZVW35201201-201312

sub55138-47060

main55138-47060iZVW35201312-201506

55210INSULATOR ASSY, DASH PANEL

main55210-47140iZVW35201201-201506

55210ACLIP

main90467-11122iZVW35201201-201506

NO.1:REFER ILLUST.

main90467-11127iZVW35201201-201506

NO.2:REFER ILLUST.

55210CCLIP

main90467-08186-C0iZVW35201201-201506

BLACK

sub90467-08186

55223AINSULATOR, DASH PANEL, OUTER

main55223-47050iZVW35201201-201506

55448FCUSHION, INSTRUMENT PANEL FINISH, NO.1

main55448-47060iZVW35201201-201506

5701

7403

9010508457

main90105-08457

9010906380

main90109-06380

9011906137

main90119-06137

9415180800

main94151-80800

39 parts on this diagram · 3 diagrams in section
