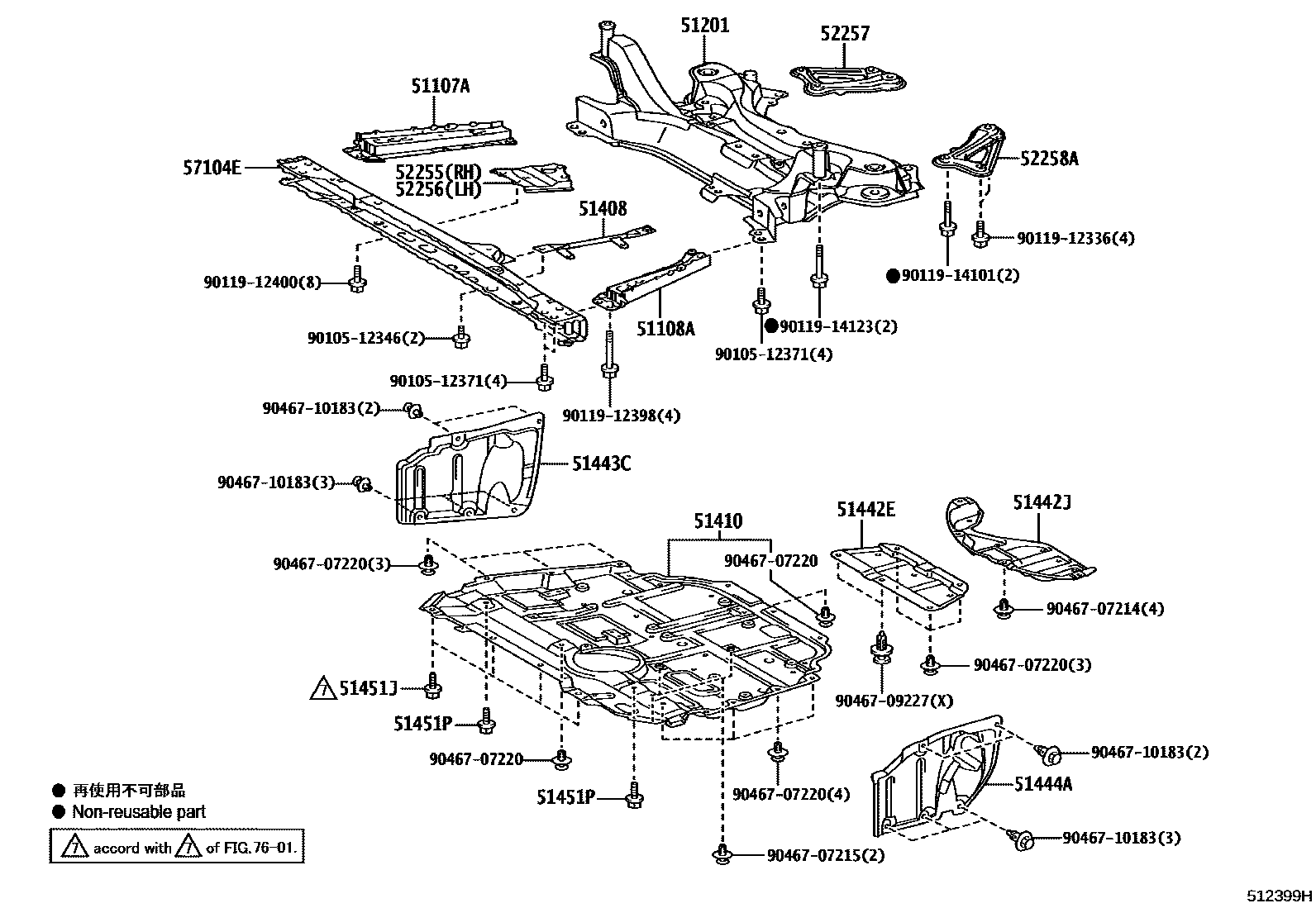

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1FLOOR UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-12010iZVW35201201-201506

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-12010iZVW35201201-201506

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-12441iZVW35201201-201212

sub51201-12442

main51201-12442iZVW35201301-201506

sub51201-78010

51408REINFORCEMENT SUB-ASSY, ENGINE SUPPORT BRACKET, FRONT RH

main51408-47020iZVW35201201-201506

51410COVER ASSY, ENGINE UNDER, NO.1

main51410-12105iZVW35201201-201506

51442ECOVER, ENGINE UNDER, NO.2

main51442-12270iZVW35201201-201506

51442JCOVER, ENGINE UNDER, NO.3

main51442-12210iZVW35201201-201506

51443CCOVER, ENGINE UNDER, REAR RH

main51443-12080iZVW35201201-201506

51444ACOVER, ENGINE UNDER, REAR LH

main51444-12050iZVW35201201-201506

51451JBOLT, NO.1

main90119-06767iZVW35201201-201506

51451PBOLT, NO.2

main90119-06767iZVW35201201-201506

52255BRACE, FRONT SUSPENSION MEMBER, FRONT RH

main52255-12010iZVW35201201-201506

52256BRACE, FRONT SUSPENSION MEMBER, FRONT LH

main52256-12010iZVW35201201-201506

52257BRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-21040iZVW35201201-201506

52258ABRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-21040iZVW35201201-201506

57104EMEMBER SUB-ASSY, FRONT CROSS

main57104-47020iZVW35201201-201506

9010512346

main90105-12346

9010512371

main90105-12371

9011912336

main90119-12336

9011912398

main90119-12398

9011912400

main90119-12400

9011914101

main90119-14101

9011914123

main90119-14123

9046707214

main90467-07214

9046707215

main90467-07215

9046707220

main90467-07220

9046709227

main90467-09227

9046710183

main90467-10183

28 parts on this diagram · 2 diagrams in section
