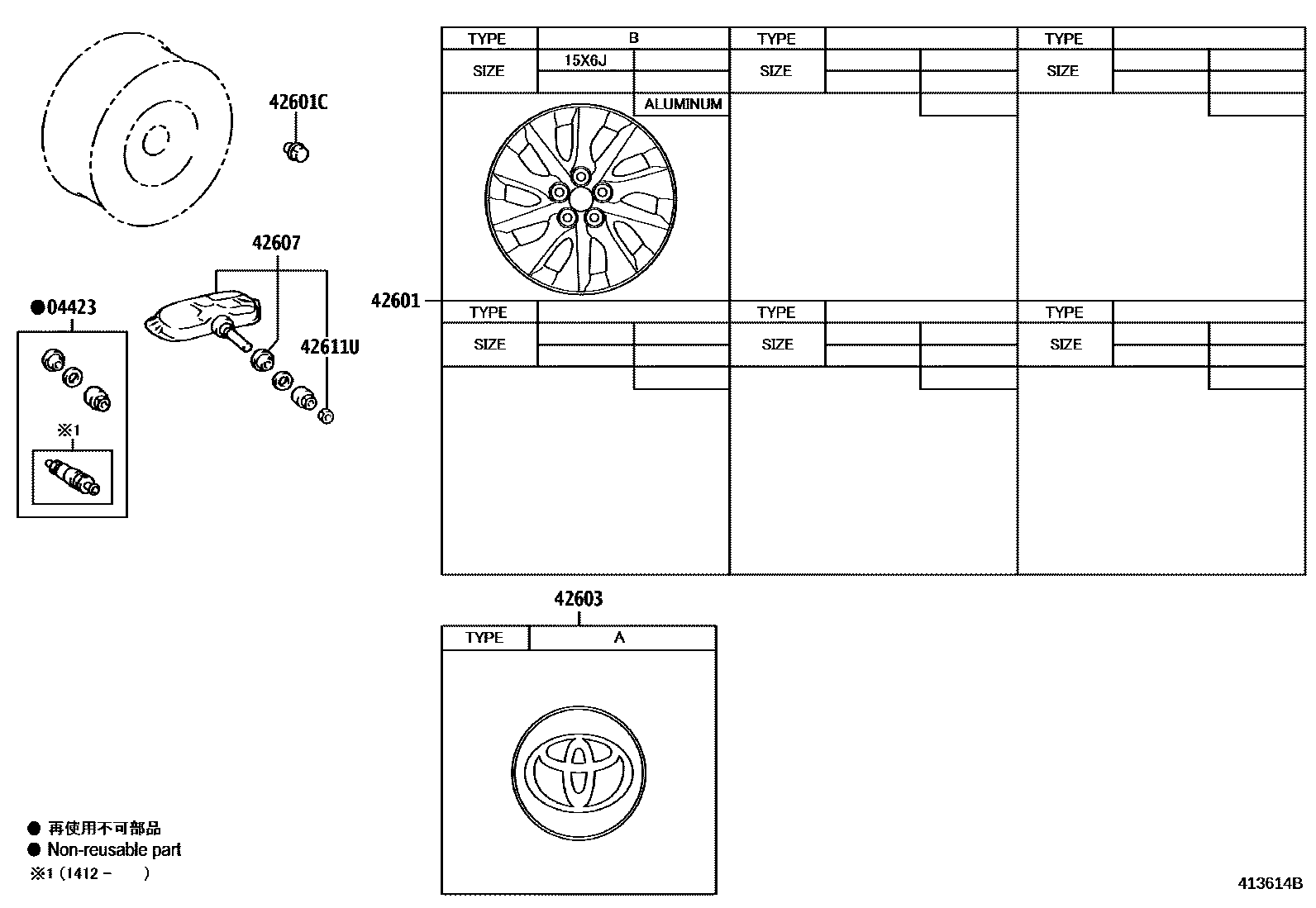

DISC WHEEL & WHEEL CAP

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iZVW35201201-201411

sub04423-33060

main04423-33060iZVW35201412-201506

42601WHEEL, DISC

main42611-47360iZVW35201201-201506

15X6J,#,TYPE B:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01033iZVW35201201-201506

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-52110iZVW35201201-201506

*CHR OR *ALU,TYPE A:REFER ILLUST.

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-33011iZVW35201201-201506

sub42607-33012

42611UCAP, TIRE VALVE

main90942-05039iZVW35201201-201506

6 parts on this diagram · 1 diagram in section
