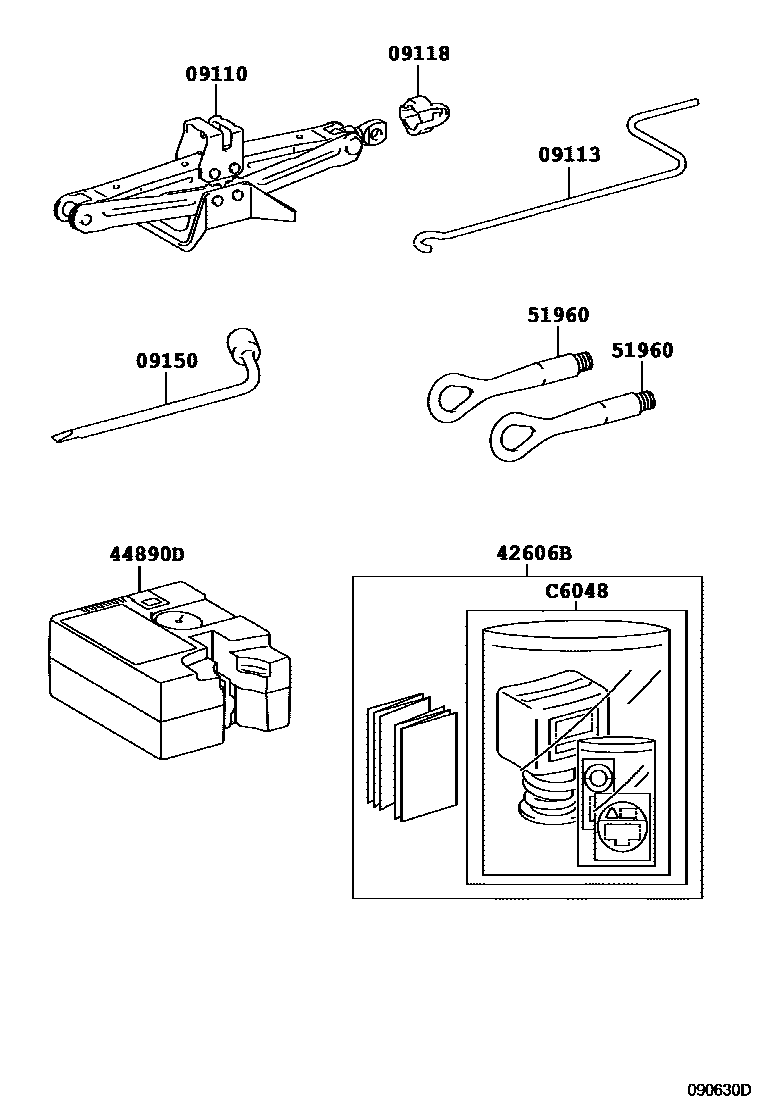

STANDARD TOOL

09110JACK ASSY

main09111-30190iZVW35201208-201506

main09111-33030iZVW35201201-201207

sub09111-76010

09113HANDLE, JACK

main09113-52031iZVW35201201-201506

09118COVER, JACK

main09118-47020iZVW35201301-201506

09150WRENCH, HUB NUT BOX

main09150-35070iZVW35201201-201303

main09150-76010iZVW35201304-201506

42606BREPAIR KIT, TUBELESS TIRE

main42606-47070iZVW35201201-201506

44890DCOMPRESSOR ASSY, AIR

main44890-47040iZVW35201201-201209

sub44890-47041

main44890-47041iZVW35201210-201506

51960HOOK ASSY, FRONT

main51961-50041iZVW35201201-201305

sub51961-50042

main51961-50042iZVW35201305-201506

C6048REPAIR SET, TIRE

mainC604847042iZVW35201201-201506

sub42606-47070

8 parts on this diagram · 1 diagram in section
