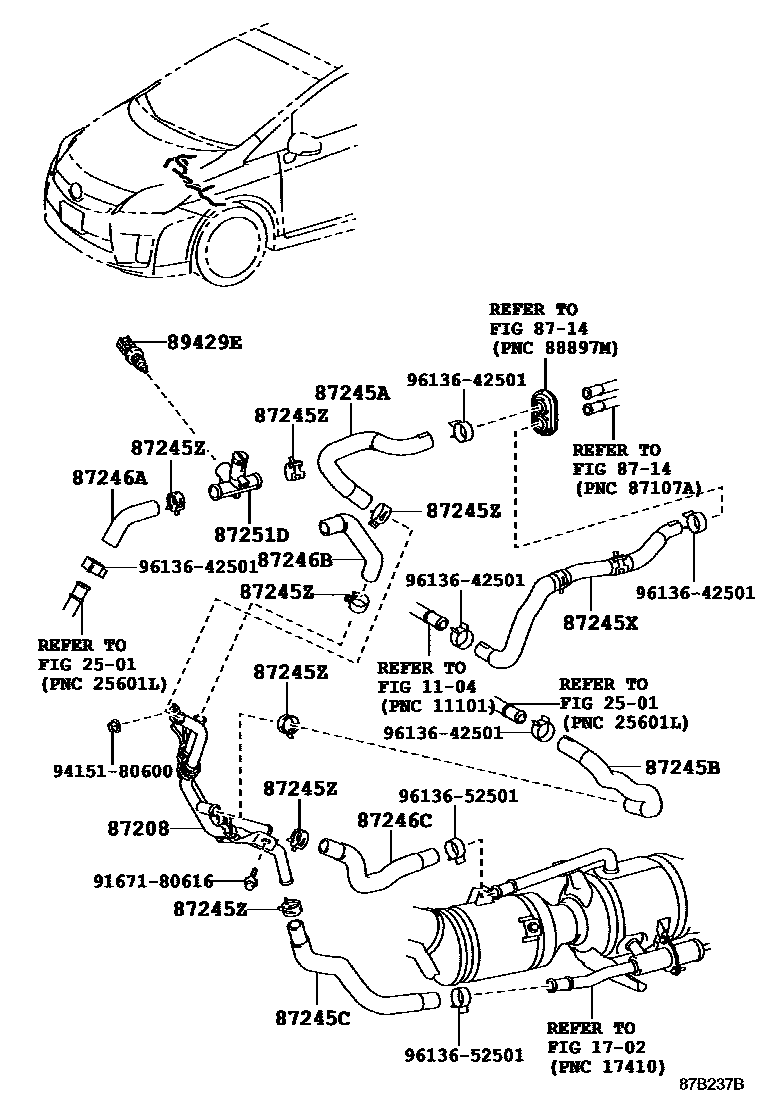

HEATING & AIR CONDITIONING - WATER PIPING

1104

1702

2501

8714

87208PIPE SUB-ASSY, HEATER WATER

main87208-47010iZVW35200912

87245AHOSE, HEATER WATER, INLET A

main87245-47320iZVW35200912

87245BHOSE, HEATER WATER, INLET B

main87245-47310iZVW35200912

87245CHOSE, HEATER WATER ,INLET C

main87245-47300iZVW35200912-201010

87245XHOSE, HEATER WATER

main87245-47360iZVW35200912

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main90467-22011iZVW35200912

87246AHOSE, HEATER WATER, OUTLET A

main87245-47270iZVW35200912

87246BHOSE, HEATER WATER, OUTLET B

main87245-47280iZVW35200912

87246CHOSE, HEATER WATER, OUTLET C

main87245-47290iZVW35200912-201010

87251DJOINT, WATER, NO.1

main87251-47010iZVW35200912

sub87251-47020

89429ESENSOR, WATER TEMPERATURE

main89429-47010iZVW35200912-201010

9167180616

main91671-80616

9415180600

main94151-80600

9613642501

main96136-42501

9613652501

main96136-52501

19 parts on this diagram · 1 diagram in section
