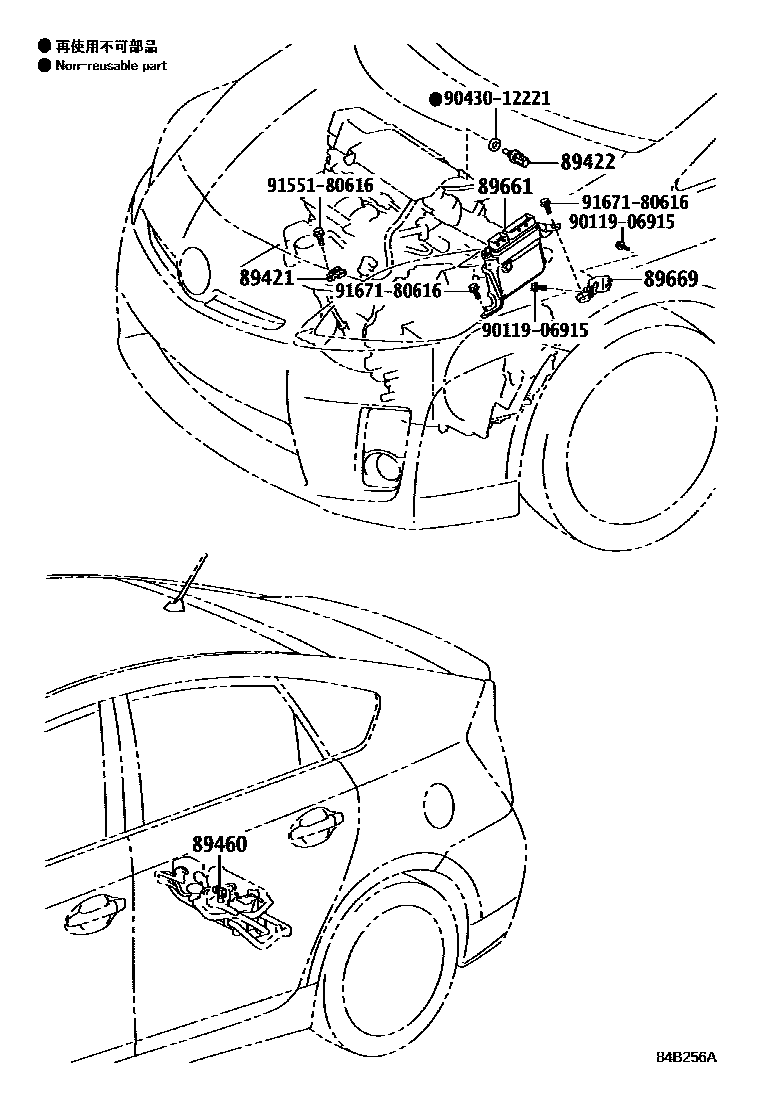

ELECTRONIC FUEL INJECTION SYSTEM

89421SENSOR ASSY, VACUUM (FOR E.F.I.)

main89421-47010iZVW35200912

89422SENSOR, WATER TEMPERATURE (FOR E.F.I.)

main89422-33030iZVW35200912

89460SENSOR ASSY, VAPOR PRESSURE

main89461-48020iZVW35200912-201010

89661COMPUTER, ENGINE CONTROL

main89660-47370iZVW35200912

89669BRACKET, ENGINE CONTROL COMPUTER, NO.3

main89669-47070iZVW35200912

9011906915

main90119-06915

9043012221

main90430-12221

9155180616

main91551-80616

9167180616

main91671-80616

9 parts on this diagram · 1 diagram in section
