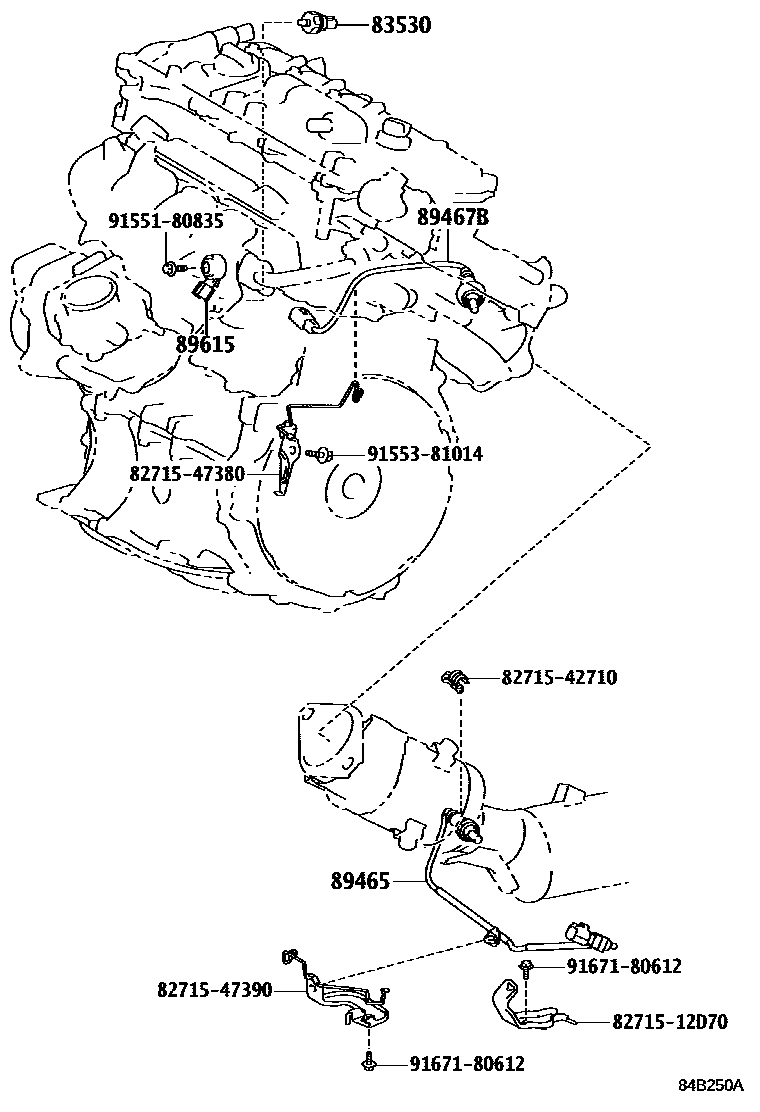

SWITCH & RELAY & COMPUTER

0001 1ENGINE & TRANSMISSION 0002 1ENGINE ROOM 0003 1COWL 0004 1INSTRUMENT PANEL 0005 1STEERING 0006 1DOOR,ROOF,FLOOR & LUGGAGE

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-28020iZVW35200912

89465SENSOR, OXYGEN

main89465-47080iZVW35200912

89467BSENSOR, AIR FUEL RATIO

main89467-28090iZVW35200912-201010

89615SENSOR, KNOCK CONTROL

main89615-20090iZVW35200912

8271512D70BRACKET,WIRING HARNESS CLAMP

main82715-12D70

8271542710BRACKET,WIRING HARNESS CLAMP

main82715-42710

8271547380BRACKET,WIRING HARNESS CLAMP

main82715-47380

8271547390BRACKET,WIRING HARNESS CLAMP

main82715-47390

9155180835

main91551-80835

9155381014

main91553-81014

9167180612

main91671-80612

11 parts on this diagram · 6 diagrams in section
