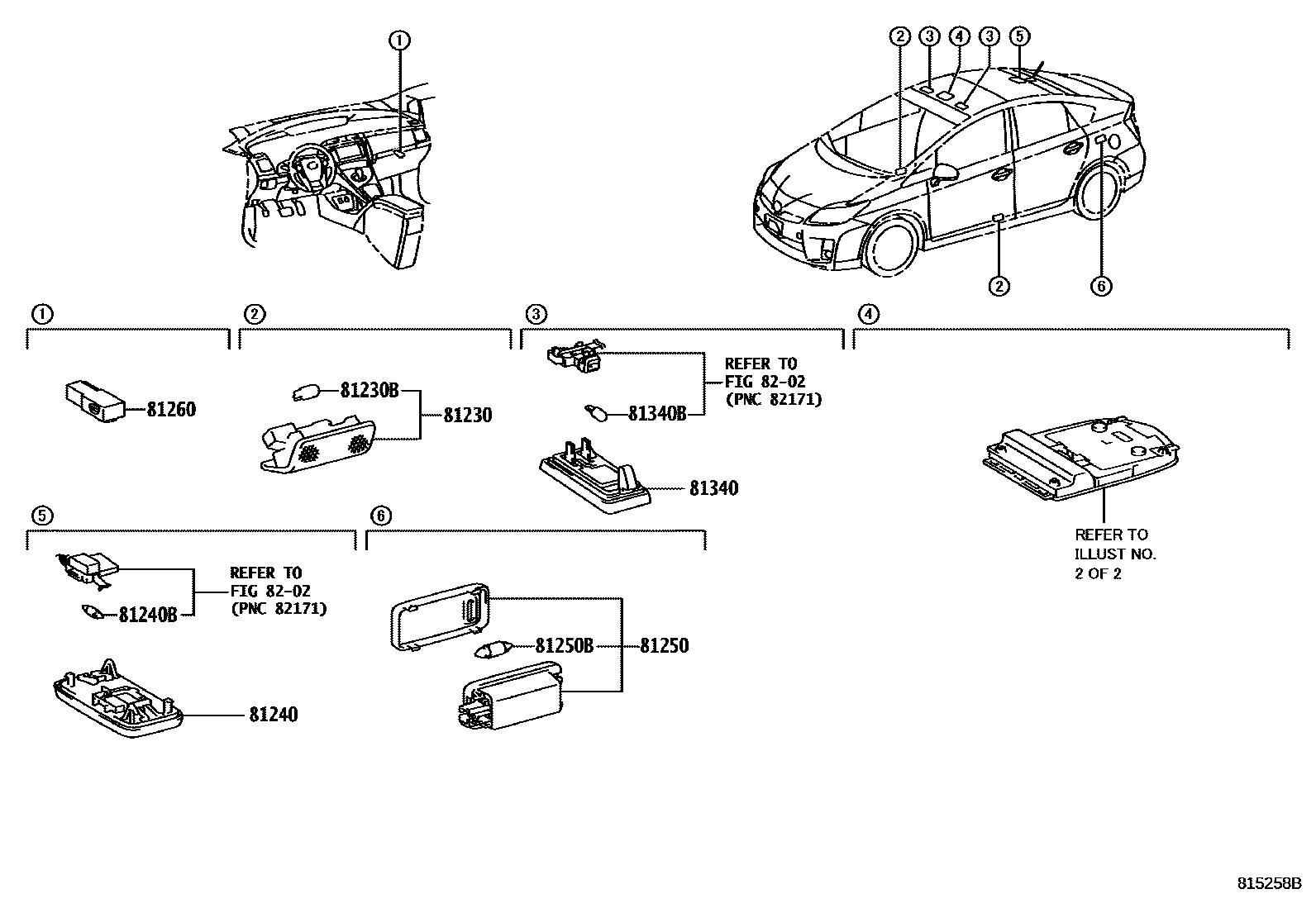

INTERIOR LAMP

0001 1 0002 1

81230LAMP ASSY, COURTESY

main81230-47010iZVW35200912

sub81230-30200

81230BBULB(FOR COURTESY LAMP)

main90981-12010iZVW35200912

12V 5W

81240LAMP ASSY, ROOM, NO.1

main81240-60060-B0iZVW35..USA200912

LT.GRAY,TRIM6#

sub81240-12100

81240BBULB, ROOM LAMP, NO.1

main90981-14011iZVW35200912-201010

12V 8W

81250LAMP ASSY, ROOM, NO.2

main81250-48010iZVW35200912

81250BBULB, ROOM LAMP, NO.2

main99132-13050iZVW35200912

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-48010iZVW35200912-201010

81340LAMP ASSY, VANITY

main81340-30100-B0iZVW35..USA200912

LT.GRAY,TRIM6#

81340BBULB (FOR VANITY LAMP)

main90981-11062iZVW35200912-201010

12V 8W

8202

10 parts on this diagram · 2 diagrams in section
