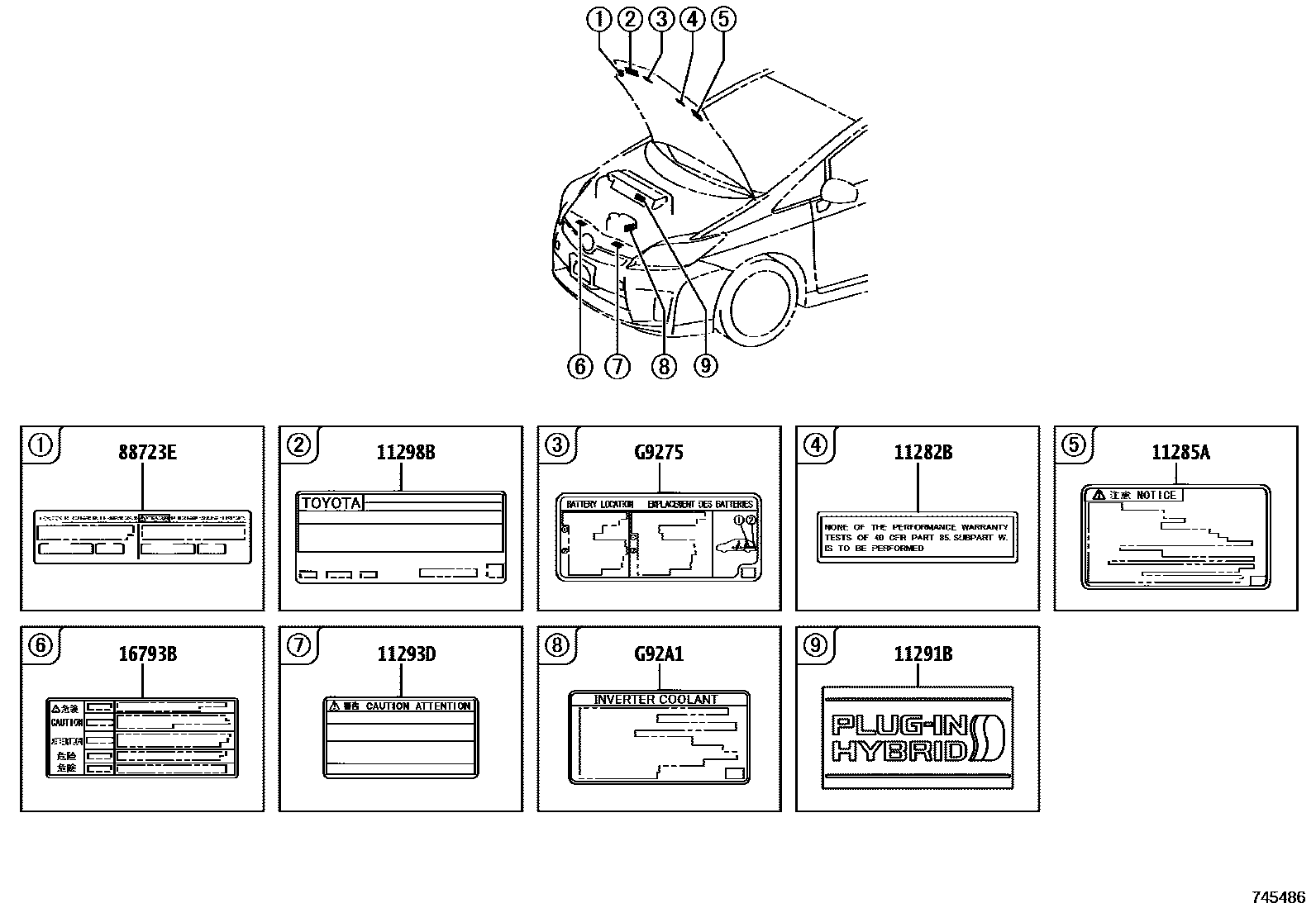

CAUTION PLATE (EXTERIOR & INTERIOR)

0001 1ENGINE ROOM 0002 1EXTERIOR 0003 1INTERIOR

11282BLABEL, LOADED TESTING CAUTION

main11282-21010i2ZRFXE..ZVW35200912

11285ALABEL, COOLANT SYSTEM NOTICE

main11285-37040i2ZRFXE..ZVW35200912

sub11285-37060

11291BPLATE, ENGINE NAME

main11291-37070i2ZRFXE..ZVW35200912-201010

11293DLABEL, ENGINE CAUTION

main11293-21080i2ZRFXE..ZVW35200912-201010

11298BLABEL, EMISSION CONTROL INFORMATION

main11298-37220i2ZRFXE..ZVW35200912

16793BLABEL, COOLING FAN INFORMATION

main16793-28020i2ZRFXE..ZVW35200912-201010

sub16793-36040

88723ELABEL, COOLER SERVICE CAUTION

main88723-47100iZVW35200912

G9275LABEL, BATTERY CAUTION, NO.1

mainG927547080iZVW35200912

G92A1LABEL, HYBRID COOLANT SYSTEM INFORMATION

mainG92A148010iZVW35200912-201010

9 parts on this diagram · 3 diagrams in section
