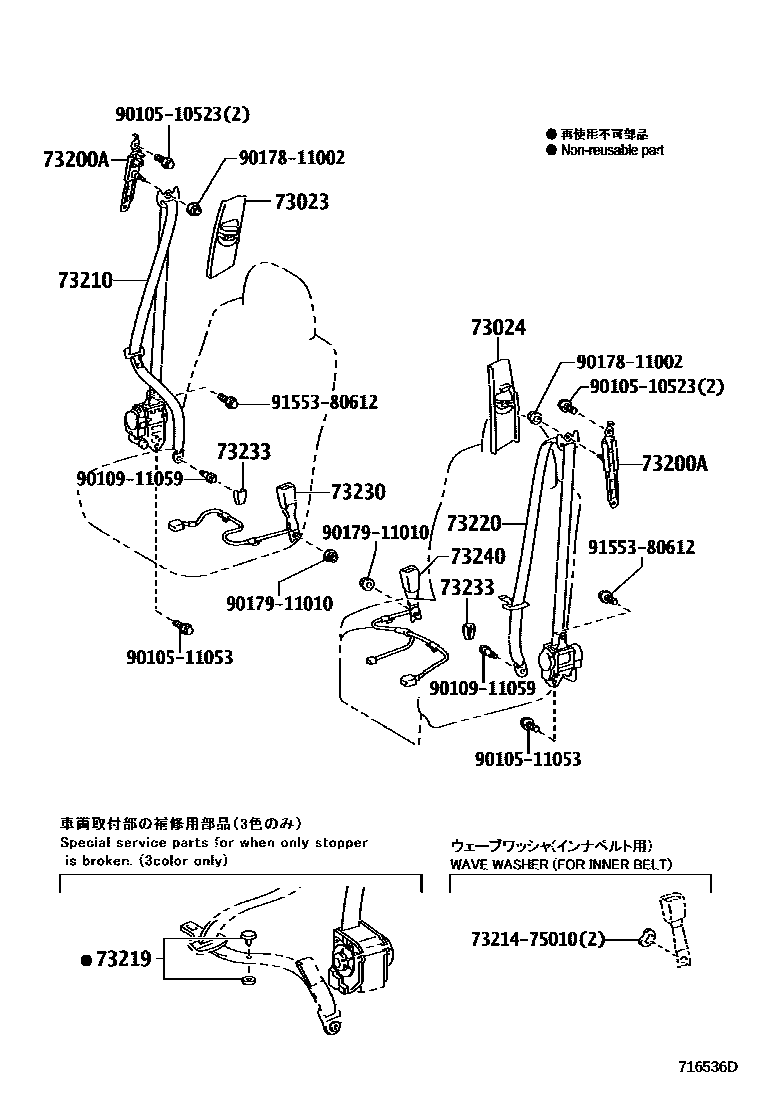

SEAT BELT & CHILD RESTRAINT SEAT

0001 1FRONT SEAT BELT 0002 1REAR SEAT BELT

73023PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, RH

main73023-53020-B0iZVW35..USA200912-201010

LT.GRAY,TRIM1#,6#

main73023-53020-B0iZVW35..USA200912-201010

LT.GRAY,TRIM6#

73024PLATE SUB-ASSY, FRONT SHOULDER BELT ANCHOR, LH

main73024-53020-B0iZVW35..USA200912-201010

LT.GRAY,TRIM1#,6#

main73024-53020-B0iZVW35..USA200912-201010

LT.GRAY,TRIM6#

73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR

main73200-53010iZVW35¥3,020200912

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-47120-B3iZVW35200912

AQUA,TRIM6#

sub73210-47121¥37,800

73219STOPPER, TONGUE PLATE

main73219-02010iZVW35¥80200912

BLACK

main73219-02020iZVW35¥80200912

GRAY

main73219-02030iZVW35¥80200912

BEIGE

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-47090-B3iZVW35200912

AQUA,TRIM6#

sub73220-47091¥37,800

73230BELT ASSY, FRONT SEAT INNER, RH

main73240-47080-G0iZVW35200912-201010

AQUA,TRIM6#

73233COVER, LAP BELT OUTER ANCHOR

main73233-60020-B0iZVW35..USA200912

MD.GRAY,TRIM1#,6#

sub73233-60020¥500

sub73233-35010¥620

main73233-60020-B0iZVW35..USA200912

MD.GRAY,TRIM6#

sub73233-60020¥500

sub73233-35010¥620

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-47140-G0iZVW35200912-201010

AQUA,TRIM6#

7321475010PLATE, FRONT SEAT BELT ANCHOR

main73214-75010¥170

9010510523

main90105-10523¥100

9010511053

main90105-11053¥100

9010911059

main90109-11059¥240

9017811002

main90178-11002¥100

9017911010

main90179-11010¥110

9155380612

main91553-80612¥60

16 parts on this diagram · 2 diagrams in section
