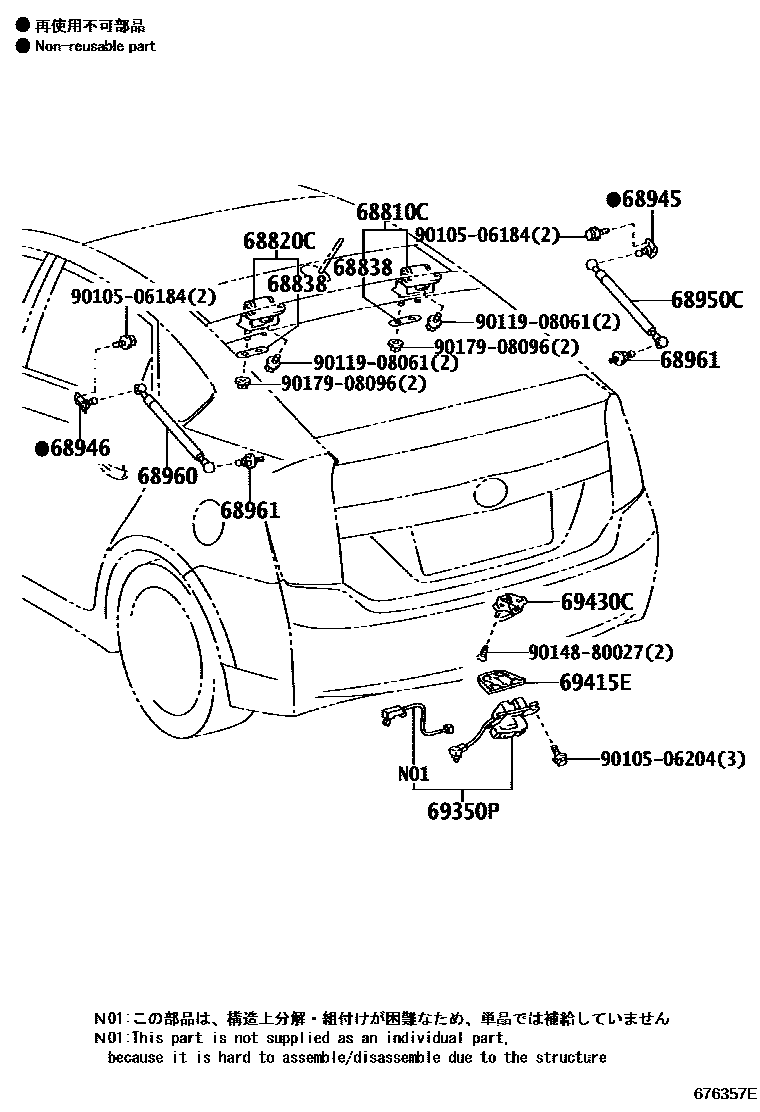

BACK DOOR LOCK & HANDLE
68810CHINGE ASSY, BACK DOOR, RH
sub68810-47011
68820CHINGE ASSY, BACK DOOR, LH
sub68810-47011
68838PAD, BACK DOOR HINGE, NO.1
T=2.0
T=1.0
T=1.6
68945BRACKET, BACK DOOR DAMPER STAY, UPPER RH
68946BRACKET, BACK DOOR DAMPER STAY, UPPER LH
68950CSTAY ASSY, BACK DOOR, RH
sub68950-0W541
68960STAY ASSY, BACK DOOR, LH
sub68960-0W531
68961BOLT, BACK DOOR STAY
69350PLOCK ASSY, BACK DOOR, W/COURTESY LAMP SWITCH
sub69350-47040
69415ECOVER, BACK DOOR LOCK STRIKER
69430CSTRIKER ASSY, BACK DOOR LOCK
9010506184
main90105-06184
9010506204
main90105-06204
9011908061
main90119-08061
9014880027
main90148-80027
9017908096
main90179-08096
16 parts on this diagram · 1 diagram in section
