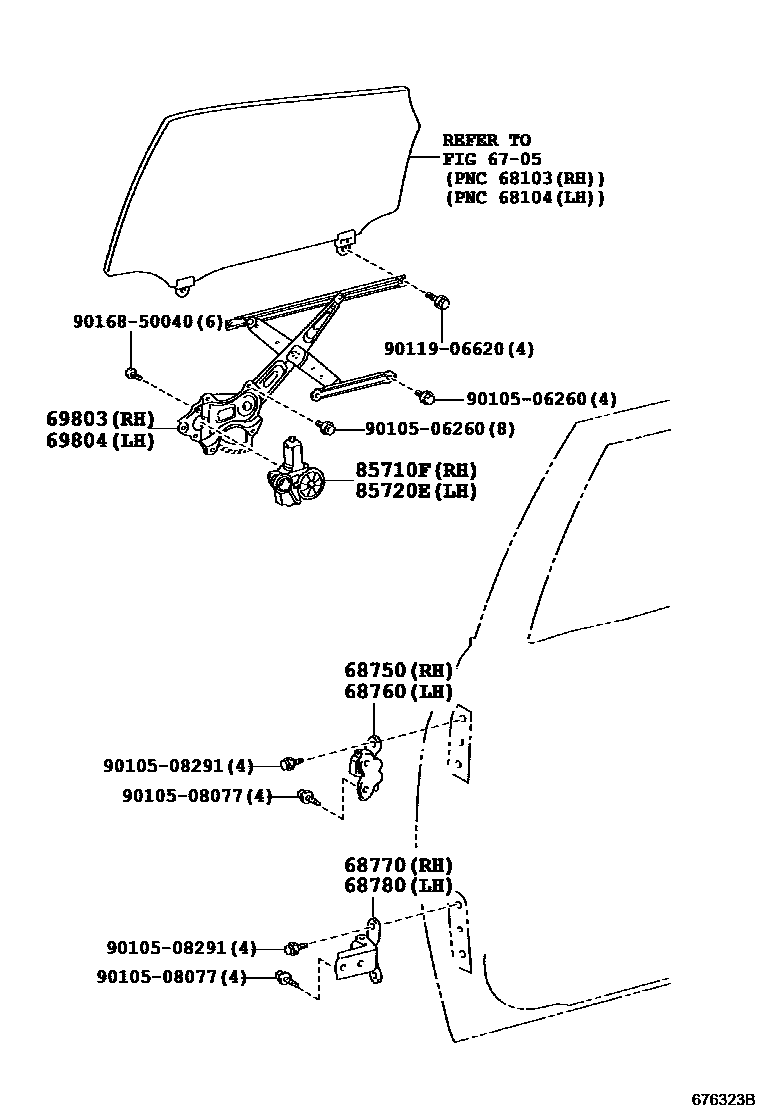

REAR DOOR WINDOW REGULATOR & HINGE

6705

68750HINGE ASSY, REAR DOOR, UPPER RH

main68750-20121iZVW35200912

sub68750-20122

68760HINGE ASSY, REAR DOOR, UPPER LH

main68760-20121iZVW35200912

sub68760-20122

68770HINGE ASSY, REAR DOOR, LOWER RH

main68770-52031iZVW35200912

68780HINGE ASSY, REAR DOOR, LOWER LH

main68780-52031iZVW35200912

69803REGULATOR SUB-ASSY, REAR DOOR WINDOW, RH

main69801-52070iZVW35200912

69804REGULATOR SUB-ASSY, REAR DOOR WINDOW, LH

main69802-52070iZVW35200912

85710FMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-72020iZVW35200912

sub85710-47120

85720EMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-72020iZVW35200912

sub85720-47120

9010506260

main90105-06260

9010508077

main90105-08077

9010508291

main90105-08291

9011906620

main90119-06620

9016850040

main90168-50040

14 parts on this diagram · 1 diagram in section
