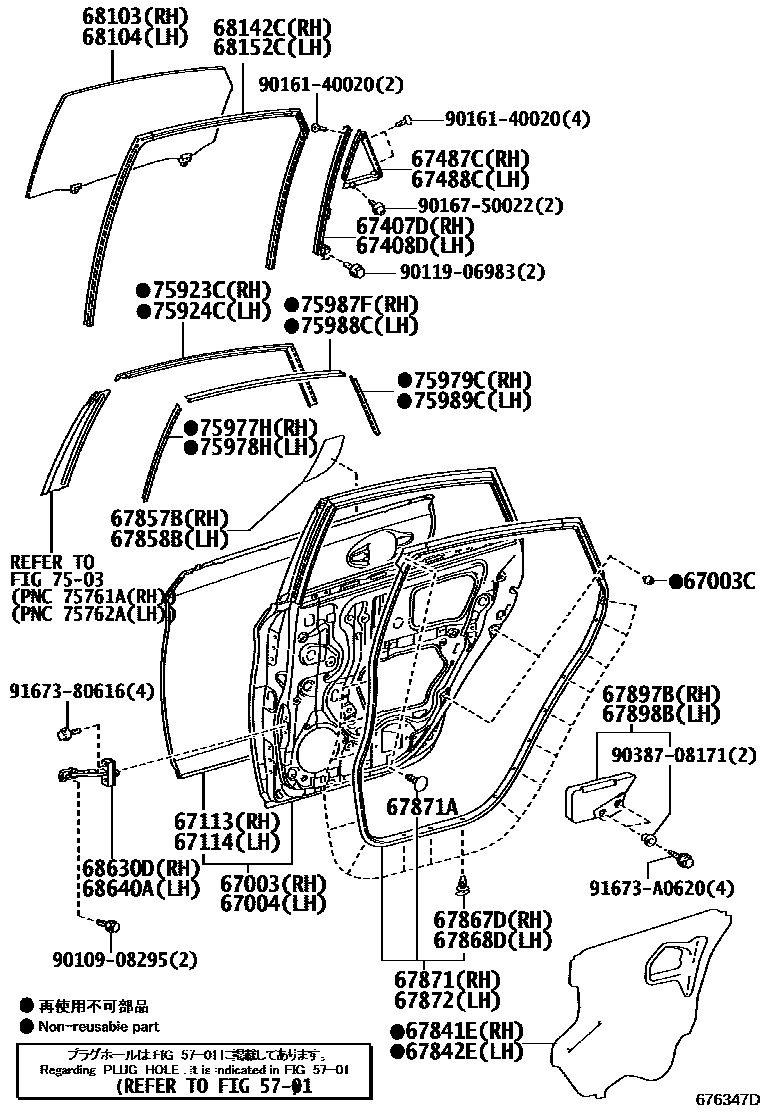

REAR DOOR PANEL & GLASS
5701
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR RH
67408DGUIDE SUB-ASSY, REAR DOOR WINDOW, REAR LH
67487CSEAL, REAR DOOR REAR GUIDE, RH
sub67487-47041
67488CSEAL, REAR DOOR REAR GUIDE, LH
sub67488-47041
67841ECOVER, REAR DOOR SERVICE HOLE, RH
67842ECOVER, REAR DOOR SERVICE HOLE, LH
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67871WEATHERSTRIP, REAR DOOR, RH
67871ARETAINER(FOR REAR DOOR WEATHERSTRIP)
67872WEATHERSTRIP, REAR DOOR, LH
67897BCUSHION, REAR DOOR, RH
67898BCUSHION, REAR DOOR, LH
68103GLASS SUB-ASSY, REAR DOOR, RH
*UVCT,T=3.1,GREEN
68104GLASS SUB-ASSY, REAR DOOR, LH
*UVCT,T=3.1,GREEN
68142CRUN, REAR DOOR GLASS, RH
68152CRUN, REAR DOOR GLASS, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75923CTAPE, BLACK OUT, NO.2 RH
75924CTAPE, BLACK OUT, NO.2 LH
75977HSTRIPE, REAR DOOR OUTSIDE, LOWER RH
75978HSTRIPE, REAR DOOR OUTSIDE, LOWER LH
75979CSTRIPE, REAR DOOR, OUTSIDE UPPER RH
75987FSTRIPE, REAR DOOR, OUTSIDE, RH
75988CSTRIPE, REAR DOOR, OUTSIDE LH
75989CSTRIPE, REAR DOOR, OUTSIDE UPPER LH
9010908295
main90109-08295
9011906983
main90119-06983
9016140020
main90161-40020
9016750022
main90167-50022
9038708171
main90387-08171
9167380616
main91673-80616
91673A0620
main91673-A0620
43 parts on this diagram · 2 diagrams in section
