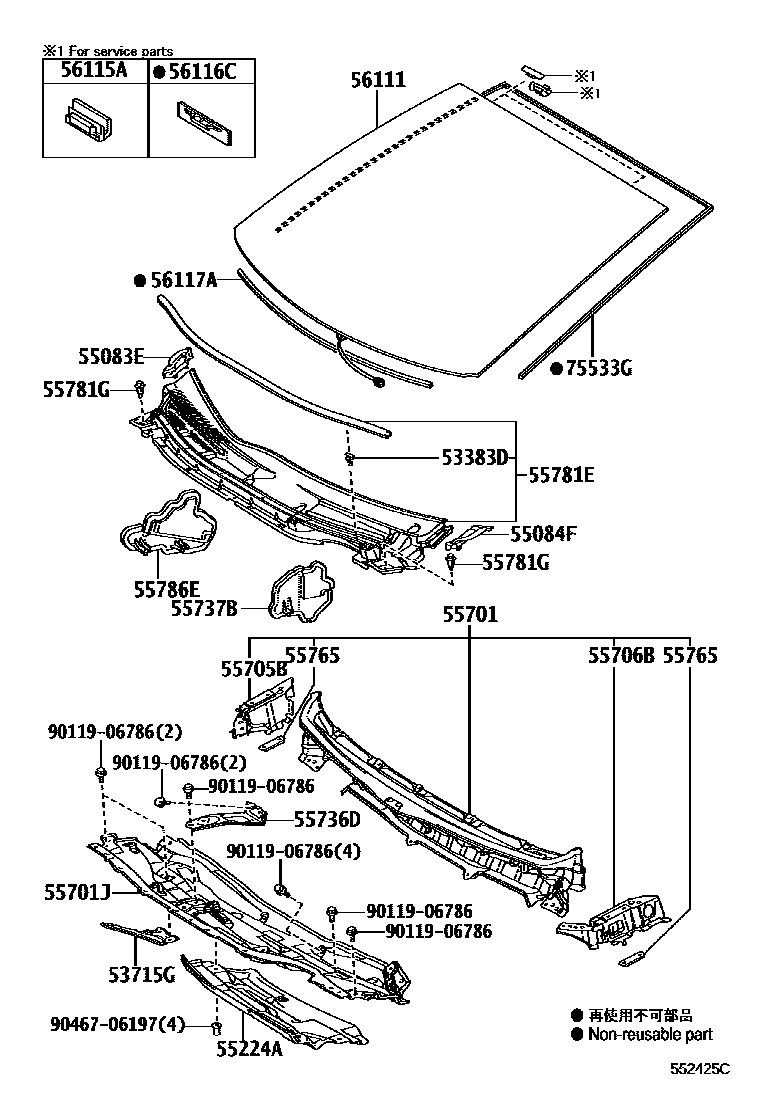

COWL PANEL & WINDSHIELD GLASS

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150iZVW35200912

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-47010iZVW35200912

55083EVENTILATOR SUB-ASSY, COWL SIDE, RH

main55083-47020iZVW35200912

55084FVENTILATOR SUB-ASSY, COWL SIDE, LH

main55084-47020iZVW35200912

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-47010iZVW35200912-201007

sub55224-47011

main55224-47011iZVW35201008

55701PANEL SUB-ASSY, COWL

main55700-47170iZVW35200912

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-47030iZVW35200912-201007

sub55701-47031

main55701-47031iZVW35201008

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-47020iZVW35200912

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-47020iZVW35200912

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-47030iZVW35200912

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-47050iZVW35200912

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010iZVW35200912

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-47110iZVW35200912

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0iZVW35200912

BLACK

sub90467-07041

sub90467-07076

sub90467-A0016

55786EPLATE, COWL TOP VENTILATOR LOUVER

main55734-47030iZVW35200912

56111GLASS, WINDSHIELD

main56101-47915iZVW35200912

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100iZVW35200912

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050iZVW35200912

56117ADAM, WINDOW GLASS ADHESIVE

main56117-47030iZVW35200912

L=1227

sub56117-50140

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-47050iZVW35200912

9011906786

main90119-06786

9046706197

main90467-06197

22 parts on this diagram · 1 diagram in section
