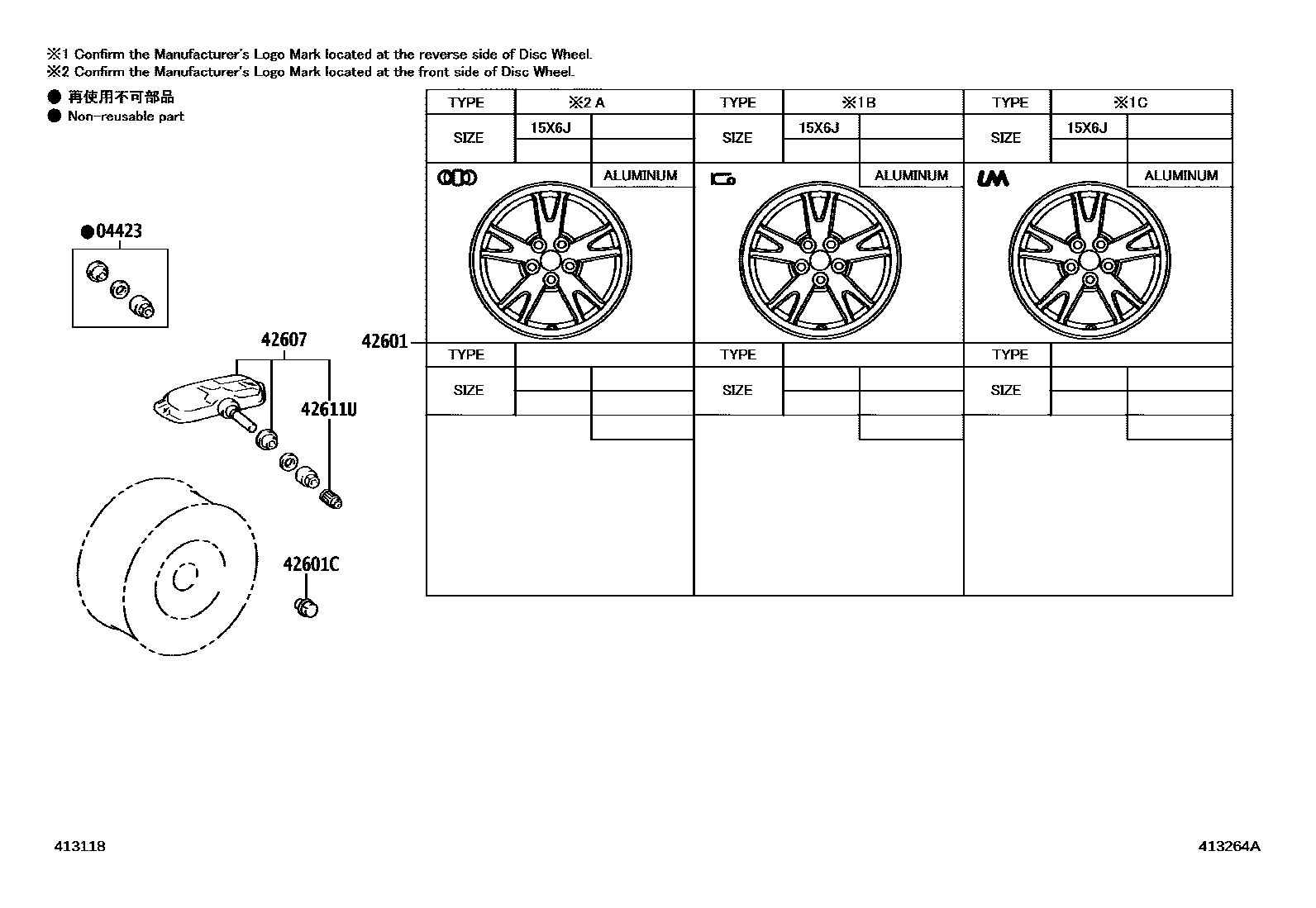

DISC WHEEL & WHEEL CAP

0001 1 0002 1

04423FITTING KIT, TIRE PRESSURE MONITOR OR BALANCER VALVE

main04423-33030iZVW35200912

sub04423-33060

42601WHEEL, DISC

main42611-47110iZVW35200912

15X6J, #,TYPE A:REFER ILLUST.

sub42611-47140

main42611-47120iZVW35200912

15X6J, #,TYPE B:REFER ILLUST.

main42611-47130iZVW35200912

15X6J, #,TYPE C:REFER ILLUST.

sub42611-47120

42601CNUT, HUB (FOR AXLE)

main90942-01033iZVW35200912

42607VALVE SUB-ASSY, TIRE PRESSURE MONITOR

main42607-33011iZVW35200912

sub42607-33012

42611UCAP, TIRE VALVE

main90942-05039iZVW35200912

5 parts on this diagram · 2 diagrams in section
