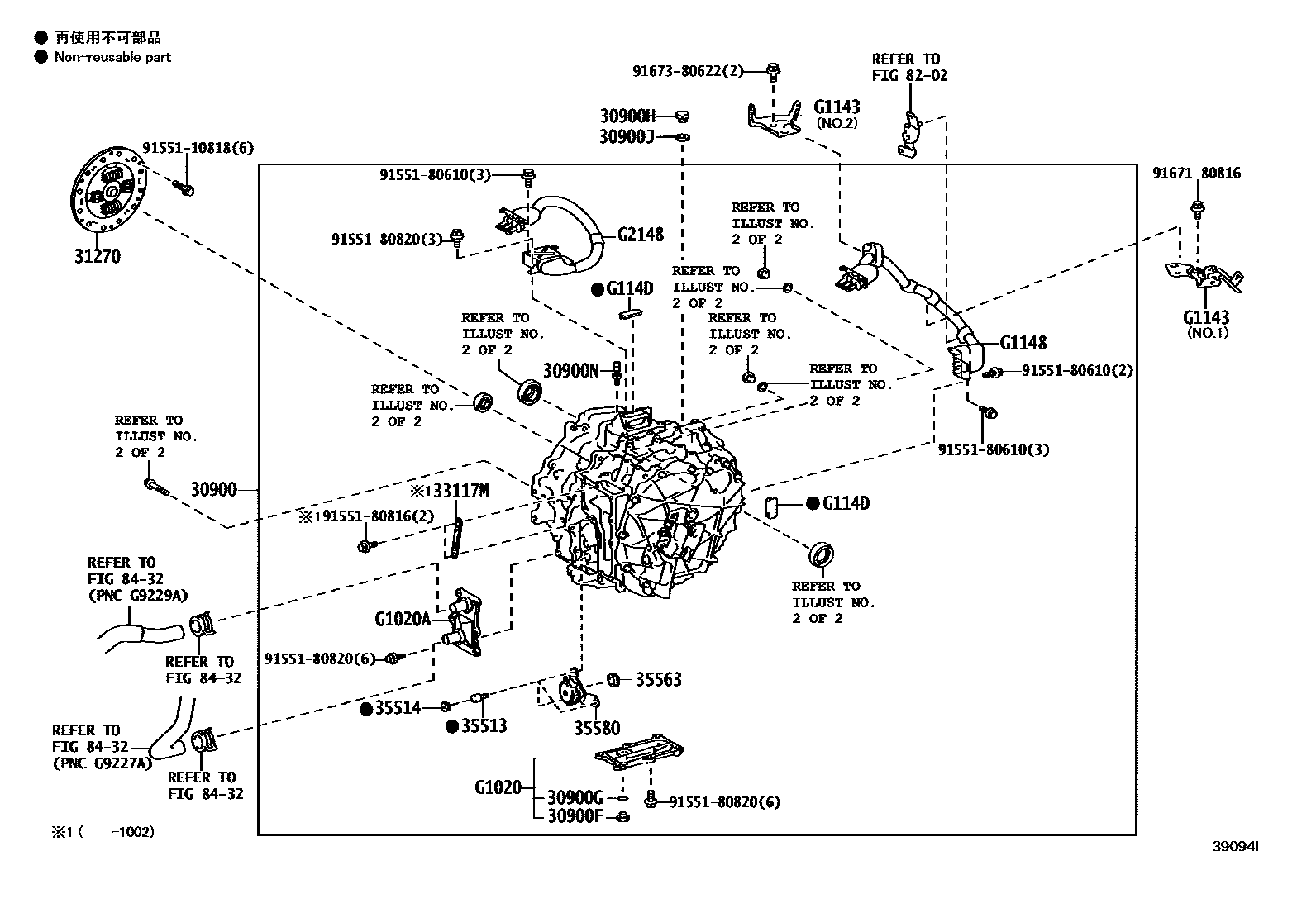

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-47060iZVW35200912-201010

sub30900-47061

30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)

main90341-18016iZVW35200912

30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZVW35200912

30900HPLUG, W/HEAD STRAIGHT SCREW, NO.3(FOR TRANSAXLE HSG & CASE)

main90341-18060iZVW35200912

30900JGASKET, NO.3(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iZVW35200912

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iZVW35200912

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-47040iZVW35200912

sub31270-47060

33117MBRACKET, STIFFENER PLATE

main33117-47010iZVW35200912-201002

35513BOLT, SHIFT CONTROL ACTUATOR

main35513-47010iZVW35200912

35514CAP, SHIFT CONTROL ACTUATOR BOLT

main35514-47010iZVW35200912

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-75010iZVW35200912

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-47020iZVW35200912

8202

8432

G1020COVER ASSY, MOTOR WATER JACKET, NO.1

mainG102047010iZVW35200912

G1020ACOVER ASSY, MOTOR WATER JACKET, NO.2

mainG102047020iZVW35200912

G1143BRACKET, MOTOR CABLE

mainG114347030iZVW35200912

NO.1

mainG114347040iZVW35200912

NO.2

G1148CABLE, MOTOR

mainG114847040iZVW35200912-201012

subG1148-47041

G114DCAP, MOTOR CABLE TERMINAL

mainG114D47020iZVW35200912

subG114D-47021

G2148CABLE, GENERATOR

mainG214847040iZVW35200912

subG2148-47041

9155110818

main91551-10818

9155180610

main91551-80610

9155180816

main91551-80816

9155180820

main91551-80820

9167180816

main91671-80816

9167380622

main91673-80622

26 parts on this diagram · 2 diagrams in section
