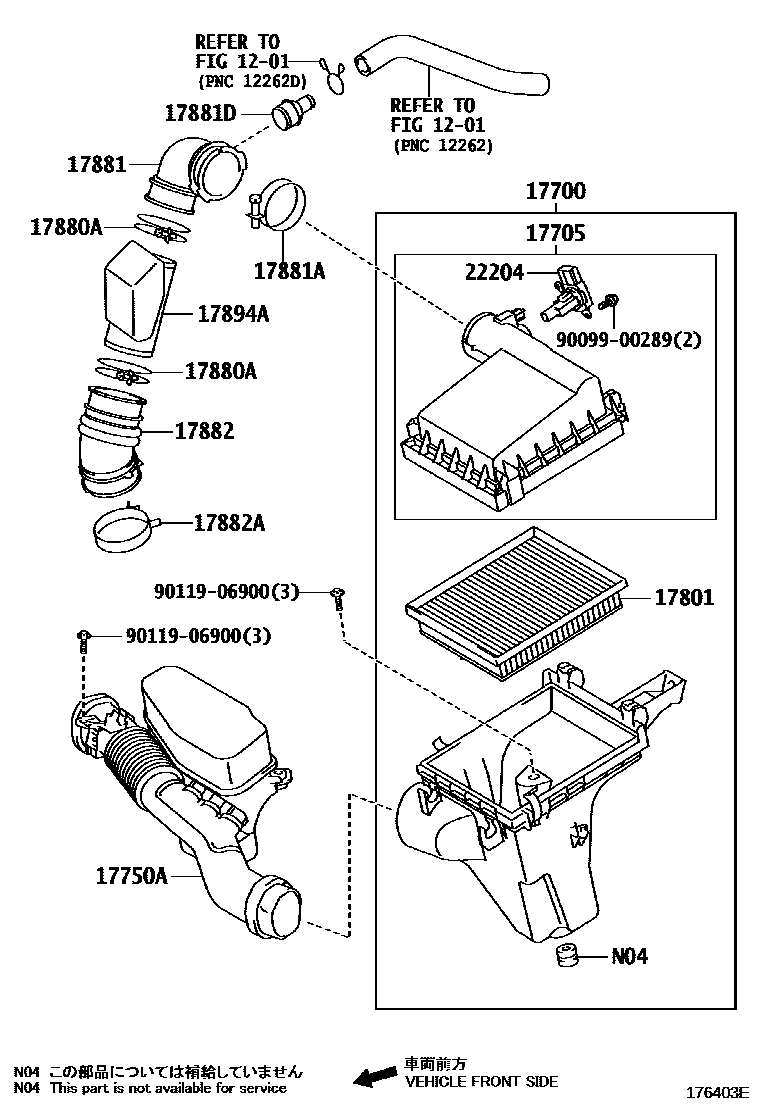

AIR CLEANER

1201

17700CLEANER ASSY, AIR

main17700-37260i2ZRFXE..ZVW35200912

sub17700-37261

17705CAP SUB-ASSY, AIR CLEANER

main17705-37130i2ZRFXE..ZVW35200912

sub17705-37131

17750AINLET ASSY, AIR CLEANER

main17750-37010i2ZRFXE..ZVW35200912

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-37020i2ZRFXE..ZVW35200912

sub17801-37021

17880ACLAMP, HOSE

main96111-10750i2ZRFXE..ZVW35200912

17881HOSE, AIR CLEANER, NO.1

main17881-37120i2ZRFXE..ZVW35200912

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10650i2ZRFXE..ZVW35200912

17881DTUBE, UNION(FOG AIR CLEANER HOSE)

main90904-06008i2ZRFXE..ZVW35200912

17882HOSE, AIR CLEANER, NO.2

main17882-37040i2ZRFXE..ZVW35200912

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90466-62002i2ZRFXE..ZVW35200912

17894ARESONATOR, INTAKE AIR, NO.2

main17894-37010i2ZRFXE..ZVW35200912

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-37010i2ZRFXE..ZVW35200912

sub22204-28010

9009900289

main90099-00289

9011906900

main90119-06900

15 parts on this diagram · 1 diagram in section
