ENGINE OVERHAUL GASKET KIT

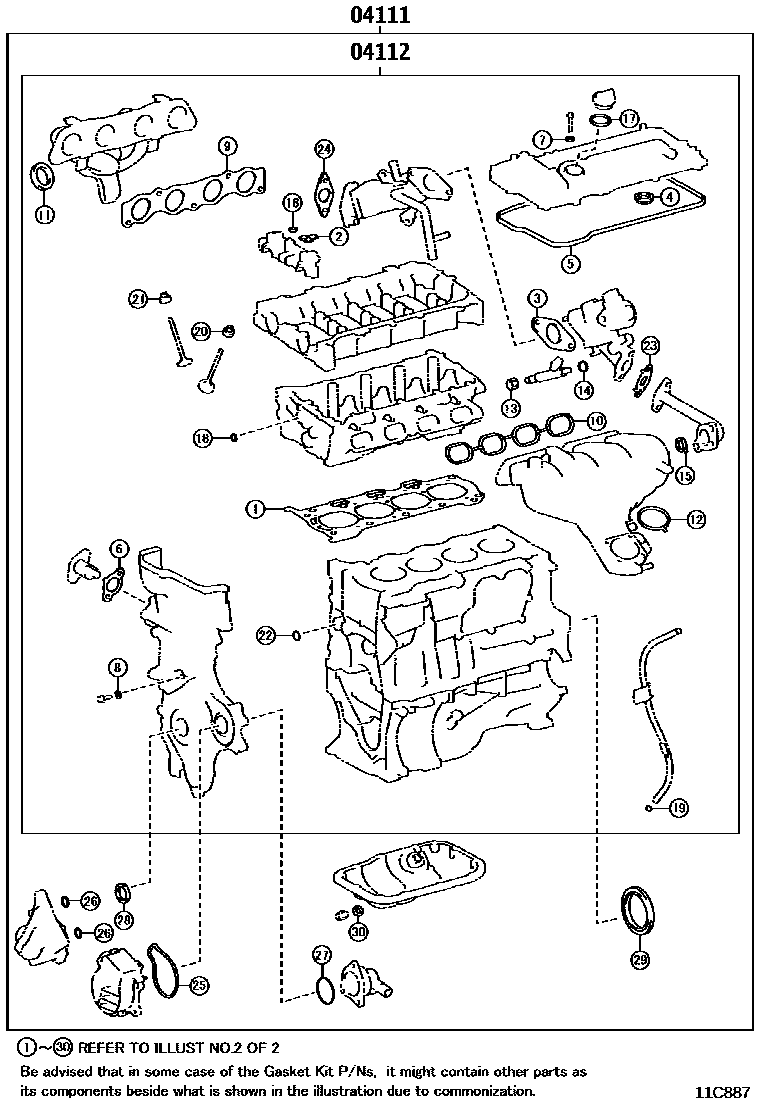

Parts diagram
04111GASKET KIT, ENGINE OVERHAUL
main04111-37310i200912-201010
sub04111-37312
04112GASKET KIT, ENGINE VALVE GRIND
main04112-37250i200912-201010
sub04112-37251

2 parts on this diagram · 2 diagrams in section
