WIRING & CLAMP

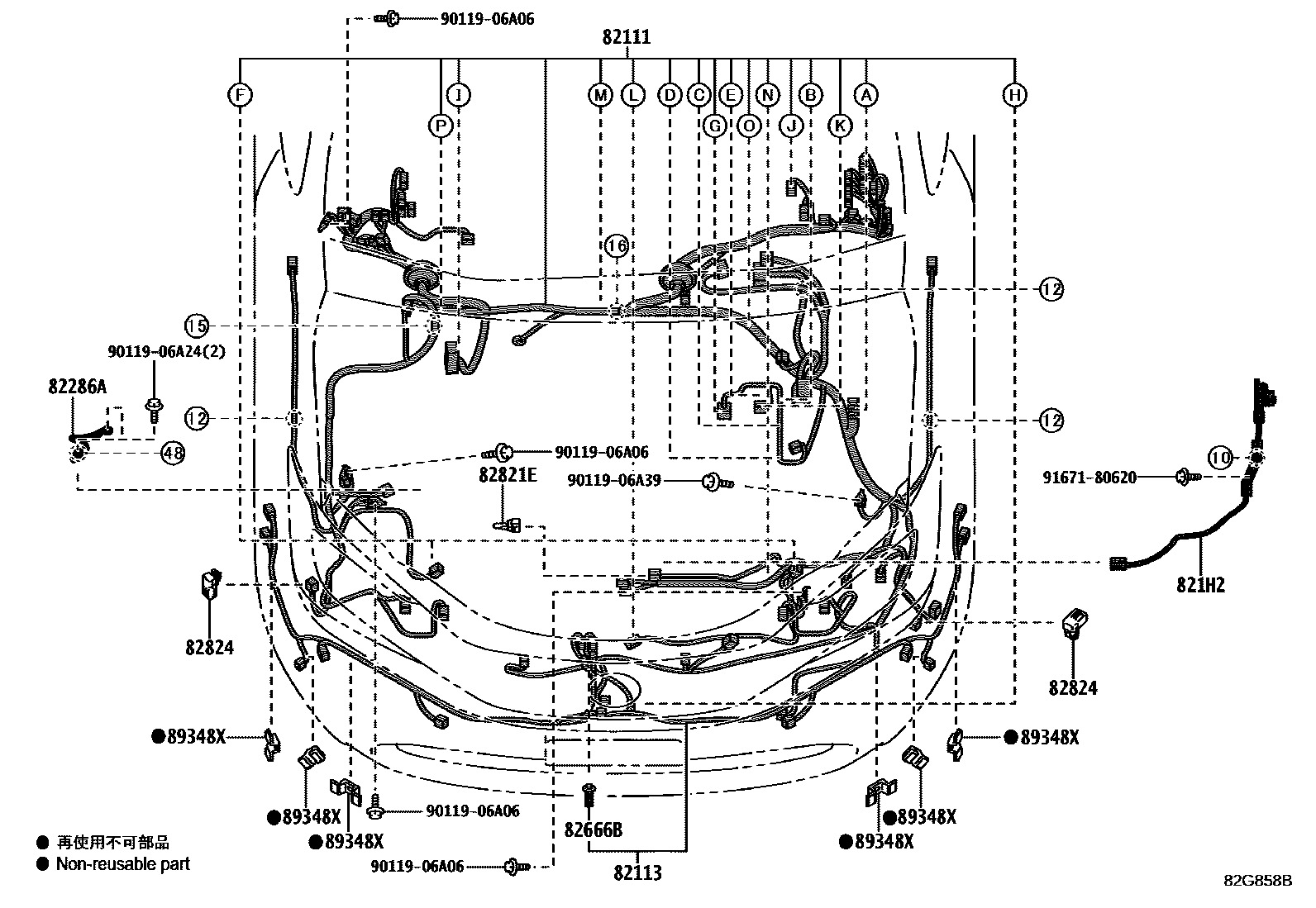

Parts diagram

82111WIRE, ENGINE ROOM MAIN

main82111-4EB60i202212-202409

main82111-4EB80i202212-202409

main82111-4EC81i202409-202507

main82111-4EY40i202303-202409

main82111-4EY60i202303-202409

main82111-4EY81i202409-202507

main82111-4EZ01i202409-202507

main82111-4F170i202409-202507

main82111-4F190i202409-202507

82113WIRE, ENGINE ROOM, NO.3

main82113-47320i202212

main82113-47590i202212

821H2WIRE, HV AIR CONDITIONER

main821H2-16020i202212

main821H2-16030i202212

82286AWIRE, EARTH, NO.2

main82286-12010i202212

82666BHOLDER, CONNECTOR NO.3

main82666-42720i202212

82821ECOVER, CONNECTOR

82824CONNECTOR, WIRING HARNESS

main82824-47390i202409-202507

ACTIVE SAFETY PACKAGE-TSS3 EXPANDED&BACK MONITOR-WITH(PANORAMIC VIEW MONITOR)

main82824-47390i202409

KOREA SPEC

main82824-47390i202409

ACTIVE SAFETY PACKAGE-TSS3 EXPANDED

89348XCLIP, ULTRASONIC SENSOR, FRONT

main89348-50050i202212

KOREA SPEC&COLD AREA SPEC(USA)

9011906A06

main90119-06A06

9011906A24

main90119-06A24

9011906A39

main90119-06A39

9167180620

main91671-80620

12 parts on this diagram · 21 diagrams in section
