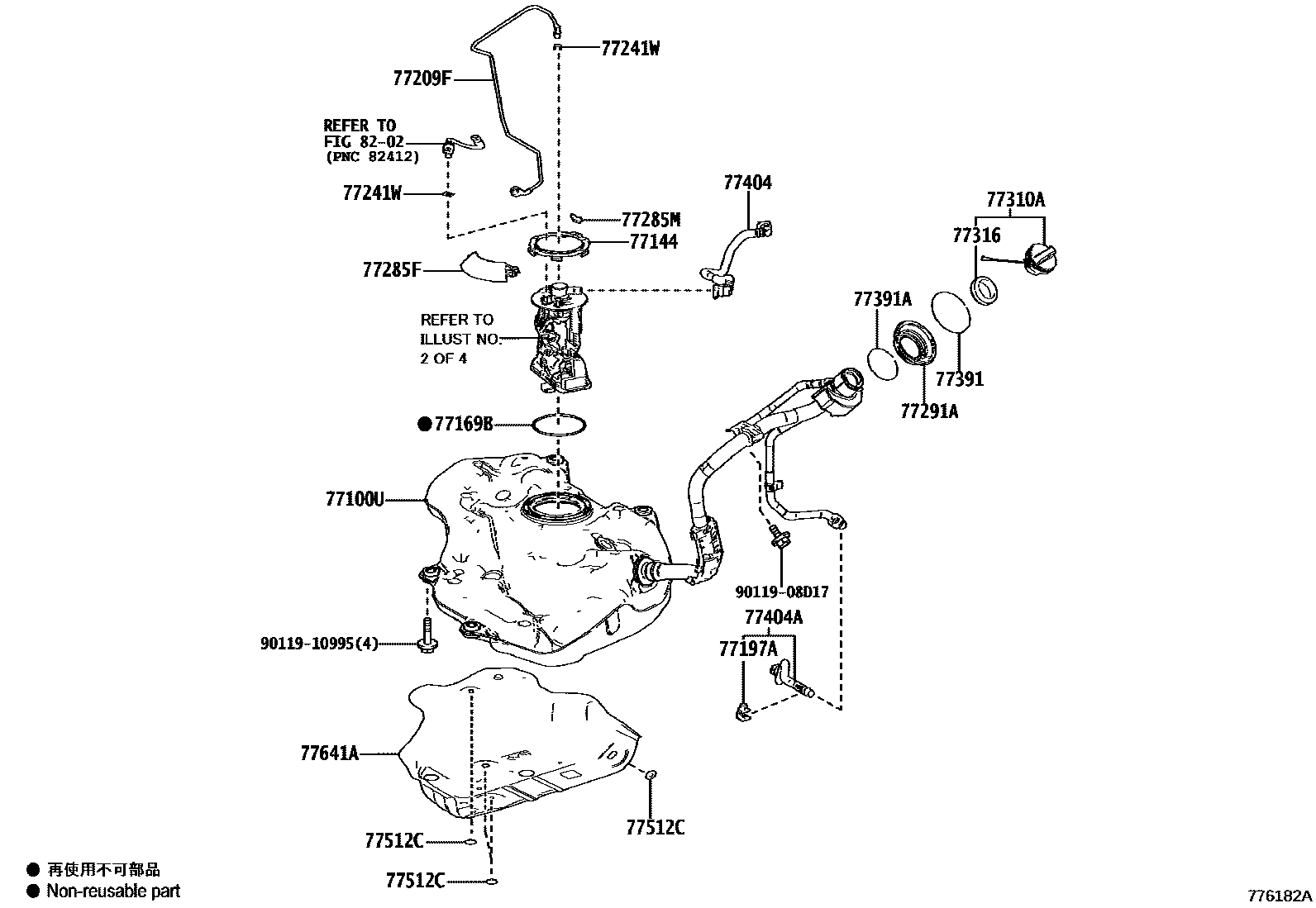

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL PUMP 0005 1FUEL PUMP 0006 1FUEL PUMP 0007 1FUEL TUBE 0008 1FUEL TUBE 0009 1FUEL LID OPENER

77100UTANK SUB-ASSY, FUEL

main77001-47290iMXWH60202212-202309

sub77001-47291

main77001-47291iMXWH60202310

main77001-47300iMXWH61202303

main77001-47340iMXWH65202212-202309

sub77001-47341

main77001-47341iMXWH65202310

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iMXWH6#202212

77169BGASKET, FUEL SUCTION TUBE SET, NO.1

main77169-47040iMXWH6#202212

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-47060iMXWH60,65202212

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-47140iMXWH61202303

main77209-47160iMXWH60,65202212

77241WCLIP, TUBE JOINT

main77241-33011iMXWH61202303-202312

main77241-60550iMXWH60,65202212

77285FCLAMP, FUEL TUBE, NO.1

main77285-47160iMXWH60,65202212

77285MCLAMP, FUEL TUBE, NO.1

main77285-42240iMXWH60,65202212

main77285-47150iMXWH61202303

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-47050iMXWH6#202212

77310ACAP ASSY, FUEL TANK

main77300-53040iMXWH6#202212

77316GASKET, FUEL TANK CAP

main77316-75020iMXWH6#202212

77391RING, FUEL INLET BOX

main77391-47050iMXWH6#202212

77391ARING, FUEL INLET BOX

main77391-12020iMXWH6#202212

77404HOSE SUB-ASSY, FUEL TANK VENT

main77404-47350iMXWH65202212

main77404-47390iMXWH60202212

main77404-47410iMXWH61202303-202305

sub77404-47411

main77404-47411iMXWH61202306

77404AHOSE SUB-ASSY, FUEL TANK VENT

main77404-47400iMXWH60,65202212

77512CBRACKET, FUEL TANK

main77512-35140iMXWH60,65202212

77641APROTECTOR, FUEL TANK, NO.1

main77641-47100iMXWH65202212

main77641-47140iMXWH60202212

main77641-47150iMXWH61202303

8202

9011908D17

main90119-08D17

9011910995

main90119-10995

20 parts on this diagram · 9 diagrams in section
