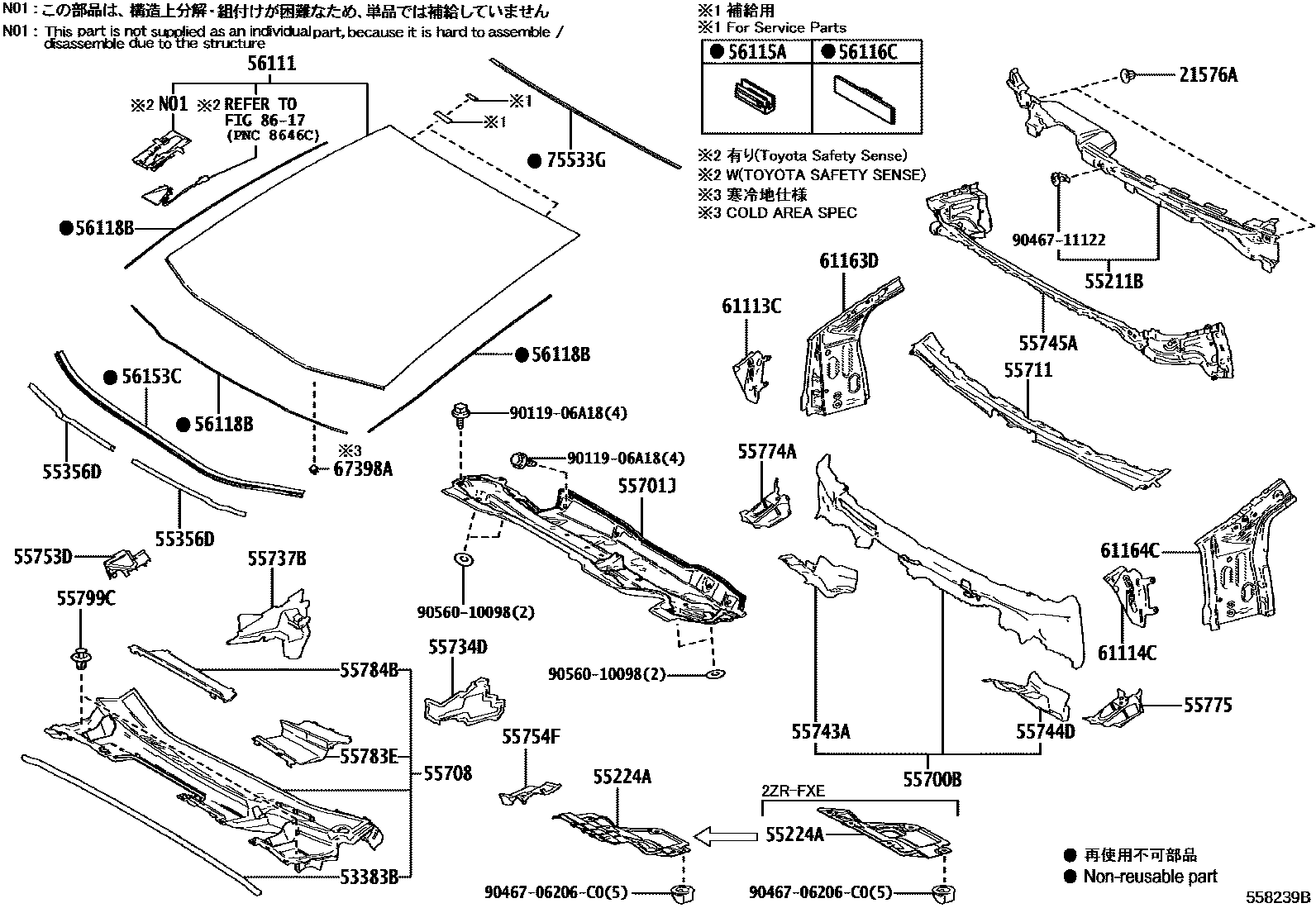

COWL PANEL & WINDSHIELD GLASS
21576ACLIP
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700BCOWL ASSY
55701JPANEL SUB-ASSY, COWL TOP, OUTER
KOREA SPEC
55708LOUVER SUB-ASSY, COWL TOP VENTILATOR
KOREA SPEC
KOREA SPEC&COLD AREA SPEC(USA)
55711PANEL, COWL TOP, OUTER
55734DPLATE, WATER GUARD
KOREA SPEC&COLD AREA SPEC(USA)
KOREA SPEC
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
KOREA SPEC&COLD AREA SPEC(USA)
KOREA SPEC
55743AEXTENSION, COWL TO COWL SIDE, RH
55744DEXTENSION, COWL TO COWL SIDE, LH
55745AREINFORCEMENT, COWL TOP, INNER
55753DSHIELD, COWL WATER EXTRACT, RH
KOREA SPEC&COLD AREA SPEC(USA)
KOREA SPEC
55754FSHIELD, COWL WATER EXTRACT, LH
KOREA SPEC&COLD AREA SPEC(USA)
KOREA SPEC
55774ABRACKET, COWL TOP INNER TO PILLAR BRACE, RH
55775BRACKET, COWL TOP INNER TO PILLAR BRACE, LH
55783ELOUVER, COWL TOP VENTILATOR, CENTER
KOREA SPEC&COLD AREA SPEC(USA)
KOREA SPEC
55784BLOUVER, COWL TOP VENTILATOR, CENTER NO.2
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
COLD AREA SPEC(USA)
COLD AREA SPEC(USA)
KOREA SPEC&COLD AREA SPEC(USA)
KOREA SPEC&COLD AREA SPEC(USA)
KOREA SPEC
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56118BDAM, WINDOW GLASS ADHESIVE, NO.2
L=3500,COLD AREA SPEC(USA)
L=3500
L=3500,KOREA SPEC&COLD AREA SPEC(USA)
L=3500,KOREA SPEC
56153CMOULDING, FRONT WINDOW, INNER CENTER
KOREA SPEC&COLD AREA SPEC(USA)
KOREA SPEC
61113CPANEL, SIDE, INNER RH
61114CPANEL, SIDE, INNER LH
61163DPILLAR, FRONT BODY, LOWER INNER RH
61164CPILLAR, FRONT BODY, LOWER INNER LH
67398AGUIDE(FOR WINDOW DEFOGGER WIRE)
KOREA SPEC&COLD AREA SPEC(USA)
KOREA SPEC
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906A18
main90119-06A18
9046706206C0
main90467-06206C0
9046711122
main90467-11122
9056010098
main90560-10098
37 parts on this diagram · 1 diagram in section
