FRONT FENDER APRON & DASH PANEL

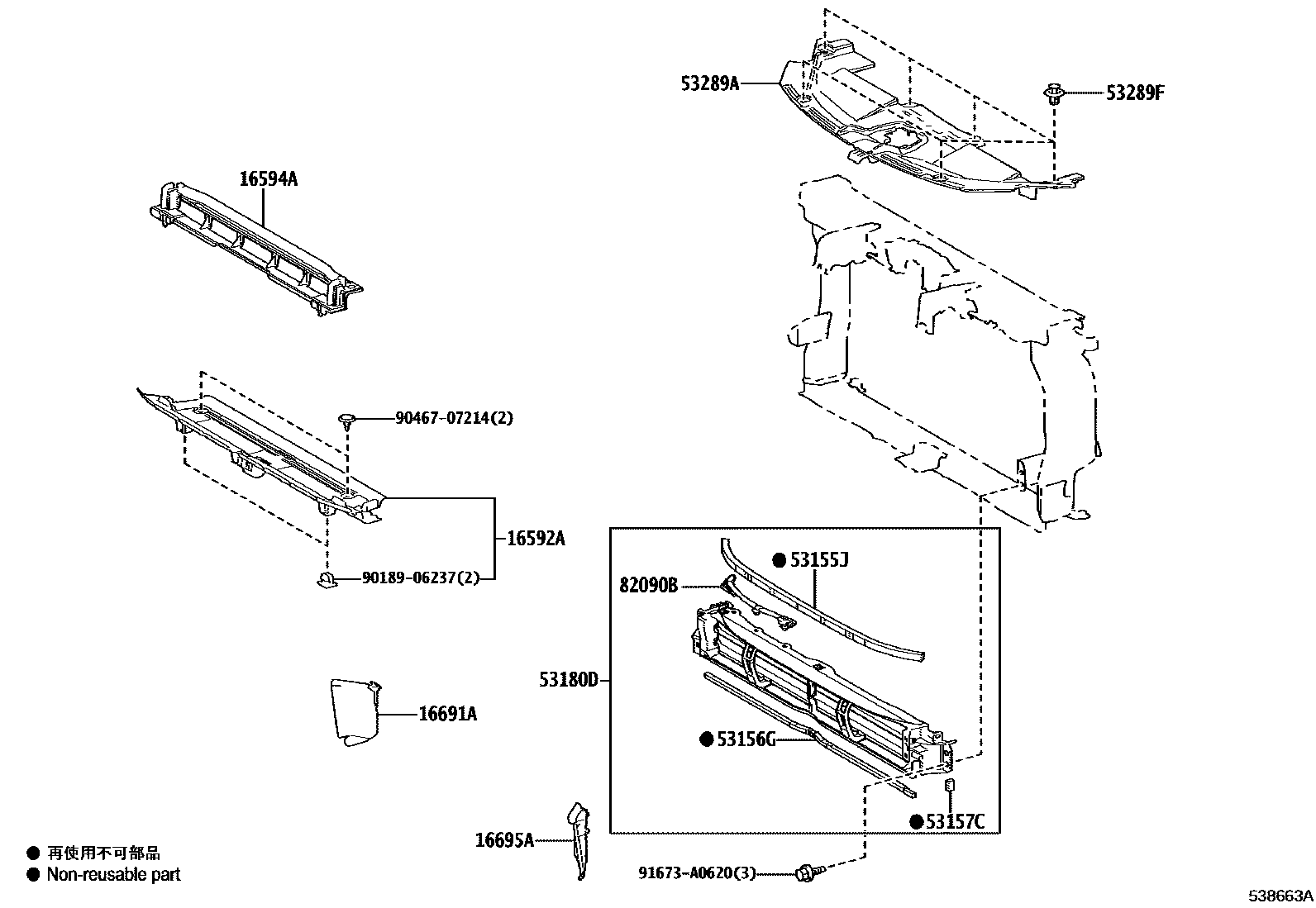

0001 1AIRGUIDE & RADIATOR SUPPORT C0002 1RADIATOR SUPPORT & FENDER APR0003 1DASH PANEL

16592AGUIDE, RADIATOR AIR, NO.3

main16592-37130iM20AFXS..MXWH6#202212

16594AGUIDE, RADIATOR AIR, NO.2

main16594-24040iM20AFXS..MXWH60,65202212

main16594-37050iM20AFXS..MXWH61202303

16691APLATE, RADIATOR SIDE AIR GUIDE, FRONT RH

main16691-37110iM20AFXS..MXWH6#202212

16695APLATE, RADIATOR SIDE AIR GUIDE, FRONT LH

main16695-37050iM20AFXS..MXWH6#202212

53155JSEAL, RADIATOR GRILLE, NO.1

main53155-47070iMXWH6#202212

53156GSEAL, RADIATOR GRILLE, NO.2

main53156-47040iMXWH6#202212

53157CSEAL, RADIATOR GRILLE, NO.3

main53157-47030iMXWH6#202212

53180DSHUTTER ASSY, RADIATOR

main53180-47130iMXWH6#202212-202311

sub53180-47131

main53180-47131iMXWH6#202312

53289ACOVER, RADIATOR SUPPORT OPENING

main53289-47110iMXWH6#202212

53289FCLIP(FOR RADIATOR SUPPORT OPENING COVER)

main90467-07214iMXWH6#202212

82090BWIRE ASSY, EXTENSION

main82090-47020iMXWH6#202212

9018906237

main90189-06237

9046707214

main90467-07214

91673A0620

main91673-A0620

14 parts on this diagram · 3 diagrams in section
