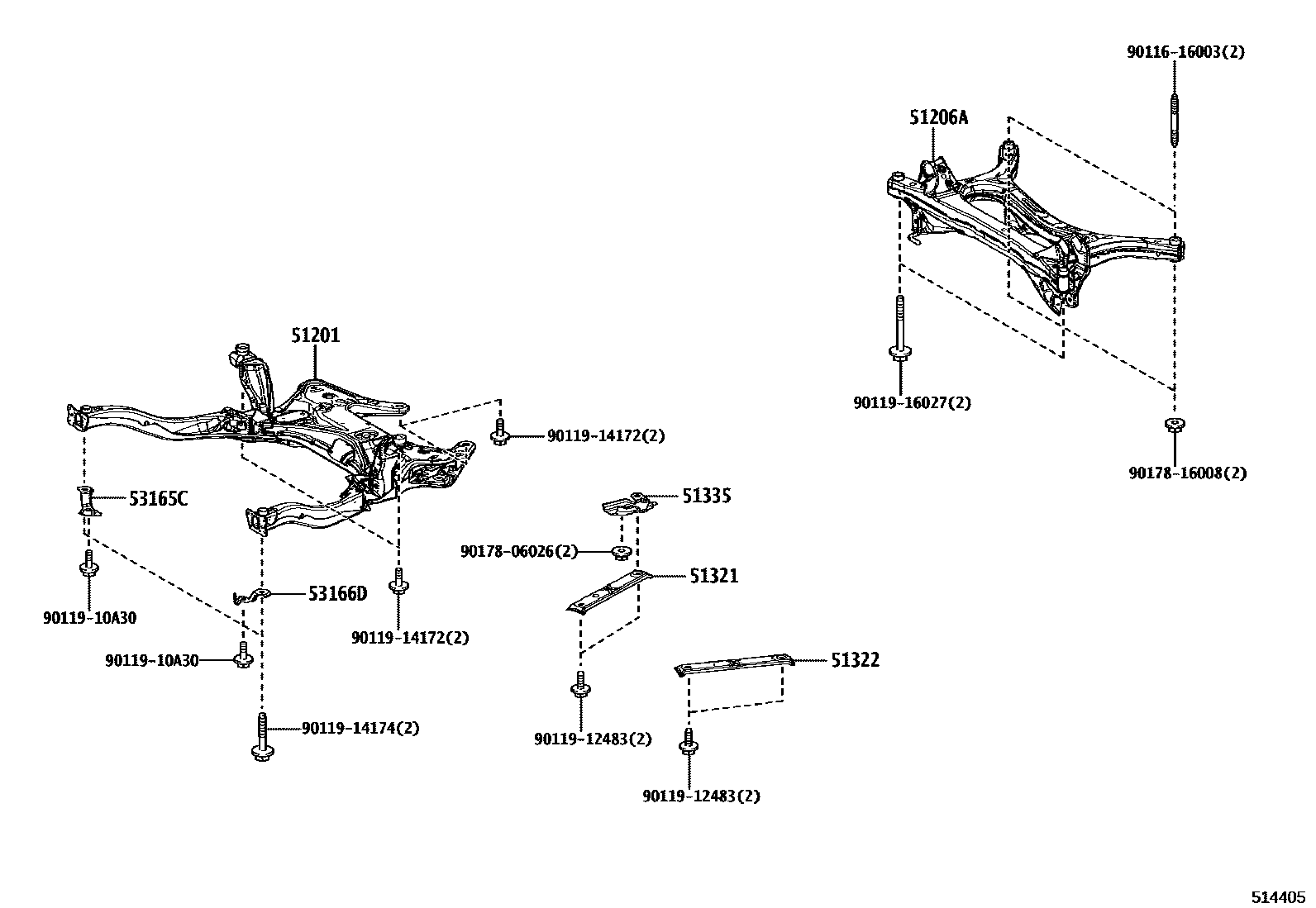

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47050iMXWH6#202212

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-12201iMXWH60202212

main51206-12211iMXWH65202212

main51206-47041iMXWH61202303

51321GUSSET, CROSSMEMBER, NO.2 RH

main51321-47010iMXWH6#202212

51322GUSSET, CROSSMEMBER, NO.2 LH

main51321-47010iMXWH6#202212

51335BRACKET, FRONT FRAME TUBE CLAMP, RH

main51335-47010iMXWH6#202212

53165CSUPPORT, RADIATOR, CENTER RH

main53165-47020iMXWH6#202212

53166DSUPPORT, RADIATOR, CENTER LH

main53166-47020iMXWH6#202212

9011616003

main90116-16003

9011910A30

main90119-10A30

9011912483

main90119-12483

9011914172

main90119-14172

9011914174

main90119-14174

9011916027

main90119-16027

9017806026

main90178-06026

9017816008

main90178-16008

15 parts on this diagram · 6 diagrams in section
