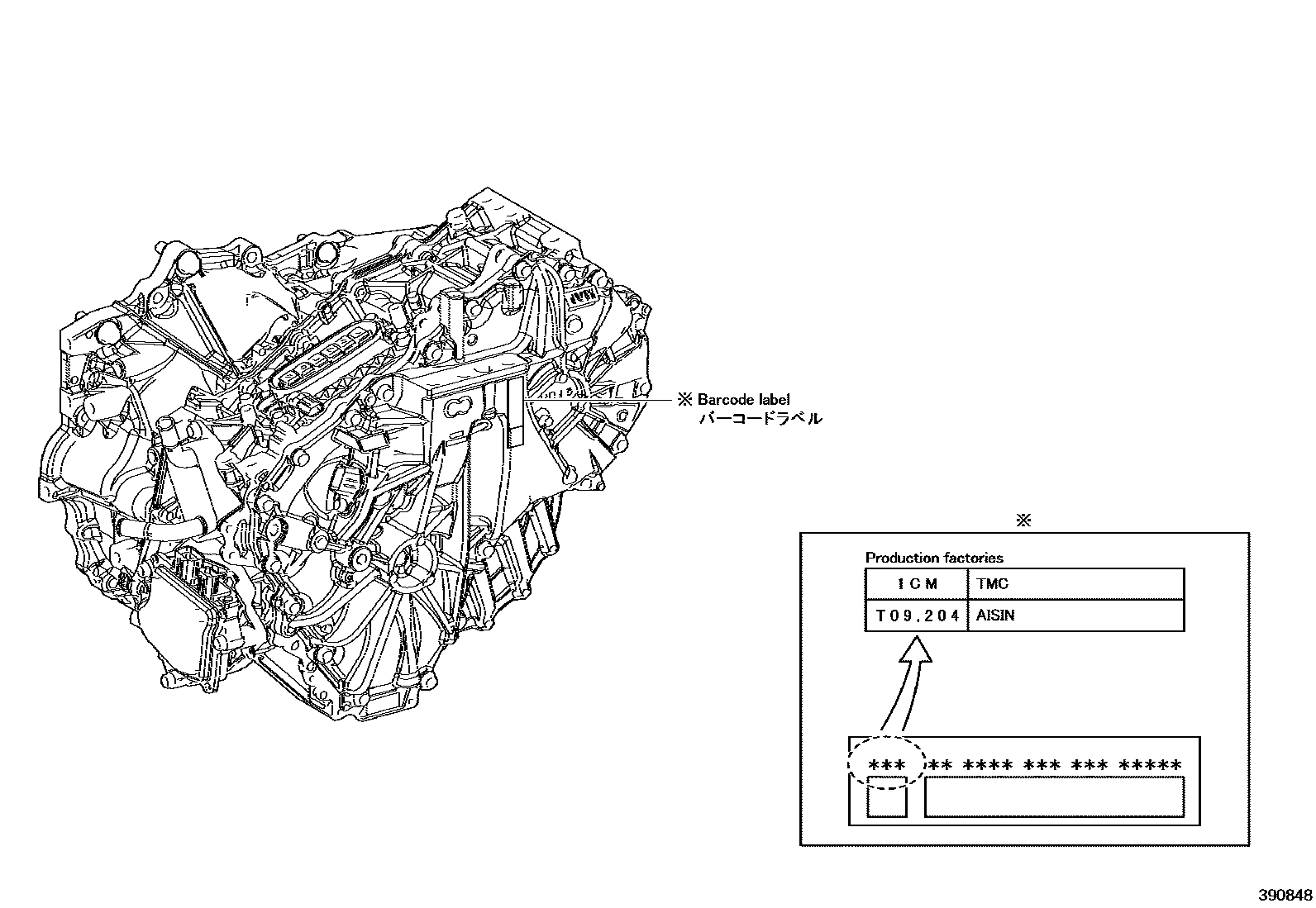

TRANSAXLE ASSY(HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1REAR TRACTION MOTOR

30600TO RING, TRANSAXLE CASE, NO.1

main35697-28030iMXWH60,65202212

30900TRANSAXLE ASSY, HYBRID VEHICLE

main30900-47200iMXWH60,65202306

TOYOTA:REF.ILLUST

main30900-47210iMXWH61202303

main30900-47230iMXWH60,65202212

AISIN:REF.ILLUST

30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)

main90341-18060iMXWH6#202212

30900EGASKET(FOR TRANSAXLE HOUSING & CASE)

main90430-18008iMXWH6#202212

30900NPLUG, BREATHER(FOR TRANSAXLE)

main90930-03201iMXWH6#202212

30900PPLUG, DRAIN(HEV)

main90341-18016iMXWH6#202212

30900QPLUG, FILLER(HEV)

main90341-18090iMXWH6#202212

30900RGASKET, DRAIN PLUG(HEV)

main90430-18008iMXWH6#202212

30900SGASKET, FILLER PLUG(HEV)

main90430-18008iMXWH6#202212

30900TPLUG, BREATHER(FOR REAR TRACTION MOTOR)

main90930-03247iMXWH65202212

31270DAMPER ASSY, TRANSMISSION INPUT

main31270-63010iMXWH6#202212

35541BRACKET, SHIFT CONTROL ACTUATOR

main35541-28020iMXWH60,65202212

35563SEAL, SHIFT CONTROL ACTUATOR

main35563-52010iMXWH6#202212

35580ACTUATOR ASSY, SHIFT CONTROL

main35580-52011iMXWH6#202212

35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)

main90311-27012iMXWH6#202212

41196BDAMPER, DIFFERENTIAL DYNAMIC

main41196-16010iMXWH65202212-202308

41198CDAMPER, DIFFERENTIAL MASS

main41198-16010iMXWH65202212

41309ESEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT RH)

main90311-38103iMXWH65202212

41309KSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, RH

main41309-28080iMXWH65202501

41309LSHAFT SUB-ASSY, DIFFERENTIAL SIDE GEAR, LH

main41309-28071iMXWH65202212

41309NSEAL, TYPE T OIL(FOR DIFFERENTIAL SIDE GEAR SHAFT LH)

main90311-37008iMXWH65202212

41336MDUST COVER, DIFFERENTIAL SIDE GEAR SHAFT, LH

main41336-28070iMXWH65202212

41651GCUSHION, DIFFERENTIAL MOUNT

main41651-16020iMXWH65202212

41653DSTOPPER, DIFFERENTIAL MOUNT,UPPER

main41653-16010iMXWH65202212

41654BSTOPPER, DIFFERENTIAL MOUNT,LOWER

main41654-16010iMXWH65202212

4302

52380FSUPPORT ASSY, DIFFERENTIAL, FRONT

main52380-16020iMXWH65202212

8202

82821TCOVER, CONNECTOR

main82821-47510iMXWH65202212

82823MCAP, TERMINAL

main82823-28110iMXWH6#202212

8431

8432

89435BBRACKET, CONNECTOR COVER

main89435-12010iMXWH65202212

G1050MOTOR ASSY, RR TRACTION W/TRANSAXLE

mainG105028040iMXWH65202212-202412

mainG105028041iMXWH65202501

G1050BPLUG, DRAIN(FOR REAR TRACTION MOTOR)

main90341-18092iMXWH65202212

G1050CPLUG, FILLER(FOR REAR TRACTION MOTOR)

main90341-18092iMXWH65202212

G1050DGASKET, DRAIN PLUG(FOR REAR TRACTION MOTOR)

main90430-18008iMXWH65202212

G1050EGASKET, FILLER PLUG(FOR REAR TRACTION MOTOR)

main90430-18008iMXWH65202212

G1143BRACKET, MOTOR CABLE

mainG114347070iMXWH65202212

G1143FBRACKET, MOTOR CABLE, NO.2

mainG114347090iMXWH65202212

G1143GBRACKET, MOTOR CABLE, NO.3

mainG114347100iMXWH65202212

G1143MBRACKET, MOTOR CABLE, NO.4

mainG114347110iMXWH65202212

G1143NBRACKET, MOTOR CABLE, NO.5

mainG114347120iMXWH65202212

G1148CABLE, MOTOR

mainG114863010iMXWH6#202212-202411

mainG114863011iMXWH6#202412

G1149CABLE(FOR REAR TRACTION MOTOR)

mainG114947020iMXWH65202212

G114CPROTECTOR, MOTOR CABLE

mainG114C47020iMXWH65202212

G114DCAP, MOTOR CABLE TERMINAL

mainG114D30010iMXWH65202212

G125AACOOLER, MOTOR COOLING

mainG125A63010iMXWH6#202212

9010510591

main90105-10591

9011908D34

main90119-08D34

9011912455

main90119-12455

9011914109

main90119-14109

9030106196

main90301-06196

9030115004

main90301-15004

9034108001

main90341-08001

9034118020

main90341-18020

9034118092

main90341-18092

9043018008

main90430-18008

9052019018

main90520-19018

9155100835

main91551-00835

91551G0820

main91551-G0820

9155281250

main91552-81250

91552E1255

main91552-E1255

9155380830

main91553-80830

91641H0820

main91641-H0820

9167180612

main91671-80612

9167180620

main91671-80620

9167380616

main91673-80616

9167380620

main91673-80620

9167480616

main91674-80616

9167480620

main91674-80620
