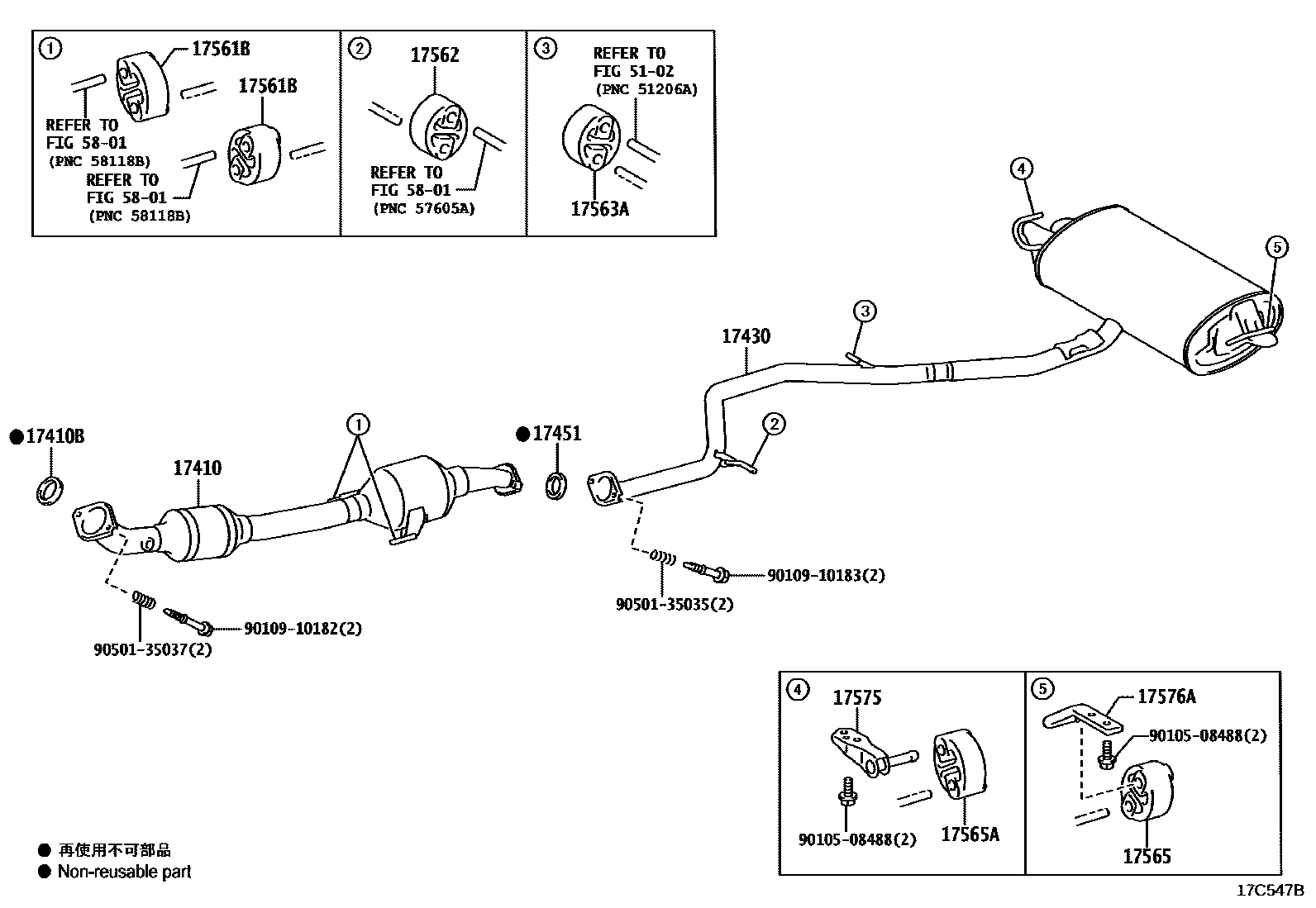

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17430PIPE ASSY, EXHAUST, TAIL
17451GASKET, EXHAUST PIPE
17561BSUPPORT, EXHAUST PIPE, NO.1
17562SUPPORT, EXHAUST PIPE, NO.2
17563ASUPPORT, EXHAUST PIPE, NO.3
17565SUPPORT, EXHAUST PIPE, NO.5
17565ASUPPORT, EXHAUST PIPE, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
5102
5801
9010508488
9010910182
9010910183
9050135035
9050135037
18 parts on this diagram · 2 diagrams in section
