SHORT BLOCK ASSEMBLY

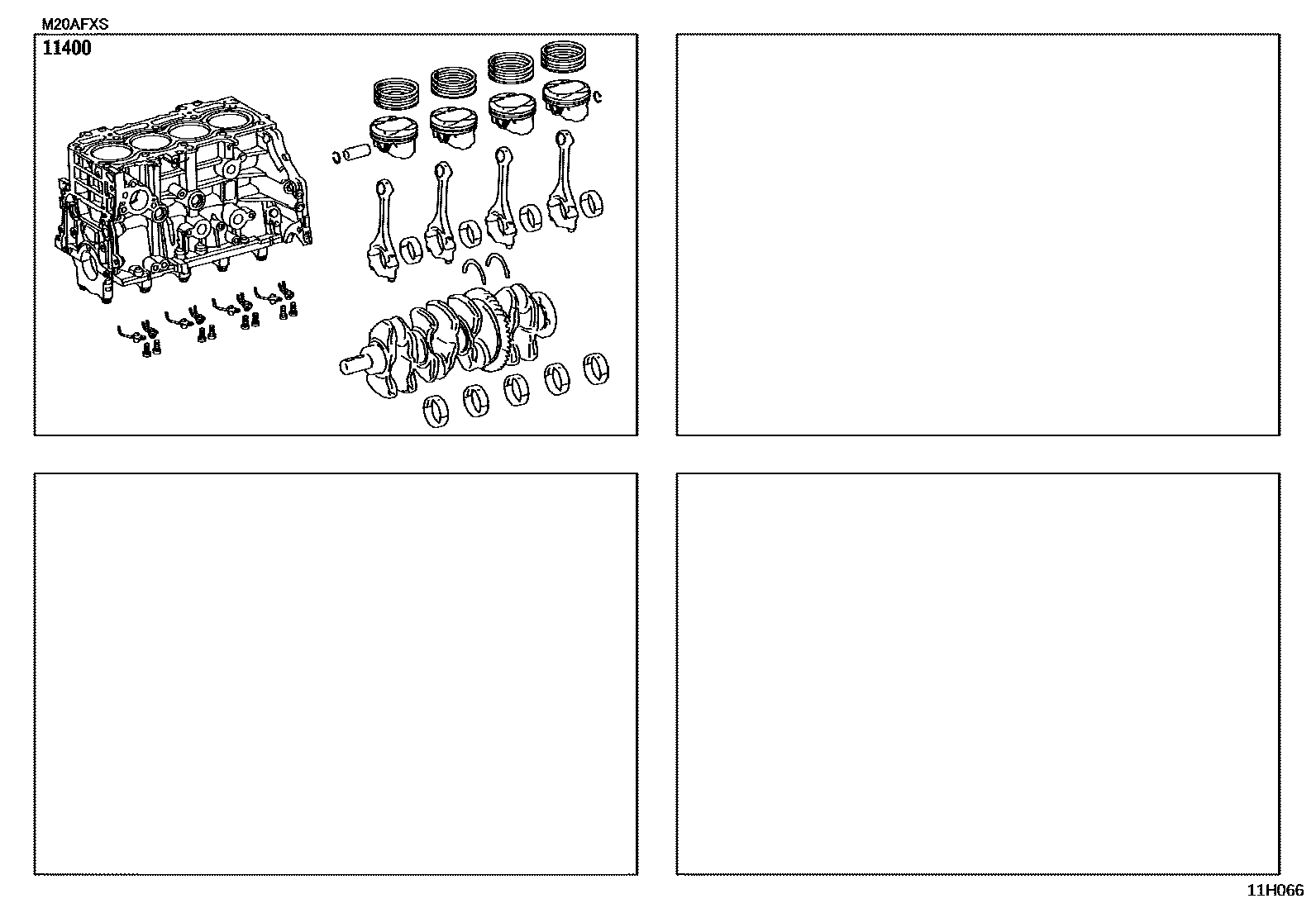

Parts diagram

11400BLOCK ASSY, SHORT

main11400-24060i202303-202409

main11400-24100i202212-202408

main11400-2U010i202409

main11400-2U030i202409

1 parts on this diagram · 1 diagram in section
