SWITCH & RELAY & COMPUTER

0001 1ENGINE 0002 1ENGINE ROOM 0003 1ENGINE ROOM RELAY BLOCK 0004 1COWL 0005 1INSTRUMENT PANEL 0006 1INSTRUMENT PANEL 0007 1STEERING 0008 1SEAT 0009 1DOOR,ROOF,FLOOR & BACK DOOR 0010 1DOOR,ROOF,FLOOR & BACK DOOR

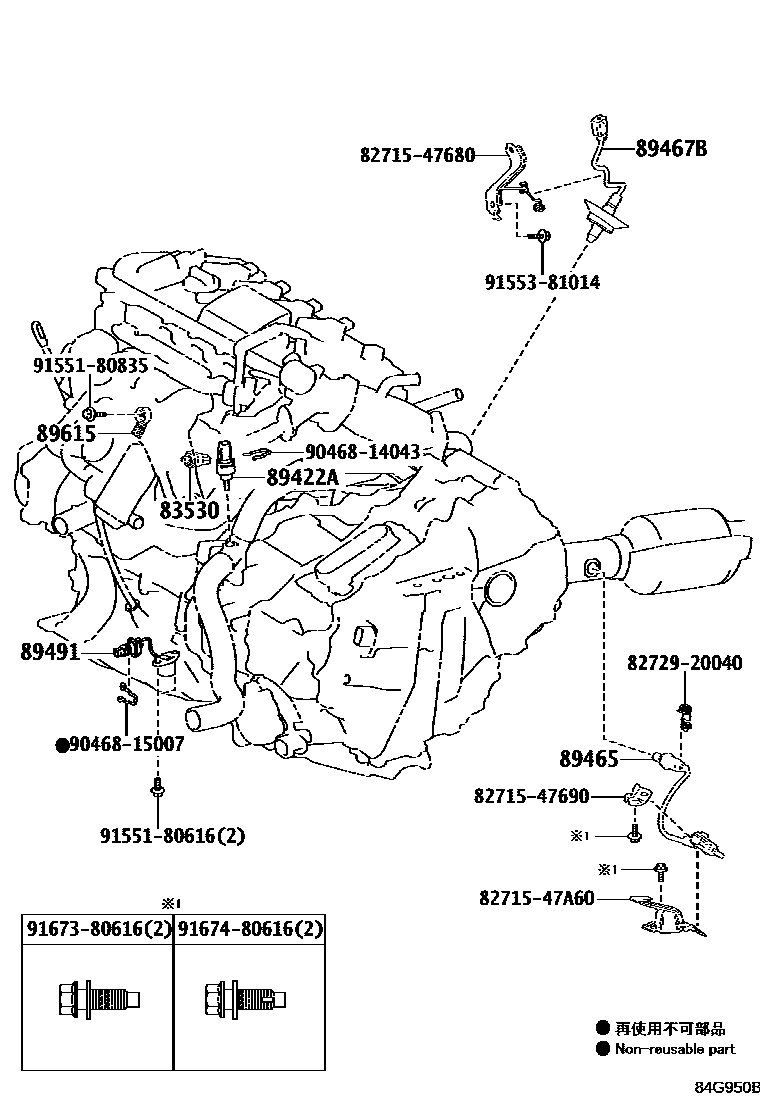

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-12060iZVW5#201511-201812

89422ASENSOR, WATER TEMPERATURE

main89422-47010iZVW5#201511-201812

89465SENSOR, OXYGEN

main89465-47090iZVW5#201511-201812

89467BSENSOR, AIR FUEL RATIO

main89467-47030iZVW5#201511-201812

89491SENSOR, ENGINE OIL LEVEL

main89491-28090iZVW5#202104-202204

sub89491-28091

main89491-28091iZVW5#202205

main89491-47010iZVW5#201511-201808

sub89491-47011

main89491-47011iZVW5#201809-202103

sub89491-28090

89615SENSOR, KNOCK CONTROL

main89615-20090iZVW5#201511-201812

8271547680BRACKET,WIRING HARNESS CLAMP

main82715-47680

8271547690BRACKET,WIRING HARNESS CLAMP

main82715-47690

8271547A60BRACKET,WIRING HARNESS CLAMP

main82715-47A60

8272920040

main82729-20040

9046814043

main90468-14043

9046815007

main90468-15007

9155180616

main91551-80616

9155180835

main91551-80835

9155381014

main91553-81014

9167380616

main91673-80616

9167480616

main91674-80616

17 parts on this diagram · 10 diagrams in section
