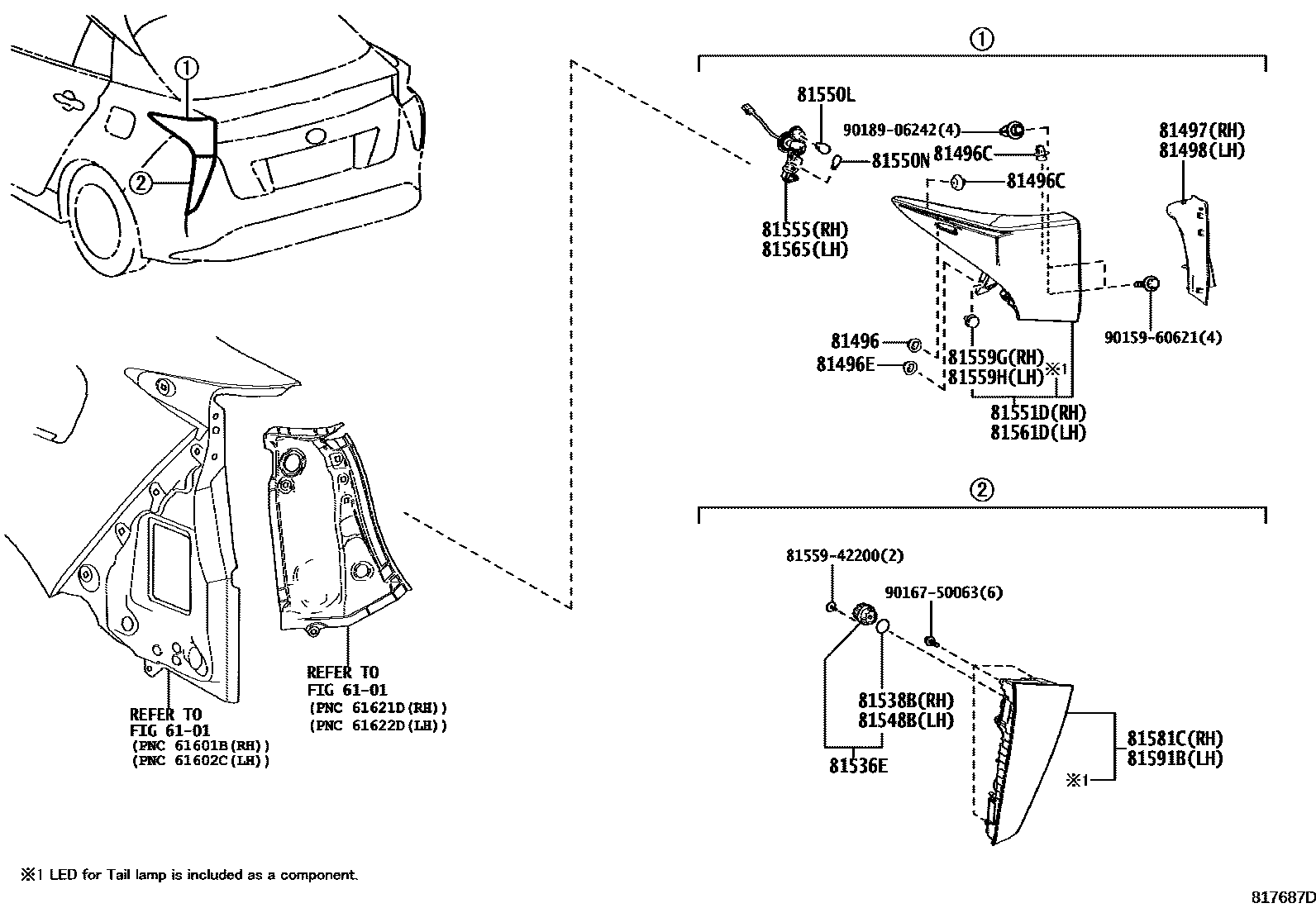

REAR COMBINATION LAMP
6101
81496GUIDE, REAR COMBINATION LAMP
81496CGUIDE, REAR COMBINATION LAMP, NO.2
YELLOW
WHITE
81496EGUIDE, REAR COMBINATION LAMP, NO.3
81536ELED, STOP LAMP
81538BGASKET, REAR COMBINATION LAMP, NO.3 RH
81548BGASKET, REAR COMBINATION LAMP, NO.3 LH
81550LBULB, REAR TURN SIGNAL LAMP
12V 21W,AMBER
81550NBULB, BACK UP LAMP
12V 16W
81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH
81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH
8155942200MOULDING, REAR COMBINATION LAMP, RH
main81559-42200
9015960621
main90159-60621
9016750063
main90167-50063
9018906242
main90189-06242
23 parts on this diagram · 2 diagrams in section
