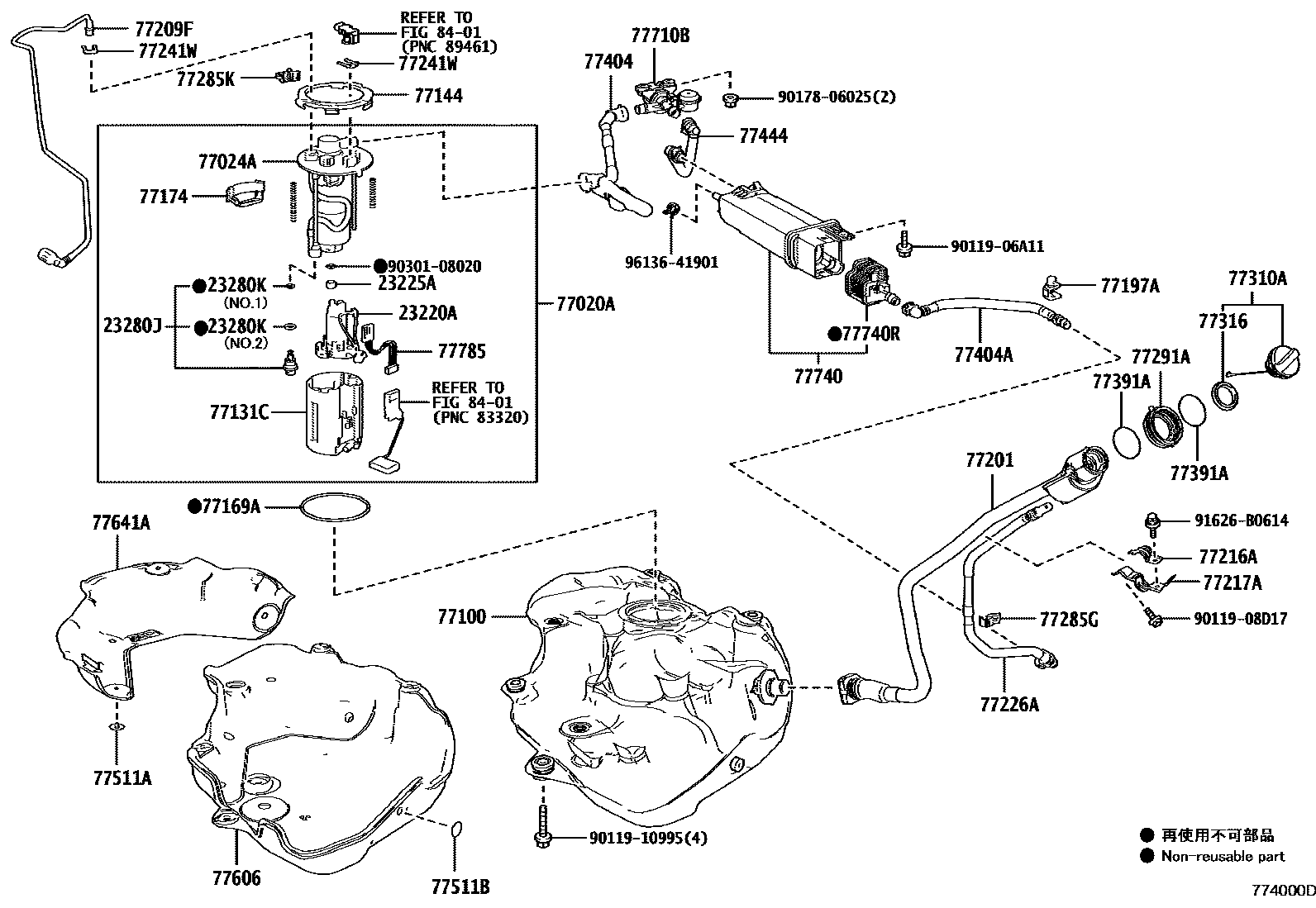

FUEL TANK & TUBE
23220APUMP ASSY, FUEL W/FILTER
23225ASPACER, FUEL PUMP
23280JREGULATOR ASSY, FUEL PRESSURE
23280KRING, O(FOR FUEL PRESSURE REGULATOR)
NO.1:REFER ILLUST.
NO.2:REFER ILLUST.
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77024APLATE SUB-ASSY, FUEL SUCTION
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77174SUPPORT, FUEL SUCTION, NO.1
77197ACLAMP, EVAPORATION VENT TUBE, NO.2
77201PIPE SUB-ASSY, FUEL TANK INLET
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1
77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2
77226ATUBE, FUEL TANK BREATHER, NO.6
77285GCLAMP, FUEL TUBE, NO.1
77285KCLAMP, FUEL TUBE, NO.1
77291ASHIELD, FUEL TANK FILLER PIPE
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77391ARING, FUEL INLET BOX
77404HOSE SUB-ASSY, FUEL TANK VENT
77404AHOSE SUB-ASSY, FUEL TANK VENT
77511ABRACKET, FUEL TANK
77511BBRACKET, FUEL TANK
77710BVALVE ASSY, FUEL TANK SOLENOID MAIN
77740CANISTER ASSY, CHARCOAL
77740RPUMP SUB-ASSY, LEAK DETECTION
8401
9011906A11
main90119-06A11
9011908D17
main90119-08D17
9011910995
main90119-10995
9017806025
main90178-06025
9030108020
main90301-08020
91626B0614
main91626-B0614
9613641901
main96136-41901
43 parts on this diagram · 6 diagrams in section
