REAR MOULDING

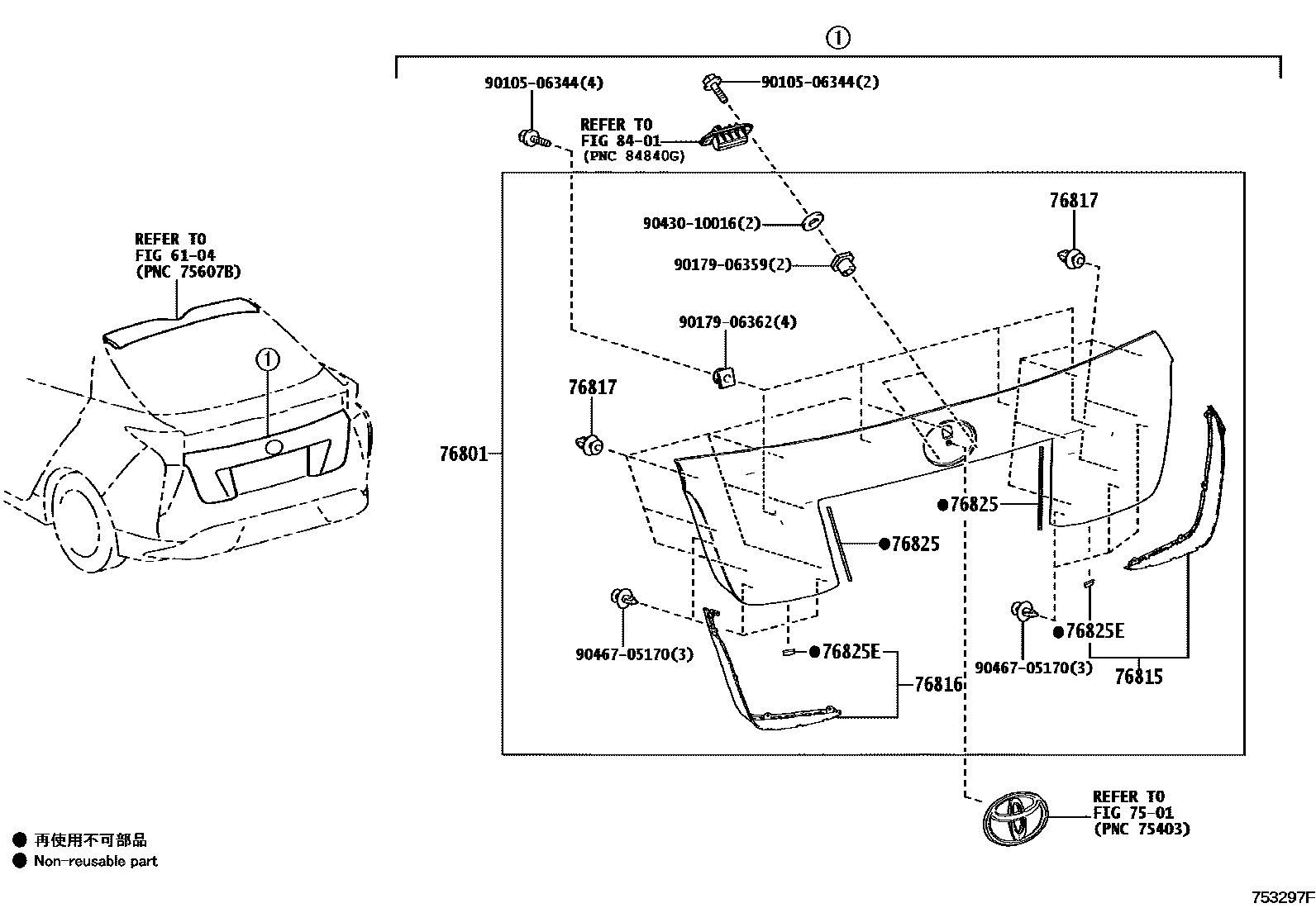

Parts diagram

6104

7501

76801GARNISH SUB-ASSY, BACK DOOR, OUTSIDE

main76801-47110-A0i201511-201812

SUPER WHITE 2,040

main76801-47110-A1i201511-201812

WHITE PEARL CS.,070

main76801-47110-B0i201511-201812

SILVER ME.,1F7

main76801-47110-B1i201511-201812

GRAY ME.,1G3

main76801-47110-C0i201511-201812

ATTITUDE BLACK MC.,218

main76801-47110-D0i201511-201812

EMOTIONAL RED,3T7

main76801-47110-E0i201511-201812

STEEL BLONDE,4X1

main76801-47110-G0i201511-201812

THERMO-TECT LIME GREEN,6W7

main76801-47110-H0i201511-201812

FROSTY GREEN MC.,781

main76801-47110-J0i201511-201812

DK.BLUE M.M.,8W7

main76801-47170-A0i201812

SUPER WHITE 2,040

main76801-47170-A1i201812-202007

WHITE PEARL CS.,070

main76801-47170-A2i202007

PLATINUM WHITE PEARL MC.,089

main76801-47170-B0i201812

SILVER ME.,1F7 ,2WZ

main76801-47170-B1i201812

GRAY ME.,1G3

main76801-47170-C0i201812

ATTITUDE BLACK MC.,218

main76801-47170-C2i202106

BLACKISH AGEHA GF.,221

main76801-47170-D0i201812

EMOTIONAL RED 2,3U5

main76801-47170-H0i201812

FROSTY GREEN MC.,781

main76801-47170-J0i201812

BLUE ME.,8X7

76815MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER RH

main76815-47010i201511-201812

main76815-47030i201812

76816MOULDING, BACK DOOR OUTSIDE GARNISH, LOWER LH

main76816-47010i201511-201812

main76816-47030i201812

76817CLIP, BACK DOOR OUTSIDE GARNISH

main75867-33040×13i201511-201812

main90467-09206×11i201812

76825PROTECTOR, BACK DOOR OUTSIDE GARNISH

main76825-47010×2i201511-201812

76825EPROTECTOR, BACK DOOR OUTSIDE GARNISH, NO.2

main76822-47010×2i201511-201704

main76822-47011×2i201705-201812

8401

9010506344

main90105-06344

9017906359

main90179-06359

9017906362

main90179-06362

9043010016

main90430-10016

9046705170

main90467-05170

14 parts on this diagram · 2 diagrams in section
