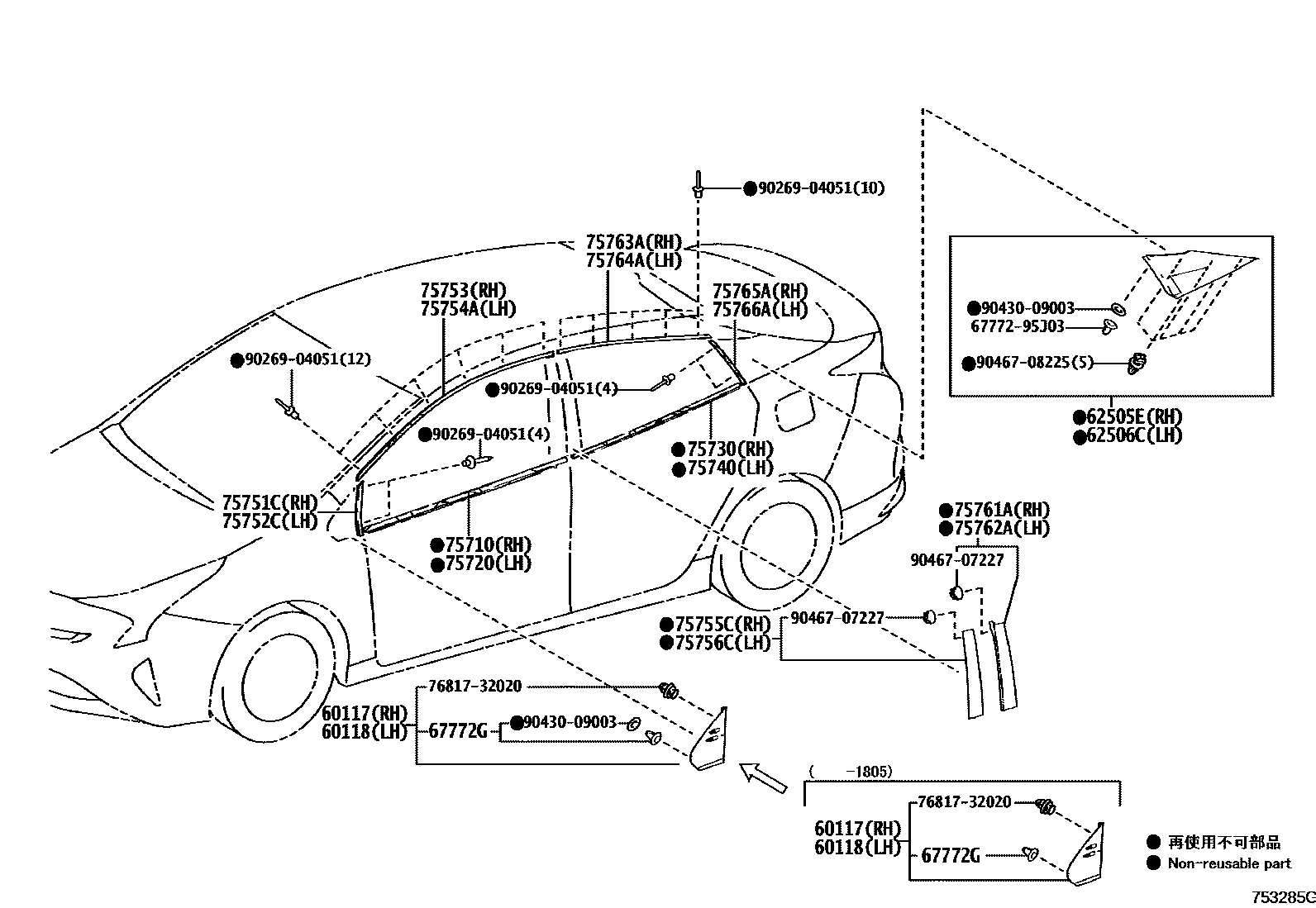

SIDE MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
BLIND SPOT MONITOR-WITH & WITH(REAR CROSS TRAFFIC ALERT)
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75751CMOULDING, FRONT DOOR WINDOW FRAME, FRONT RH
75752CMOULDING, FRONT DOOR WINDOW FRAME, FRONT LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765AMOULDING, REAR DOOR WINDOW FRAME, REAR RH
75766AMOULDING, REAR DOOR WINDOW FRAME, REAR LH
6777295J03WEATHERSTRIP, BACK DOOR TRIM, LH
main67772-95J03
7681732020CLIP, BACK DOOR OUTSIDE GARNISH
main76817-32020
9026904051
main90269-04051
9043009003
main90430-09003
9046707227
main90467-07227
9046708225
main90467-08225
27 parts on this diagram · 2 diagrams in section
