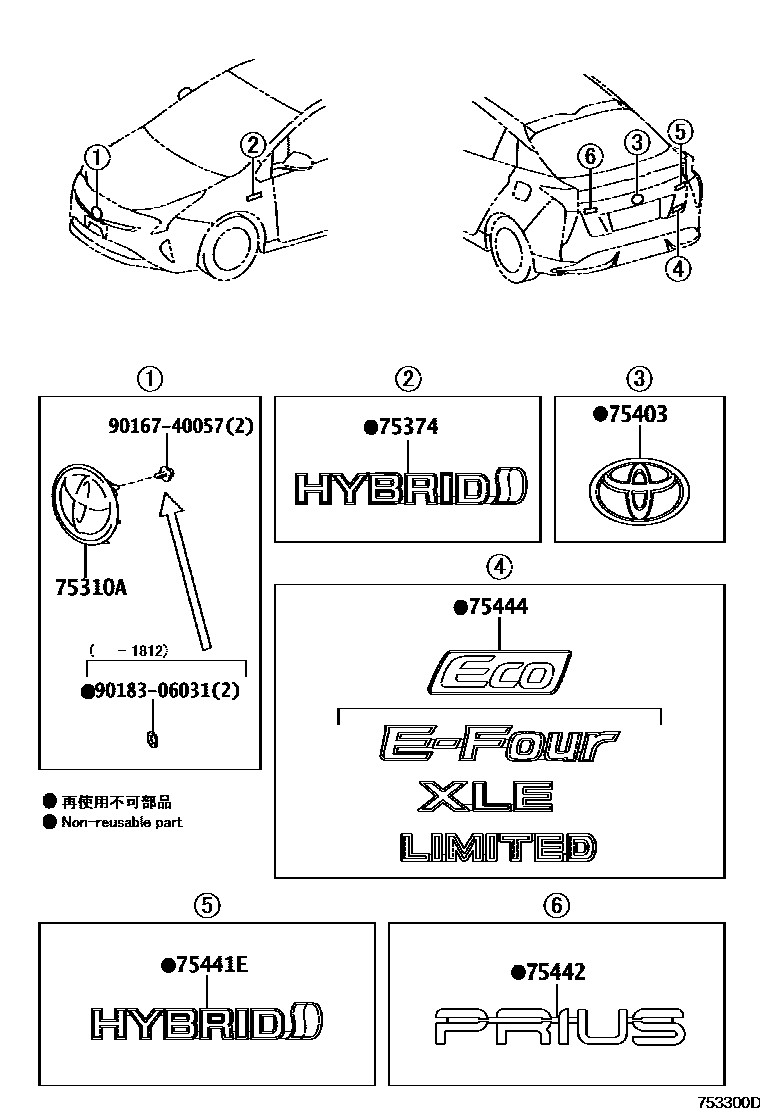

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

75310AEMBLEM ASSY, RADIATOR GRILLE

main53141-33140iZVW5#201812

main53141-47030iZVW51..H201511-201812

sub53141-47031

main75310-47060iZVW5#..B,E,G201511-201711

75374EMBLEM, SIDE PANEL

main75374-47140iZVW5#201511-201812

RH

main75374-47150iZVW5#201511-201812

LH

75403ORNAMENT SUB-ASSY, BACK DOOR

main75403-48010iZVW5#201511-201812

75441EPLATE, BACK DOOR NAME, NO.1

main75441-47130iZVW5#201511-201812

HYBRID S

main75441-47220iZVW5#201812

HYBRID S

75442PLATE, LUGGAGE COMPARTMENT DOOR NAME, NO.2

main75442-47130iZVW5#201511-201812

PRIUS

main75442-47200iZVW5#201812

PRIUS

75444PLATE, LUGGAGE COMPARTMENT DOOR, NO.4

main75444-47040iZVW51..B201511-201812

ECO

main75444-47080iZVW5#..G,H201812

XLE

main75444-47120iZVW51..B201812

ECO

9016740057

main90167-40057

9018306031

main90183-06031

8 parts on this diagram · 1 diagram in section
