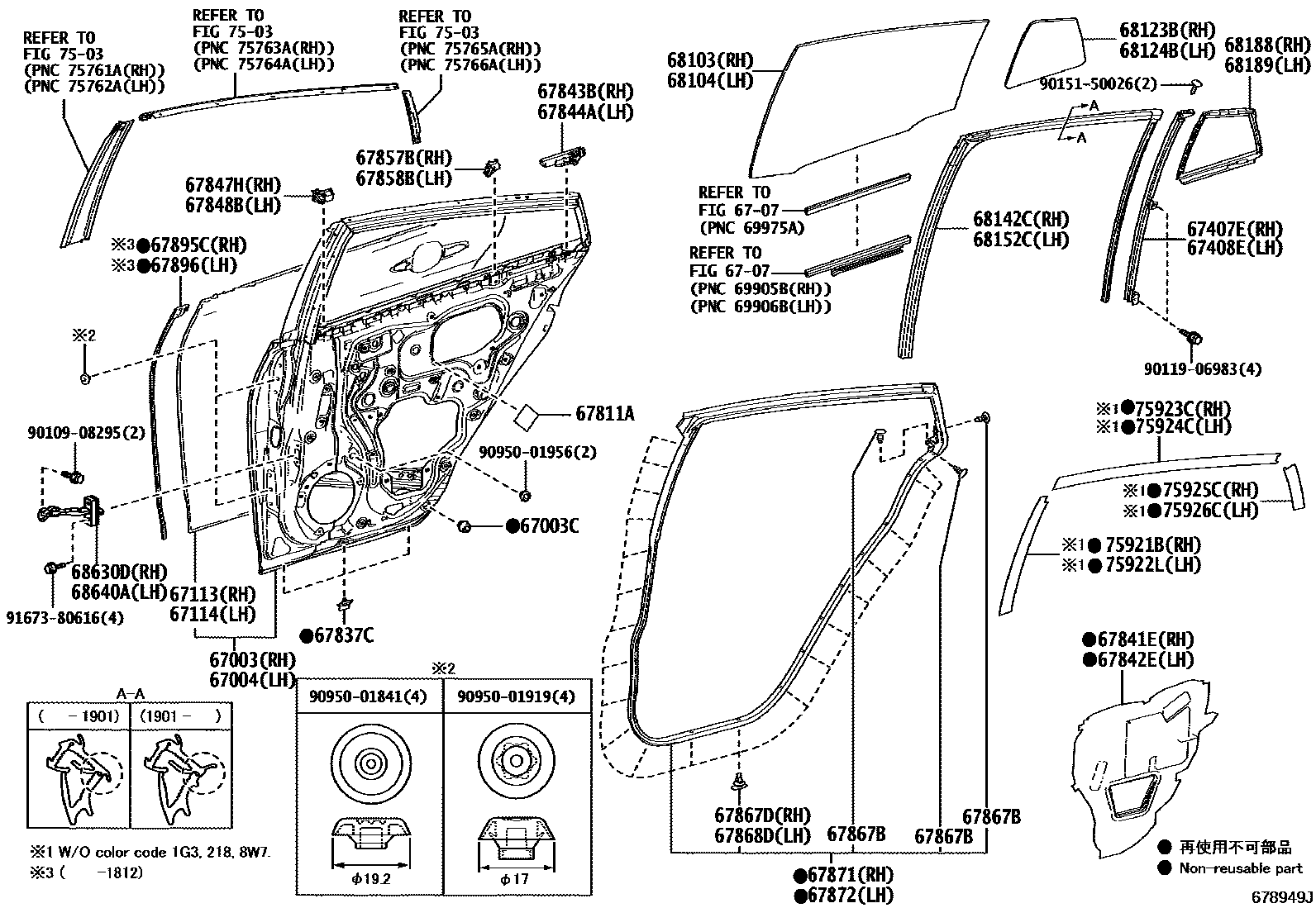

REAR DOOR PANEL & GLASS
67003PANEL SUB-ASSY, REAR DOOR, RH
REFER TO PNC 68142C
67003CCUSHION, REAR DOOR PANEL
67004PANEL SUB-ASSY, REAR DOOR, LH
REFER TO PNC 68152C
6707
67113PANEL, REAR DOOR, OUTER RH
67114PANEL, REAR DOOR, OUTER LH
67407EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, RH
67408EBAR SUB-ASSY, REAR DOOR WINDOW DIVISION, LH
67837CSEAL, REAR DOOR DUST PROOF
67841ECOVER, REAR DOOR SERVICE HOLE, RH
MEXICO UPPER PACKAGE
KOREA UPPER PACKAGE
67842ECOVER, REAR DOOR SERVICE HOLE, LH
KOREA UPPER PACKAGE
MEXICO UPPER PACKAGE
67843BCOVER, REAR DOOR SERVICE HOLE, NO.2 RH
67844ACOVER, REAR DOOR SERVICE HOLE, NO.2 LH
67847HSEAL, REAR DOOR VENT, RH NO.2
67848BSEAL, REAR DOOR VENT, LH NO.2
67857BPROTECTOR, REAR DOOR PANEL, RH
67858BPROTECTOR, REAR DOOR PANEL, LH
67867BCLIP, DOOR WEATHERSTRIP(FOR REAR DOOR)
67867DRETAINER, REAR DOOR WEATHERSTRIP, RH
67868DRETAINER, REAR DOOR WEATHERSTRIP, LH
67895CWEATHERSTRIP, REAR DOOR, NO.3 RH
sub67895-47011
67896WEATHERSTRIP, REAR DOOR, NO.3 LH
sub67896-47011
68103GLASS SUB-ASSY, REAR DOOR, RH
68104GLASS SUB-ASSY, REAR DOOR, LH
68123BGLASS, REAR DOOR QUARTER WINDOW, RH
68124BGLASS, REAR DOOR QUARTER WINDOW, LH
68188WEATHERSTRIP, REAR DOOR QUARTER WINDOW, RH
68189WEATHERSTRIP, REAR DOOR QUARTER WINDOW, LH
68630DCHECK ASSY, REAR DOOR, RH
68640ACHECK ASSY, REAR DOOR, LH
7503
75921BTAPE, BLACK OUT, NO.1 RH
0 OR 1PIECE,REF.ILL.
75922LTAPE, BLACK OUT, NO.1 LH
0 OR 1PIECE,REF.ILL.
75923CTAPE, BLACK OUT, NO.2 RH
0 OR 1PIECE,REF.ILL.
75924CTAPE, BLACK OUT, NO.2 LH
0 OR 1PIECE,REF.ILL.
75925CTAPE, BLACK OUT, NO.3 RH
0 OR 1PIECE,REF.ILL.
75926CTAPE, BLACK OUT, NO.3 LH
0 OR 1PIECE,REF.ILL.
9010908295
main90109-08295
9011906983
main90119-06983
9015150026
main90151-50026
9095001841
main90950-01841
9095001919
main90950-01919
9095001956
main90950-01956
9167380616
main91673-80616
49 parts on this diagram · 3 diagrams in section
