DECK BOARD & DECK TRIM COVER

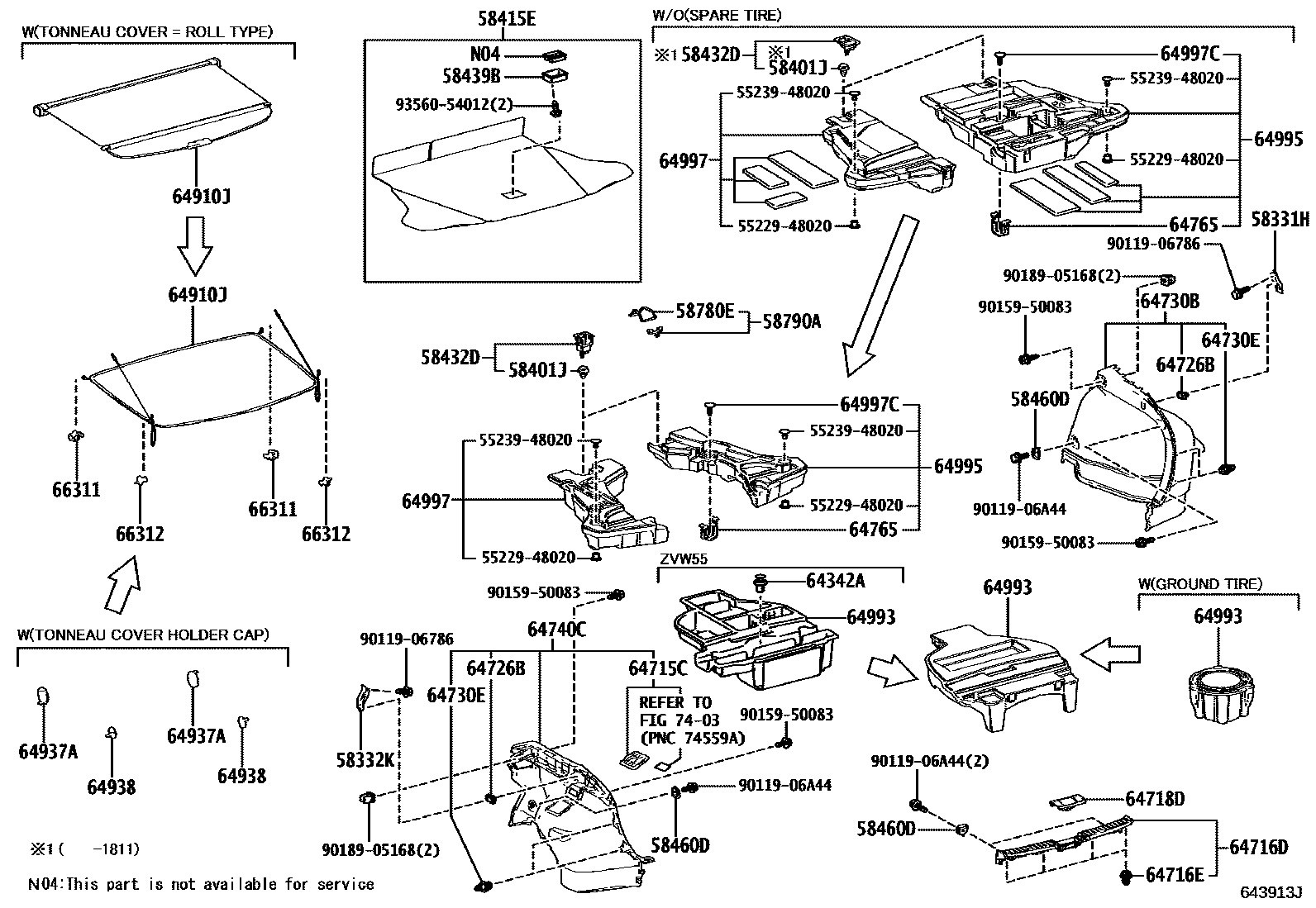

Parts diagram
58331HBRACKET, LUGGAGE COMPARTMENT TRIM, NO.1
main58337-47020i201511-201812
58332KBRACKET, LUGGAGE COMPARTMENT TRIM, NO.2
main58338-47010i201511-201812
58401JCLIP(FOR DECK BOAD)
main90467-10161i201511-201807
FOUR TOURING PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main90467-10161i201511-201807
SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main90467-10161i201511-201807
FOUR PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main90467-10188i201511-201812
58415EBOARD, REAR FLOOR, NO.1
main58415-47090-C2i201511-201812
SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
main58415-47090-C2i201511-201812
BLACK,TRIM1#,2#,4#
main58415-47090-C2i201812
BLACK,TRIM1#,2#
main58415-47090-C2i201511-201812
FOUR PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
main58415-47090-C2i201511-201812
FOUR TOURING PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
main58415-47100-C2i201511-201812
BLACK,TRIM1#,2#,4#
58432DRETAINER, DECK BOARD
main51962-47010i201511-201811
FOUR TOURING PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main51962-47010i201511-201811
SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main51962-47010i201511-201811
FOUR PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main51962-47020i201511-201812
58439BPROTECTOR, DECK BOARD, NO.1
main58477-28020i201511-201812
58460DSTRIKER ASSY, LUGGAGE HOLD BELT
main58460-33020i201511-201812
58780EBAND ASSY, TOOL BOX
main58781-52010i201511-201812
58790ACARRIER ASSY, JACK
main58790-52020i201511-201812
64342ACLIP
main90467-07215i201812
64715CCOVER, DECK SIDE TRIM, LH
main64715-47070-C0i201511-201801
BLACK,TRIM1#,2#,4#
sub64715-47070
main64715-47070-C1i201801-202011
BLACK,TRIM1#,2#,4#
sub64715-47070
main64715-47070-C1i201801-202011
BLACK,TRIM1#,2#
sub64715-47070
main64718-47100i202011
64716DCOVER, DECK TRIM, REAR
main64716-47110-C0i201511-201812
FOUR PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
main64716-47110-C0i201511-201812
FOUR TOURING PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
main64716-47110-C0i201511-201812
SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
main64716-47110-C0i201511-201812
BLACK,TRIM1#,2#,4#
main64716-47110-C0i201812
BLACK,TRIM1#,2#
main64716-47120-C0i201511-201812
BLACK,TRIM1#,2#,4#
64716ECLIP(FOR DECK TRIM REAR COVER)
main90467-10161i201801-201812
main90467-10167i201511-201712
64718DCOVER, DECK TRIM SERVICE HOLE
main64718-47080-C0i201511-201812
BLACK,TRIM1#,2#,4#
main64718-47080-C0i201812
BLACK,TRIM1#,2#
64726BCLIP, DECK REAR TRIM
main65487-47010i201511-201812
64730BPANEL ASSY, DECK TRIM SIDE, RH
main64730-47090-C2i201511-201908
BLACK,TRIM1#,2#,4#
sub64730-47091
sub64733-47020
main64730-47090-C2i201511-201812
FOUR PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64730-47091
sub64733-47020
main64730-47090-C2i201511-201812
FOUR TOURING PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64730-47091
sub64733-47020
main64730-47090-C2i201511-201908
SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64730-47091
sub64733-47020
main64730-47090-C2i201812-201908
BLACK,TRIM1#,2#
sub64730-47091
sub64733-47020
main64730-47091-C2i201908-202011
BLACK,TRIM1#,2#
sub64730-47190
main64730-47091-C2i201908-202011
BLACK,TRIM1#,2#,4#
sub64730-47190
main64730-47091-C2i201908-202011
SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64730-47190
main64730-47190-C0i202011
BLACK,TRIM1#,2#,4#
main64730-47190-C0i202011
SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
main64730-47190-C0i202011
BLACK,TRIM1#,2#
main64730-47200-C0i202011
BLACK,TRIM1#,2#,4#
main64730-47220-C2i201511-201908
BLACK,TRIM1#,2#,4#
sub64730-47221
sub64733-47020
main64730-47221-C2i201908-202011
BLACK,TRIM1#,2#,4#
sub64730-47200
64730ECLIP(FOR DECK TRIM SIDE BOARD)
main90467-10161i201511-201812
64740CPANEL ASSY, DECK TRIM SIDE, LH
main64740-47230-C0i201511-201803
BLACK,TRIM1#,2#,4#
sub64740-47230
sub64740-47231
sub64733-47020
main64740-47230-C0i201511-201803
FOUR PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64740-47230
sub64740-47231
sub64733-47020
main64740-47230-C0i201511-201803
FOUR TOURING PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64740-47230
sub64740-47231
sub64733-47020
main64740-47230-C0i201511-201803
SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64740-47230
sub64740-47231
sub64733-47020
main64740-47230-C1i201803-201908
BLACK,TRIM1#,2#,4#
sub64740-47230
sub64740-47231
sub64733-47020
main64740-47230-C1i201803-201812
FOUR PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64740-47230
sub64740-47231
sub64733-47020
main64740-47230-C1i201803-201812
FOUR TOURING PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#
sub64740-47230
sub64740-47231
sub64733-47020
main64740-47230-C1i201803-201908
SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64740-47230
sub64740-47231
sub64733-47020
main64740-47230-C1i201812-201908
BLACK,TRIM1#,2#
sub64740-47230
sub64740-47231
sub64733-47020
main64740-47231-C1i201908-202011
SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
sub64740-47330
main64740-47231-C1i201908-202011
BLACK,TRIM1#,2#,4#
sub64740-47330
main64740-47231-C1i201908-202011
BLACK,TRIM1#,2#
sub64740-47330
main64740-47240-C0i201511-201803
BLACK,TRIM1#,2#,4#
sub64740-47240
sub64740-47241
sub64733-47020
main64740-47240-C1i201803-201908
BLACK,TRIM1#,2#,4#
sub64740-47240
sub64740-47241
sub64733-47020
main64740-47240-C1i201803-201812
BLACK,TRIM1#,2#
sub64740-47240
sub64740-47241
sub64733-47020
main64740-47241-C1i201908-202011
BLACK,TRIM1#,2#,4#
sub64740-47360
main64740-47280-C0i201812-201908
BLACK,TRIM1#,2#,4#
sub64740-47281
sub64733-47020
main64740-47281-C0i201908-202011
BLACK,TRIM1#,2#,4#
sub64740-47370
main64740-47330-C0i202011
BLACK,TRIM1#,2#,4#
main64740-47330-C0i202011
BLACK,TRIM1#,2#
main64740-47330-C0i202011
SPARE TIRE-WITHOUT(REPAIR KIT ONLY),BLACK,TRIM1#,2#,4#
main64740-47360-C0i202011
BLACK,TRIM1#,2#,4#
main64740-47370-C0i202011
BLACK,TRIM1#,2#,4#
64765BEZEL, JACK COVER, UPPER
main64766-47020i201511-201812
64910JCOVER ASSY, TONNEAU
main64910-47060-C0i201812
BLACK,TRIM1#,2#,4#
main64910-47070i201511-201812
64937ACAP, TONNEAU COVER HOLDER, NO.1
main64937-47020-C0i201711-201812
BLACK,TRIM1#,2#,4#
main64937-47020-C0i201812
BLACK,TRIM1#,2#
64938HOOK, TONNEAU COVER, A
main64938-47060-C0i201812
BLACK,TRIM1#,2#
main64938-47060-C0i201711-201812
BLACK,TRIM1#,2#,4#
64993BOX, DECK FLOOR, REAR
main64993-47090i201511-201812
main64993-47140i201812
64995BOX, DECK FLOOR, RH
main64995-47030i201511-201812
SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main64995-47030i201511-201812
FOUR PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main64995-47030i201511-201812
FOUR TOURING PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main64995-47040i201511-201812
main64995-47070i201812
64997BOX, DECK FLOOR, LH
main64997-47040i201511-201812
SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main64997-47040i201511-201812
FOUR PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main64997-47040i201511-201812
FOUR TOURING PACKAGE&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)
main64997-47050i201511-201812
main64997-47090i201812
64997CCLIP(FOR DECK FLOOR BOX)
main90467-07049-23i201610-201812
BLACK
sub90467-07049
main90467-07049-C0i201511-201610
BLACK
sub90467-07049
66311HOOK, ROPE
main66311-47030-C0i201511-201812
BLACK,TRIM1#,2#,4#
66312HOOK, ROPE, NO.2
main66312-47010-C0i201511-201812
BLACK,TRIM1#,2#,4#
7403
5522948020PLATE, DASH PANEL INSULATOR, NO.4
main55229-48020
5523948020SILENCER, STEERING COLUMN HOLE COVER
main55239-48020
9011906786
main90119-06786
9011906A44
main90119-06A44
9015950083
main90159-50083
9018905168
main90189-05168
9356054012
main93560-54012

36 parts on this diagram · 1 diagram in section
