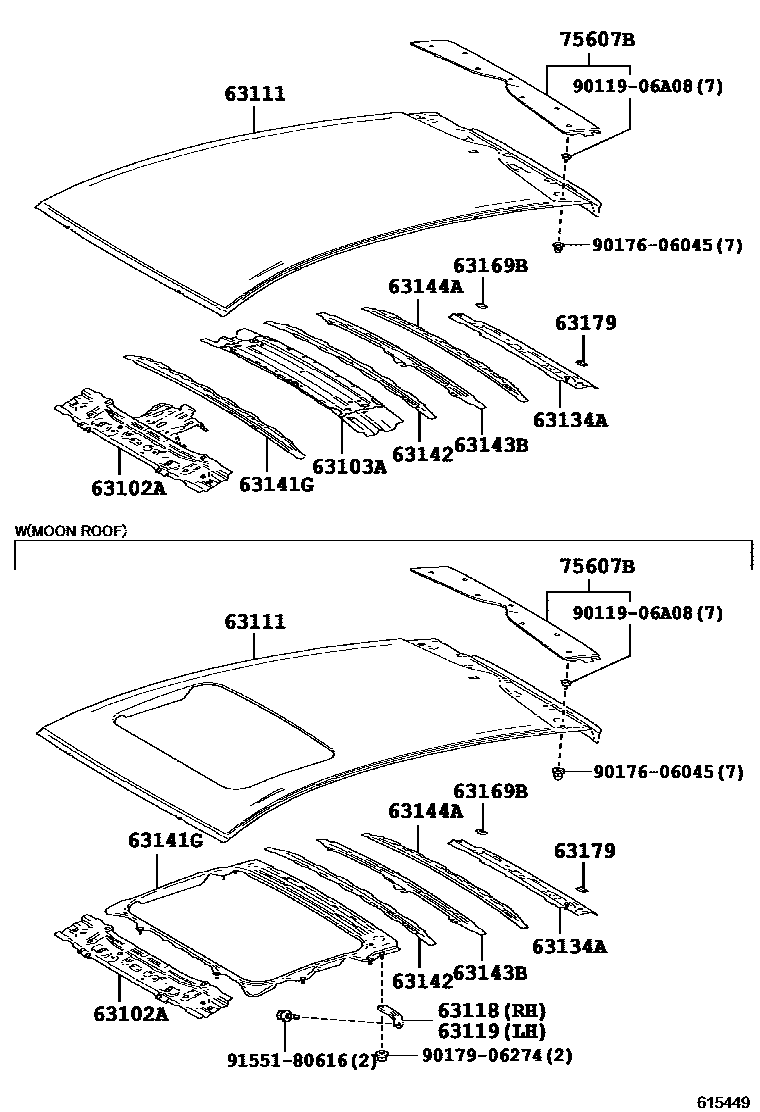

ROOF PANEL & BACK WINDOW GLASS
63102APANEL SUB-ASSY, WINDSHIELD HEADER
UPPER PACKAGE
MOON ROOF-WITH
KOREA UPPER PACKAGE
MEXICO UPPER PACKAGE
63111PANEL, ROOF
MOON ROOF-WITH
UPPER PACKAGE
KOREA UPPER PACKAGE
MEXICO UPPER PACKAGE
63118SUPPORT, ROOF PANEL, RH
UPPER PACKAGE
MOON ROOF-WITH
KOREA UPPER PACKAGE
MEXICO UPPER PACKAGE
63119SUPPORT, ROOF PANEL, LH
UPPER PACKAGE
MOON ROOF-WITH
KOREA UPPER PACKAGE
MEXICO UPPER PACKAGE
63134AFRAME, BACK DOOR OPENING, UPPER
63141GREINFORCEMENT, ROOF PANEL, NO.1
MOON ROOF-WITH
UPPER PACKAGE
KOREA UPPER PACKAGE
MEXICO UPPER PACKAGE
63142REINFORCEMENT, ROOF PANEL, NO.2
63143BREINFORCEMENT, ROOF PANEL, NO.3
63144AREINFORCEMENT, ROOF PANEL, NO.4
63169BPLATE, ROOF PANEL REINFORCEMENT, RH
63179PLATE, ROOF PANEL REINFORCEMENT, LH
75607BMOULDING SUB-ASSY, ROOF TOP
9011906A08
main90119-06A08
9017606045
main90176-06045
9017906274
main90179-06274
9155180616
main91551-80616
17 parts on this diagram · 2 diagrams in section
