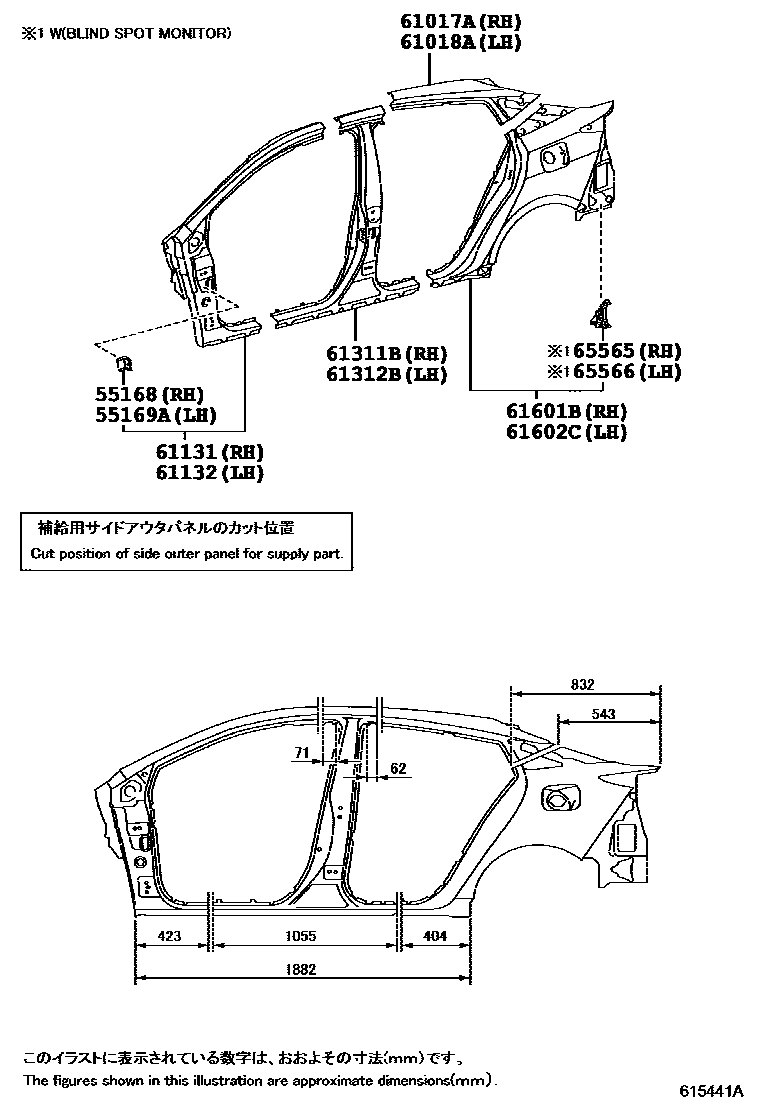

SIDE MEMBER

0001 1OUTER PANEL 0002 1INNER PANEL,RH 0003 1INNER PANEL,LH

55168BRACKET, FRONT FENDER MOUNTING, RH

main53879-68020iZVW5#201511-201812

55169ABRACKET, FRONT FENDER MOUNTING, LH

main53879-68020iZVW5#201511-201812

61017AMEMBER SUB-ASSY, SIDE, REAR RH

main61017-47010iZVW5#201511-201812

61018AMEMBER SUB-ASSY, SIDE, REAR LH

main61018-47010iZVW5#201511-201812

61131PILLAR, FRONT BODY, UPPER OUTER RH

main61013-47010iZVW5#201511-201710

sub61013-47011

main61013-47011iZVW5#201711-201805

main61013-47012iZVW5#201805-201809

sub61013-47021

main61013-47021iZVW5#201810-201908

sub61013-47022

sub90333-30008

main61013-47022iZVW5#201908

61132PILLAR, FRONT BODY, UPPER OUTER LH

main61014-47010iZVW5#201511-201710

sub61014-47011

main61014-47011iZVW5#201711-201908

sub61014-47012

sub61014-47020

sub90333-30008

main61014-47012iZVW5#201908

61311BPILLAR, CENTER BODY, OUTER RH

main61311-47050iZVW5#201511-201812

61312BPILLAR, CENTER BODY, OUTER LH

main61312-47040iZVW5#201511-201812

61601BPANEL SUB-ASSY, QUARTER, RH

main61601-47150iZVW5#201511-201812

61602CPANEL SUB-ASSY, QUARTER, LH

main61602-47160iZVW5#201511-201812

main61602-47180iZVW5#201812

65565PATCH, SIDE PANEL REAR END, RH

main65565-47010

main65565-47020

65566PATCH, SIDE PANEL REAR END, LH

main65565-47010

main65566-47010

12 parts on this diagram · 3 diagrams in section
