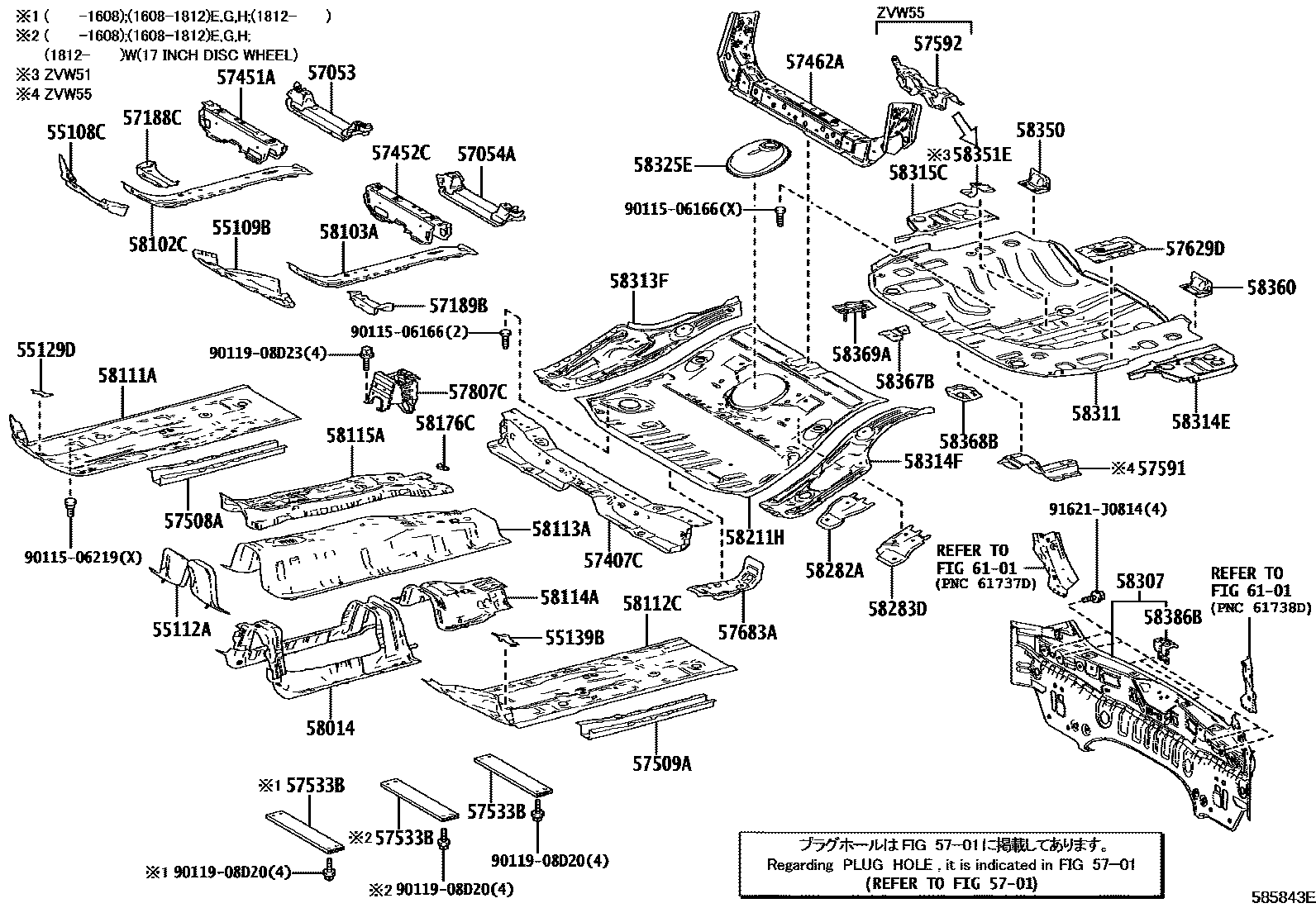

FLOOR PAN & LOWER BACK PANEL
55109BBRACE SUB-ASSY, DASH TO FRAME, LH
55112APANEL, DASH, NO.2
55139BCOVER, DASH PANEL HOLE, LH
5701
57188CREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, RH
57189BREINFORCEMENT, FRONT SIDE MEMBER EXTENSION, LH
57451AMEMBER, FRONT FLOOR CROSS, RH
57452CMEMBER, FRONT FLOOR CROSS, LH
57508AREINFORCEMENT SUB-ASSY, FRONT FLOOR, RH
57509AREINFORCEMENT SUB-ASSY, FRONT FLOOR, LH
57533BBRACE, FRONT FLOOR, CENTER
MOON ROOF-WITH
57591BRACKET, VOLTAGE CONVERTER MOUNT, LOWER FRONT
57592BRACKET, VOLTAGE CONVERTER MOUNT, LOWER REAR
57629DPLATE, REAR FLOOR SIDE MEMBER, LH
57683ABRACKET, FUEL TANK MOUNTING, NO.1
57807CREINFORCE SUB-ASSY, REAR FLOOR SIDE MEMBER, FRONT NO.2 RH
58014PANEL SUB-ASSY, FRONT FLOOR, REAR LOWER
58102CREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, RH
58103AREINFORCEMENT SUB-ASSY, FRONT FLOOR SIDE, LH
58113APANEL, FRONT FLOOR, CENTER
58115AREINFORCEMENT, FRONT FLOOR PANEL
58176CREINFORCEMENT, PARKING BRAKE BASE, NO.2
58211HPAN, CENTER FLOOR
58282ABASE, BELT ANCHOR TO FLOOR PAN, NO.3 RH
58283DBASE, BELT ANCHOR TO FLOOR PAN, NO.3 LH
58350REINFORCEMENT ASSY, REAR FLOOR PANEL, RH
58351EBRACKET, SPARE WHEEL CLAMP
58360REINFORCEMENT ASSY, REAR FLOOR PANEL, LH
58367BBRACKET, FUEL TUBE
58368BBRACKET, FUEL TUBE, NO.2
58369ABRACKET, FUEL TUBE, NO.3
58386BBRACKET, REAR BUMPER COVER, NO.2
6101
9011506166
main90115-06166
9011506219
main90115-06219
9011908D20
main90119-08D20
9011908D23
main90119-08D23
91621J0814
main91621-J0814
54 parts on this diagram · 2 diagrams in section
