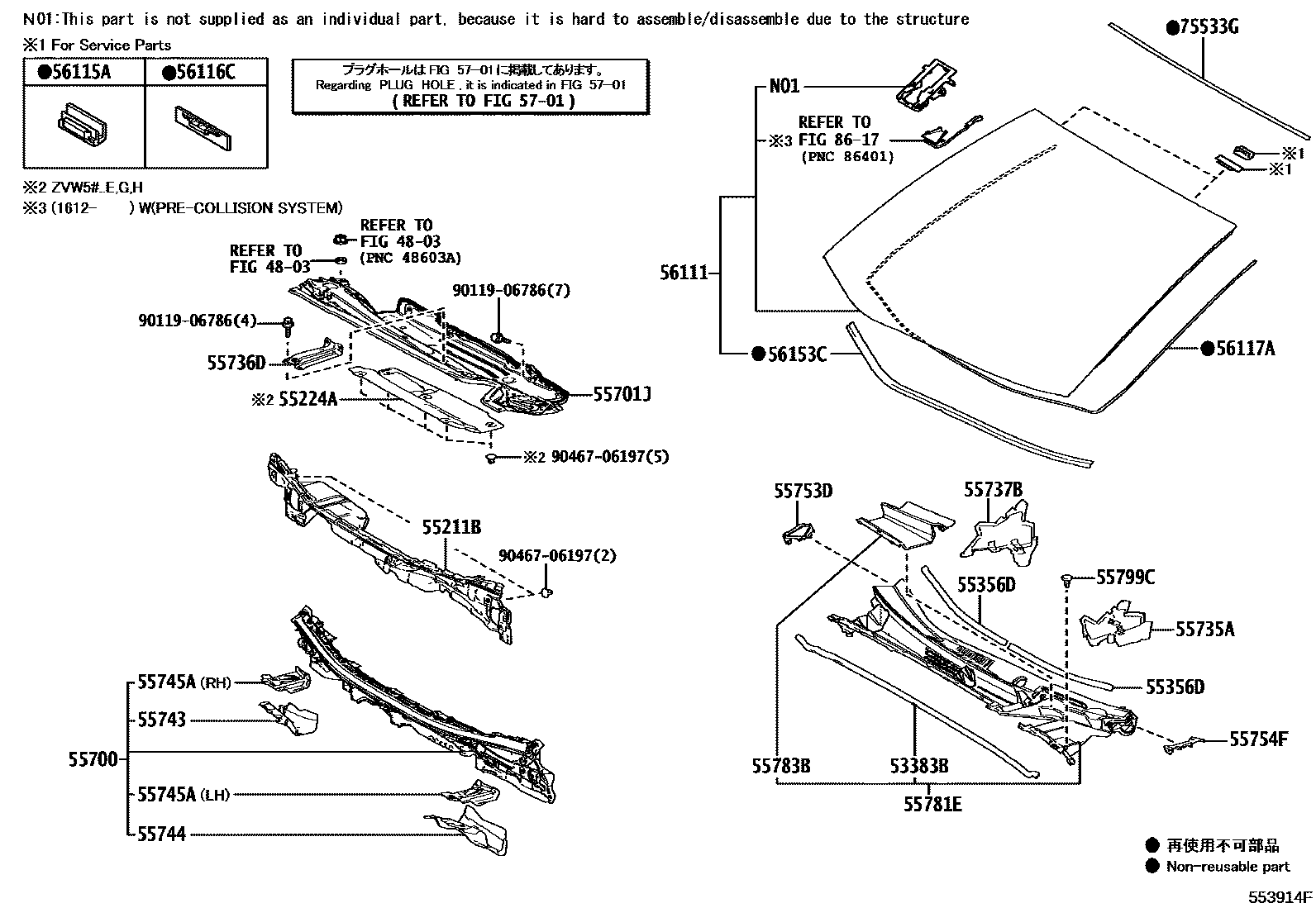

COWL PANEL & WINDSHIELD GLASS
4803
53383BSEAL, HOOD TO COWL TOP
55211BSILENCER, FRONT PANEL
55224AINSULATOR, DASH PANEL, OUTER NO.2
55356DCUSHION, INSTRUMENT PANEL, NO.2
55700PANEL ASSY, FRONT
55701JPANEL SUB-ASSY, COWL TOP, OUTER
55735APLATE, WATER GUARD, LH
55736DREINFORCEMENT, COWL BODY MOUNTING, LH
55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1
55743PANEL, COWL TOP OUTSIDE CORNER, RH
55744PANEL, COWL TOP OUTSIDE CORNER, LH
55745AREINFORCEMENT, COWL TOP, INNER
RH
LH
55753DSHIELD, COWL WATER EXTRACT, RH
55754FSHIELD, COWL WATER EXTRACT, LH
55783BLOUVER, COWL TOP VENTILATOR, CENTER NO.1
55799CCLIP, COWL TOP VENTILATOR LOUVER
56111GLASS, WINDSHIELD
FOUR PACKAGE&PRE-COLLISION SYSTEM-WITH&GARAGE OPENER-WITH&BLIND SPOT MONITOR-WITH& WITH(REAR CROSS TRAFFIC ALERT)
sub56101-4F927
sub86466-47021
sub56103-47929
sub56103-47920
56115ASTOPPER, WINDSHIELD GLASS, NO.1
56116CSTOPPER, WINDSHIELD GLASS, NO.2
56117ADAM, WINDOW GLASS ADHESIVE
*D,L=2947
*D,L=2947,HEAD UP DISPLAY-WITH
56153CMOULDING, FRONT WINDOW, INNER CENTER
5701
75533GMOULDING, WINDSHIELD, OUTSIDE
8617
9011906786
main90119-06786
9046706197
main90467-06197
28 parts on this diagram · 2 diagrams in section
