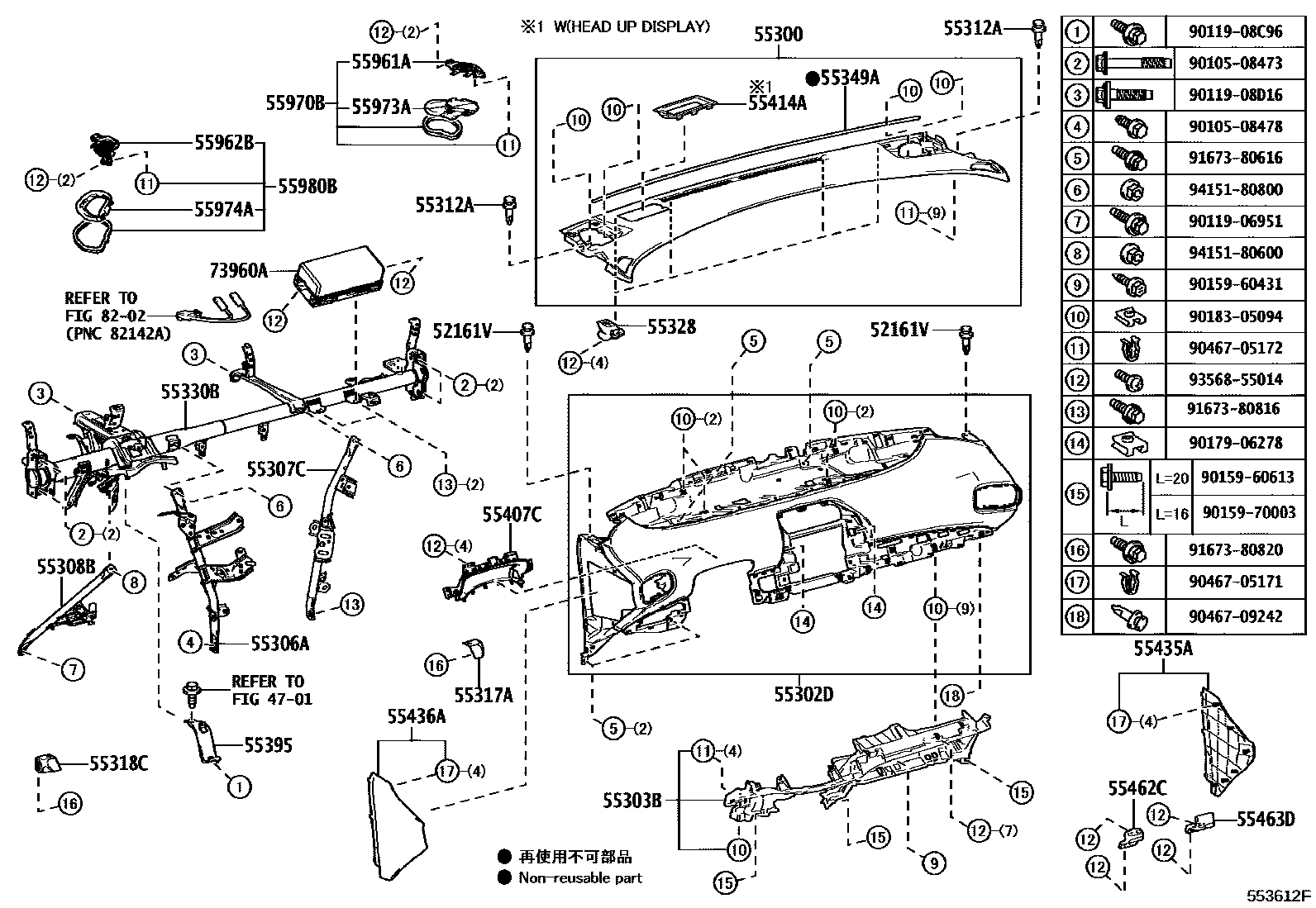

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1AVN(11.6INCHES) 0003 1DRIVER SIDE 0004 1DRIVER SIDE,W(AVN(11.6INCHES)0005 1CENTER 0006 1CENTER,W(AVN(11.6INCHES)) 0007 1PASSENGER SIDE 0008 1PASSENGER SIDE,W(AVN(11.6INCH

4701

52161VPIECE, INSTRUMENT PANEL

main52161-16010iZVW5#201511-201812

sub52161-0K040

55300PANEL ASSY, INSTRUMENT, UPPER

main55300-47140-B0iZVW5#201511-201609

NEUTRAL WARM GRAY,TRIM4#

main55300-47140-C0iZVW5#201511-201609

BLACK,TRIM1#,2#

main55300-47141-B0iZVW5#..B,E,G201609-201812

NEUTRAL WARM GRAY,TRIM4#

main55300-47141-C0iZVW5#201609-201812

BLACK,TRIM1#,2#

main55300-47141-C0iZVW51..B201812

BLACK,TRIM1#,2#,4#

55302DPANEL SUB-ASSY, INSTRUMENT, LOWER, NO.1

main55302-47130-B1iZVW5#201511-201609

COOL GRAY/BLACK,TRIM1#

main55302-47130-C1iZVW5#201511-201609

BLACK,TRIM2#

main55302-47130-E0iZVW5#201511-201609

NEUTRAL BEIGE/NEUTRALGRAY,TRIM4#

main55302-47131-B1iZVW5#201609-201812

COOL GRAY/BLACK,TRIM1#

main55302-47131-C1iZVW5#201609-201812

BLACK,TRIM2#

main55302-47131-E0iZVW5#..B,E,G201609-201812

NEUTRAL BEIGE/NEUTRALGRAY,TRIM4#

main55302-47131-E1iZVW5#..E,G,H201812

NEUTRAL BEIGE,TRIM4#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47080-B0iZVW5#201511-201609

NEUTRAL WARM GRAY,TRIM4#

main55303-47080-C0iZVW5#201511-201609

BLACK,TRIM1#,2#

main55303-47081-B0iZVW5#..B,E,G201609-201812

NEUTRAL WARM GRAY,TRIM4#

main55303-47081-C0iZVW5#201609-201812

BLACK,TRIM1#,2#

main55303-47081-C0iZVW51..B201812

BLACK,TRIM1#,2#,4#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47100iZVW5#201511-201812

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47050iZVW5#201511-201812

55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3

main55308-47040iZVW5#201511-201812

55312ACLIP, INSTRUMENT PANEL

main52161-16010iZVW5#201511-201812

sub52161-0K040

55317APANEL, INSTRUMENT SIDE, RH

main55317-47060iZVW5#201511-201812

55318CPANEL, INSTRUMENT SIDE, LH

main55318-47070iZVW5#201511-201812

55328PIN, INSTRUMENT PANEL, NO.1

main55328-47170iZVW5#201511-201812

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47161iZVW5#201511-201812

55349ACUSHION, INSTRUMENT PANEL

main55349-47030iZVW5#201511-201812

55395BRACKET, INSTRUMENT PANEL TO PEDAL

main55395-47010iZVW5#201511-201812

55407CCOVER SUB-ASSY, INSTRUMENT, LOWER

main55407-47010iZVW5#201511-201812

55414APANEL, INSTRUMENT CLUSTER FINISH, END

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-47050-B0iZVW5#201511-201812

NEUTRAL WARM GRAY,TRIM4#

main55435-47050-C0iZVW51..B201511-201812

BLACK,TRIM1#,2#

main55435-47050-C0iZVW51..B201812

BLACK,TRIM1#,2#,4#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-47050-B0iZVW5#201511-201812

NEUTRAL WARM GRAY,TRIM4#

main55436-47050-C0iZVW51..B201812

BLACK,TRIM1#,2#,4#

main55436-47050-C0iZVW5#201511-201812

BLACK,TRIM1#,2#

55462CBRACKET, KNEE PROTECTOR, NO.2

main55462-47050iZVW5#201511-201812

55463DBRACKET, KNEE PROTECTOR, NO.3

main55463-47070iZVW5#201511-201812

55961ANOZZLE, SIDE DEFROSTER, RH

main55961-47040-B0iZVW5#201511-201812

NEUTRAL WARM GRAY,TRIM4#

main55961-47040-C0iZVW5#201511-201812

BLACK,TRIM1#,2#

main55961-47040-C0iZVW51..B201812

BLACK,TRIM1#,2#,4#

55962BNOZZLE, SIDE DEFROSTER, LH

main55962-47020-B0iZVW5#201511-201812

NEUTRAL WARM GRAY,TRIM4#

main55962-47020-C0iZVW5#..E,G,H201812

BLACK,TRIM1#,2#,4#

main55962-47020-C0iZVW5#201511-201812

BLACK,TRIM1#,2#

55970BNOZZLE ASSY, SIDE DEFROSTER, RH

main55970-47010-B0iZVW5#201511-201812

NEUTRAL WARM GRAY,TRIM4#

main55970-47010-C0iZVW5#201511-201812

BLACK,TRIM1#,2#

main55970-47010-C0iZVW51..B201812

BLACK,TRIM1#,2#,4#

55973ADUCT, SIDE DEFROSTER NOZZLE, NO.3

main55973-47060iZVW5#201511-201812

55974ADUCT, SIDE DEFROSTER NOZZLE, NO.4

main55974-47020iZVW5#201511-201812

55980BNOZZLE ASSY, SIDE DEFROSTER, LH

main55980-47010-B0iZVW5#201511-201812

NEUTRAL WARM GRAY,TRIM4#

main55980-47010-C0iZVW51..B201812

BLACK,TRIM1#,2#,4#

main55980-47010-C0iZVW5#201511-201812

BLACK,TRIM1#,2#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47100iZVW5#201511-202004

sub73960-47130

main73960-47130iZVW5#202005

8202

9010508473

main90105-08473

9010508478

main90105-08478

9011906951

main90119-06951

9011908C96

main90119-08C96

9011908D16

main90119-08D16

9015960431

main90159-60431

9015960613

main90159-60613

9015970003

main90159-70003

9017906278

main90179-06278

9018305094

main90183-05094

9046705171

main90467-05171

9046705172

main90467-05172

9046709242

main90467-09242

9167380616

main91673-80616

9167380816

main91673-80816

9167380820

main91673-80820

9356855014

main93568-55014

9415180600

main94151-80600

9415180800

main94151-80800

48 parts on this diagram · 8 diagrams in section
