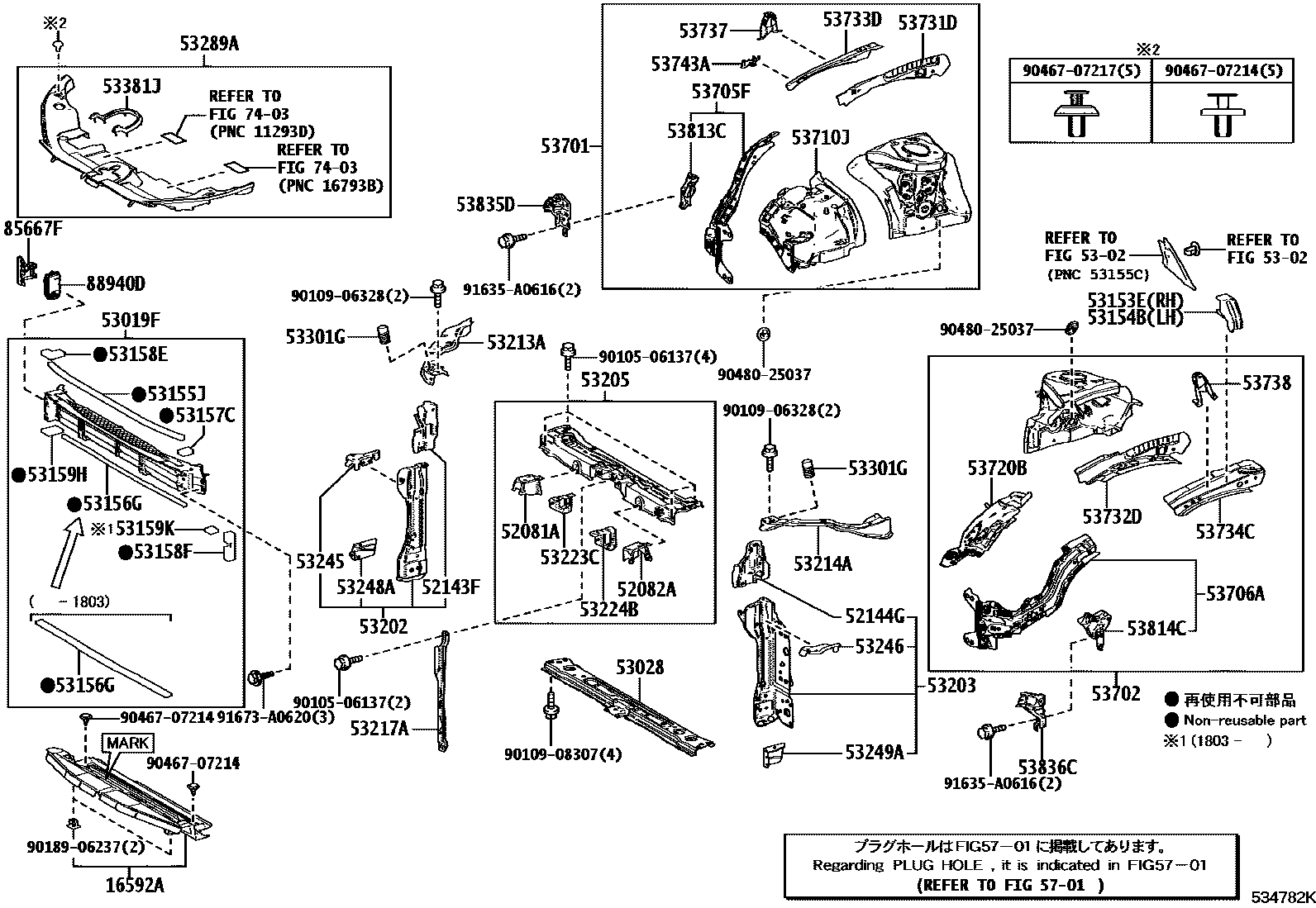

FRONT FENDER APRON & DASH PANEL
16592AGUIDE, RADIATOR AIR, NO.3
MARK 16592-37010
MARK 16592-37110
52081ASTAY SUB-ASSY, FRONT BUMPER, RH
52082ASTAY SUB-ASSY, FRONT BUMPER, LH
52143FBRACKET, FRONT BUMPER SIDE, RH
52144GBRACKET, FRONT BUMPER SIDE, LH
53019FSHUTTER SUB-ASSY, RADIATOR
5302
53028SUPPORT SUB-ASSY, RADIATOR, LOWER
53153EGUIDE, FRONT SIDE AIR
53154BGUIDE, FRONT SIDE AIR, NO.2
53156GSEAL, RADIATOR GRILLE, NO.2
53159HSEAL, RADIATOR GRILLE, NO.5
53159KSEAL, RADIATOR GRILLE, NO.5
53202SUPPORT SUB-ASSY, RADIATOR, RH
53203SUPPORT SUB-ASSY, RADIATOR, LH
53205SUPPORT SUB-ASSY, RADIATOR, UPPER
53213ASUPPORT, RADIATOR, UPPER RH
53214ASUPPORT, RADIATOR, UPPER LH
53223CBRACKET, RADIATOR GRILLE MOUNTING, RH
53224BBRACKET, RADIATOR GRILLE MOUNTING, LH
53245BRACKET, HEADLAMP, RH
53246BRACKET, HEADLAMP, LH
53248ABRACKET, RADIATOR SHUTTER, RH
53249ABRACKET, RADIATOR SHUTTER, LH
53289ACOVER, RADIATOR SUPPORT OPENING
sub53289-47070
sub53289-47071
sub53289-47072
PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH
sub53289-47072
53301GCUSHION, HOOD BUMPER
53381JSEAL, HOOD TO RADIATOR SUPPORT
sub53381-47051
PRE-COLLISION SYSTEM-WITH&CLEARANCE & BACK SONAR-WITH
sub53381-47051
53710JAPRON ASSY, FRONT FENDER, RH
53720BAPRON ASSY, FRONT FENDER, LH
53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH
53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH
53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH
53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH
53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH
53743AREINFORCEMENT, FRONT FENDER APRON, FRONT RH
53813CEXTENSION, FRONT FENDER, RH
53814CEXTENSION, FRONT FENDER, LH
53835DBRACKET, FRONT SIDE PANEL, RH
53836CBRACKET, FRONT SIDE PANEL, LH
5701
7403
9010506137
main90105-06137
9010906328
main90109-06328
9010908307
main90109-08307
9018906237
main90189-06237
9046707214
main90467-07214
9046707217
main90467-07217
9048025037
main90480-25037
91635A0616
main91635-A0616
91673A0620
main91673-A0620
62 parts on this diagram · 4 diagrams in section
