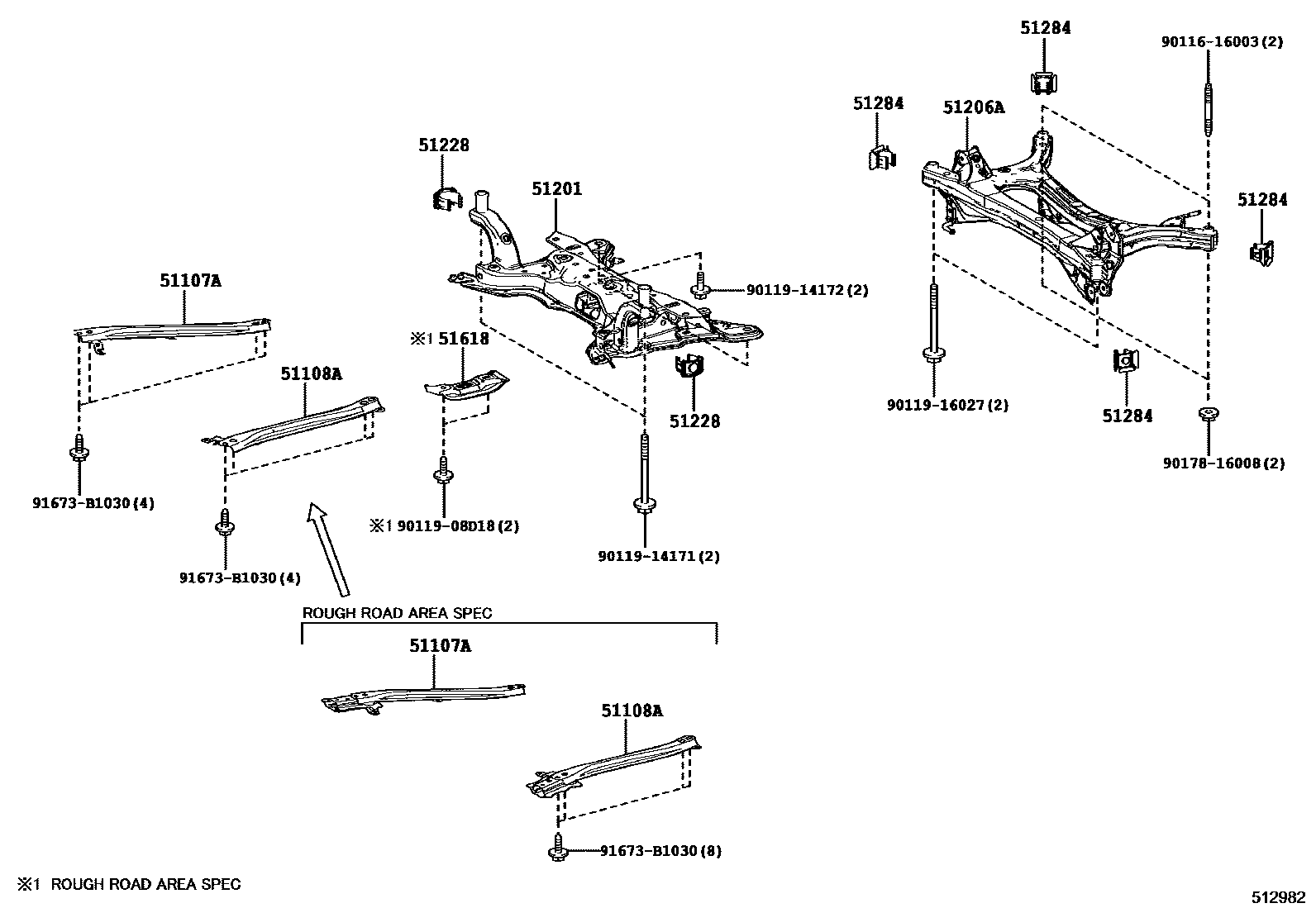

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION MEMBER 0002 1UNDER COVER

51107AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR RH

main51107-47020iZVW5#201511-201812

51108AREINFORCEMENT SUB-ASSY, SIDE RAIL, REAR LH

main51108-47020iZVW5#201511-201812

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51201-47070iZVW5#201511-201704

sub51201-47071

main51201-47071iZVW5#201705-201902

sub51201-47072

main51201-47072iZVW5#201903

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-47010iZVW5#201511-201603

sub51206-47011

main51206-47011iZVW5#201603-201702

sub51206-47012

main51206-47012iZVW5#201703-202011

sub51206-47013

main51206-47013iZVW51202012

main51206-47023iZVW55201812-202203

sub51206-47024

main51206-47024iZVW55202204-202207

sub51206-47025

main51206-47025iZVW55202208

51228PLATE, SUSPENSION MEMBER SET

main51228-47010iZVW5#201511-201812

51284COVER, REAR SUSPENSION MEMBER HOLE

main51284-47010iZVW5#201511-202208

51618GUARD, FRONT DIFFERENTIAL SUPPORT, LH

main51618-47010

9011616003

main90116-16003

9011908D18

main90119-08D18

9011914171

main90119-14171

9011914172

main90119-14172

9011916027

main90119-16027

9017816008

main90178-16008

91673B1030

main91673-B1030

14 parts on this diagram · 2 diagrams in section
