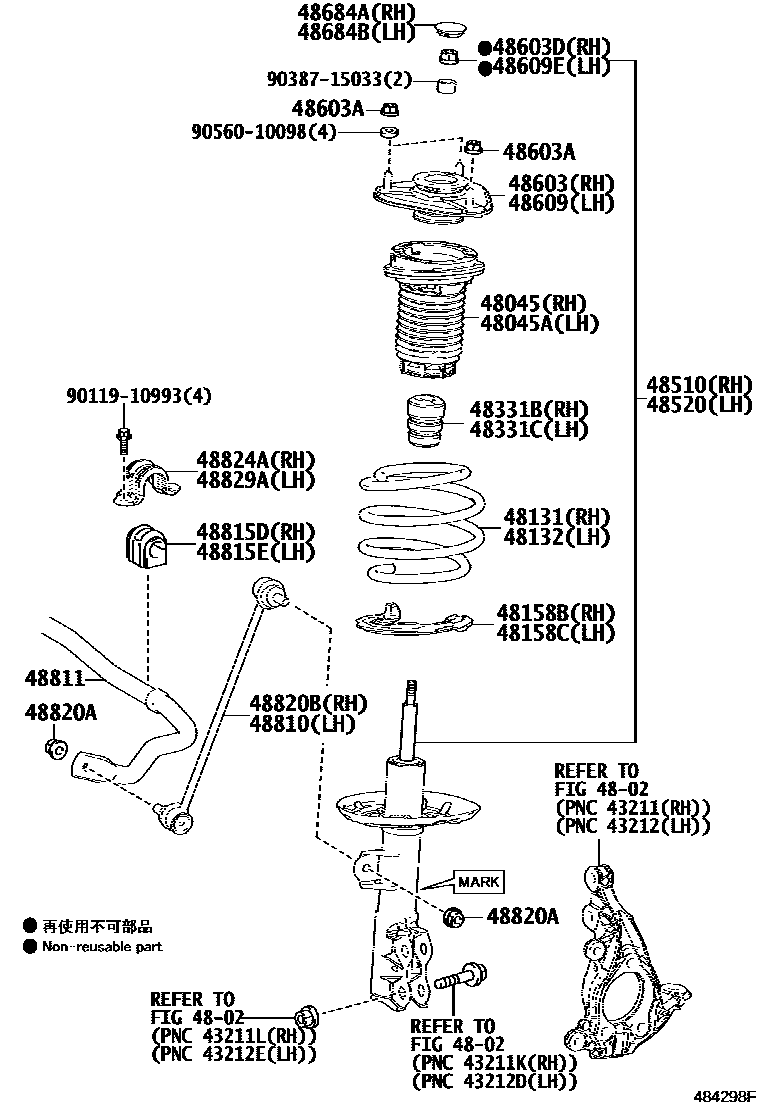

FRONT SPRING & SHOCK ABSORBER
4802
48131SPRING, FRONT COIL, RH
48132SPRING, FRONT COIL, LH
48158BINSULATOR, FRONT COIL SPRING, LOWER RH
48158CINSULATOR, FRONT COIL SPRING, LOWER LH
48510ABSORBER ASSY, SHOCK, FRONT RH
MARK 48510-47290,TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM
sub48510-80815
MARK 48510-47430,MOON ROOF-WITH
MARK 48510-47430
MARK 48510-47440
MARK 48510-47460
48520ABSORBER ASSY, SHOCK, FRONT LH
MARK 48520-47290,TIRE & DISC WHEEL-215/45R17,7J,ALUMINUM
sub48520-80492
MARK 48520-47430,MOON ROOF-WITH
MARK 48520-47430
MARK 48520-47440
MARK 48520-47460
48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH
48603ANUT(FOR FRONT SUSPENSION SUPPORT)
48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)
48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH
48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)
48684ACOVER, FRONT SUSPENSION SUPPORT DUST, RH
48684BCOVER, FRONT SUSPENSION SUPPORT DUST, LH
48810LINK ASSY, FRONT STABILIZER, LH
48811BAR, STABILIZER, FRONT
48820ANUT(FOR FRONT STABILIZER LINK)
48820BLINK ASSY, FRONT STABILIZER, RH
48824ABRACKET, FRONT STABILIZER, NO.1 RH
48829ABRACKET, FRONT STABILIZER, NO.1 LH
9011910993
main90119-10993
9038715033
main90387-15033
9056010098
main90560-10098
29 parts on this diagram · 2 diagrams in section
