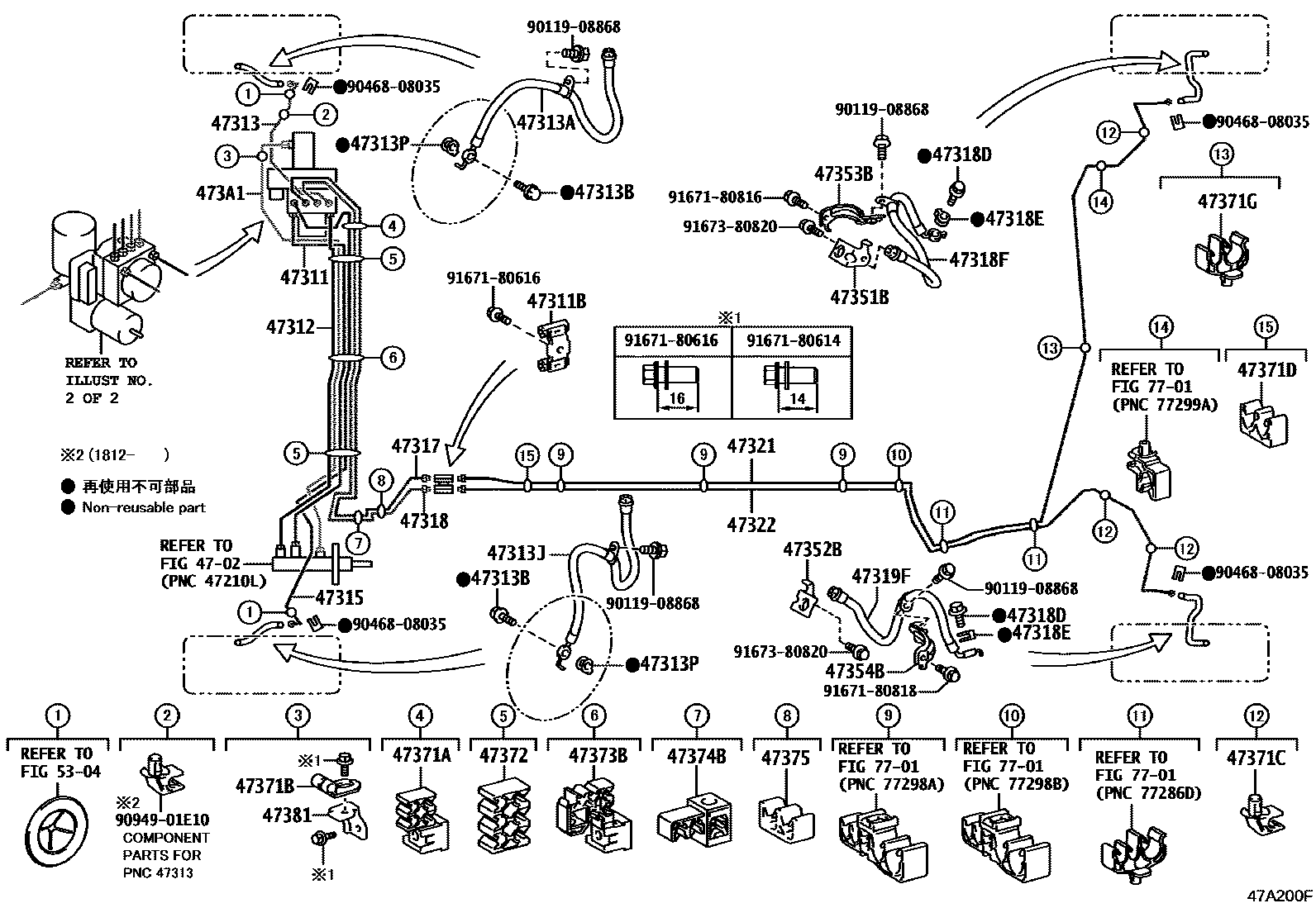

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE ACTUATOR & BOOSTER PUMP

4702

47311TUBE, FRONT BRAKE, NO.1

main47311-12D00iZVW5#201804-201812

main47311-47100iZVW5#201511-201804

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iZVW5#201511-201812

47312TUBE, FRONT BRAKE, NO.2

main47312-12830iZVW5#201804-201812

main47312-47080iZVW5#201511-201804

47313TUBE, FRONT BRAKE, NO.3

main47313-12A80iZVW5#201804-201812

main47313-47080iZVW5#201511-201804

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02H46iZVW5#201511-202211

sub90947-02K97

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058iZVW5#201511-201812

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-02H47iZVW5#201511-202211

sub90947-02K98

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021iZVW5#201511-201812

47315TUBE, FRONT BRAKE, NO.5

main47315-12670iZVW5#201804-201812

main47315-47070iZVW5#201511-201804

47317TUBE, FRONT BRAKE, NO.7

main47317-12650iZVW5#201804-201812

main47317-47070iZVW5#201511-201804

47318TUBE, FRONT BRAKE, NO.8

main47318-12780iZVW5#201804-201812

main47318-47060iZVW5#201511-201804

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058iZVW5#201511-201812

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021iZVW5#201511-201812

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02H48iZVW5#201511-201812

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02H48iZVW5#201511-201812

47321TUBE, REAR BRAKE, NO.1

main47321-47070iZVW5#201511-201612

sub47321-47071

main47321-47071iZVW5#201701-201812

47322TUBE, REAR BRAKE, NO.2

main47322-47070iZVW5#201511-201612

sub47322-47071

main47322-47071iZVW5#201701-201812

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-47030iZVW5#201511-201812

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-47030iZVW5#201511-201812

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-47040iZVW5#201511-201812

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-47040iZVW5#201511-201812

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01E32iZVW5#201511-201605

sub90949-01E51

main90949-01E51iZVW5#201606-201812

47371BCLAMP, BRAKE TUBE, NO.6

main90461-10854iZVW5#201511-201812

47371CCLAMP, BRAKE TUBE, NO.7

main90949-01E10iZVW51201511-201812

47371DCLAMP, BRAKE TUBE, NO.8

main90464-00904iZVW5#201511-201902

47371GCLAMP, BRAKE TUBE, NO.11

main77285-47110iZVW5#201511-201812

47372CLAMP, BRAKE TUBE, NO.2

main90949-01D99iZVW5#201511-201812

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E07iZVW5#201511-201605

sub90949-01E50

main90949-01E50iZVW5#201606-201812

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01E33iZVW5#201511-201812

47375CLAMP, BRAKE TUBE, NO.5

main90949-01D91iZVW5#201511-201812

47381BRACKET, BRAKE TUBE CLAMP NO.1

main47381-47070iZVW5#201511-201812

473A1TUBE, ACCUMULATOR TO BRAKE MASTER CYLINDER

main473A1-12020iZVW5#201804-201812

main473A1-47020iZVW5#201511-201804

5304

7701

9011908868

main90119-08868

9046808035

main90468-08035

9094901E10

main90949-01E10

9167180614

main91671-80614

9167180616

main91671-80616

9167180816

main91671-80816

9167180818

main91671-80818

9167380820

main91673-80820

43 parts on this diagram · 2 diagrams in section
