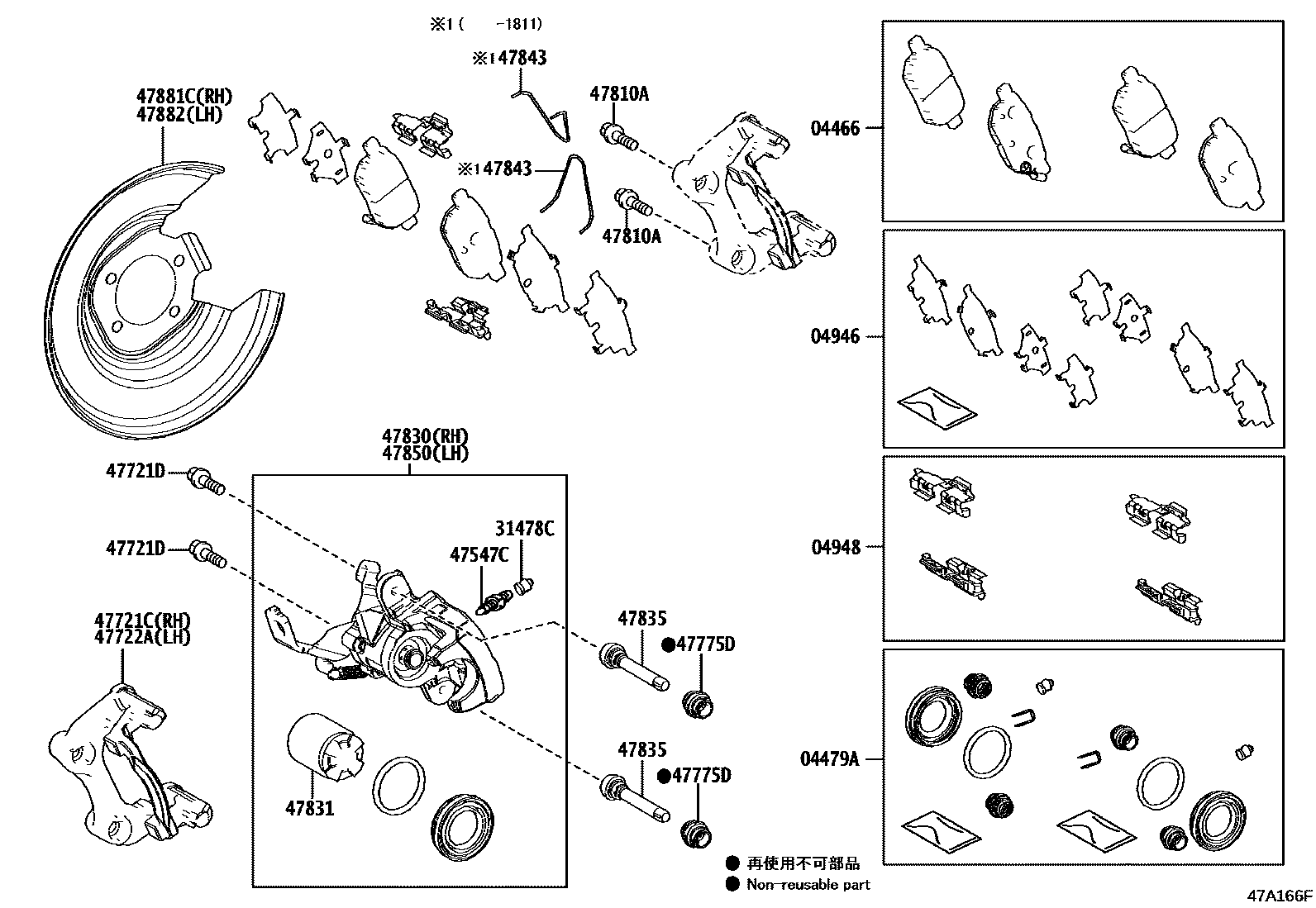

REAR DISC BRAKE CALIPER & DUST COVER

04466PAD KIT, DISC BRAKE, REAR

main04466-47100iZVW5#201511-201812

MARK AK NS254

sub04466-47101

main04466-47110iZVW5#201812

MARK NBK 478-XW5P

04479ACYLINDER KIT, DISC BRAKE, REAR

main04479-12230iZVW5#201511-201812

main04479-12260iZVW5#201812

04946SHIM KIT, ANTI SQUEAL(FOR REAR DISC BRAKE)

main04946-47070iZVW5#201511-201812

04948FITTING KIT, DISC BRAKE, REAR

main04948-12060iZVW5#201511-201812

31478CCAP, BLEEDER PLUG(FOR REAR DISC BRAKE)

main31478-52010iZVW5#201511-201812

47547CPLUG, BLEEDER(FOR REAR DISC BRAKE)

main47847-52050iZVW5#201511-201812

47721CMOUNTING, REAR DISC BRAKE CYLINDER, RH

main47821-47110iZVW5#201511-201812

47721DBOLT(FOR REAR DISC BRAKE CYLINDER MOUTING)

main90015-AA102iZVW5#201511-201812

47722AMOUNTING, REAR DISC BRAKE CYLINDER, LH

main47821-47110iZVW5#201511-201812

47775DBOOT, BUSH DUST(FOR REAR DISC BRAKE)

main47875-12150iZVW5#201511-201812

47810ABOLT, HEXAGON(FOR REAR CALIPER)

main90105-12174iZVW5#201511-201812

47830CYLINDER ASSY, DISC BRAKE, REAR RH

main47830-47110iZVW5#201511-201705

sub47830-47111

sub46423-47020

main47830-47111iZVW5#201705-201812

47831PISTON, REAR DISC BRAKE

main47831-52050iZVW5#201511-201812

47835PIN, REAR DISC BRAKE PAD GUIDE

main47835-12150iZVW5#201705-201812

main47835-47110iZVW5#201511-201705

sub47835-12150

47843CLIP, REAR DISC BRAKE PIN HOLD

main47843-47040iZVW5#201511-201811

47850CYLINDER ASSY, DISC BRAKE, REAR LH

main47850-47110iZVW5#201511-201705

sub47850-47111

sub46423-47020

main47850-47111iZVW5#201705-201812

47881CCOVER, DISC BRAKE DUST, REAR RH

main47881-47010iZVW5#201511-201812

47882COVER, DISC BRAKE DUST, REAR LH

main47882-47010iZVW5#201511-201812

18 parts on this diagram · 1 diagram in section
